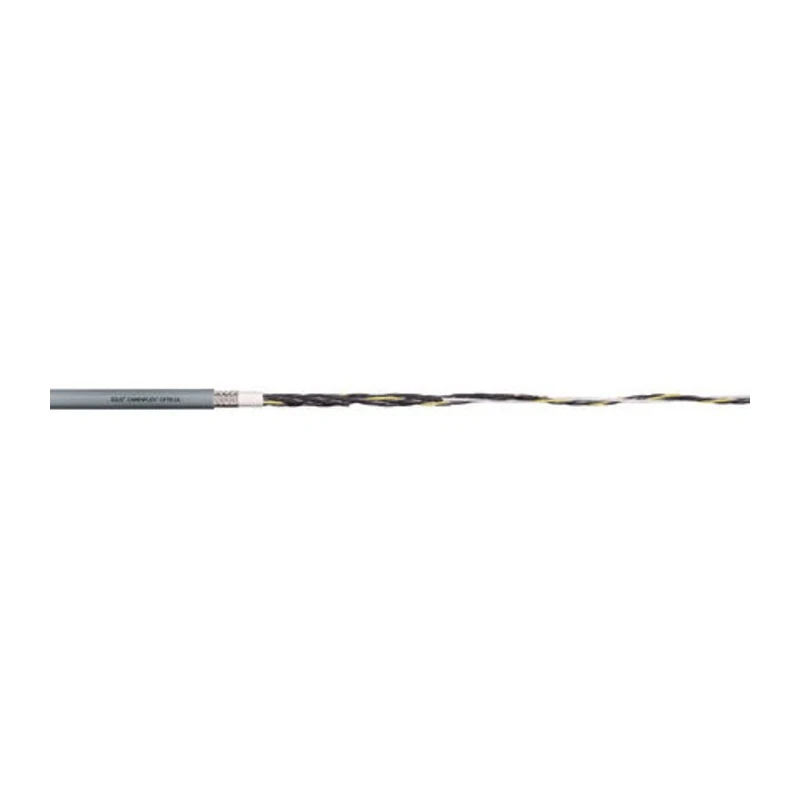

Igus Chainflex® PUR Control Cable, 5 Cores, 0.5mm² 20 AWG, Screened, 25 m, Grey Thermoplastic Elastomer Sheath CF78.UL.05.05

Free Delivery in India | Lowest Global Shipping Charges

Igus Chainflex® PUR Control Cable, 5 Cores, 0.5mm² 20 AWG, Screened, 25 m, Grey Thermoplastic Elastomer Sheath CF78.UL.05.05

Name: Igus Chainflex® PUR Control Cable, 5 Cores, 0.5mm² 20 AWG, Screened, 25 m, Grey Thermoplastic Elastomer Sheath CF78.UL.05.05
Brand: IGUS
SKU: 417202
Price: 410.06 USD
Availability: InStock



Category Control Cable Brand IGUS Condition New

Specifications

Country of Origin	Germany
Voltage	300, 500V
Brand	Igus
Model	CF78.UL.05.05
Cable Length	25m
Series	chainflex CF78.UL
Outside diameter	8.5mm
Maximum Operating Temperature	80°C
Number Of Cores	5
Conductor Material	Bare Copper
Minimum Operating Temperature	-35°C
Jacket Material	Thermoplastic Elastomer
Standards/Approvals	CE, EN
Jacket Colour	Grey
Fire Behaviour	Flame Retardant, Halogen Free
American Wire Gauge	20AWG
Screened/Unscreened	Screened
Conductor Type	Stranded
Cable CSA	0.5mm²
Core insulation	mechanically high-quality TPE mixture

Key Features

Constructed with bare copper conductors for excellent electrical conductivity.
Durable thermoplastic elastomer grey jacket offers oil and coolant resistance.
Screened and armoured for enhanced protection and interference shielding.
Flame-retardant and halogen free materials ensure safety and compliance with IEC 332-1 and CEI 20-35 standards.
Suitable for flexible and gliding travel distances up to 100 meters.
Operates within temperature range from -35°C to 80°C.
Conductor type is stranded, complying with CE and EN standards.
Cable length is 25 meters with an outside diameter of 8.5 mm.

Product Description

Igus CF78.UL.05.05 Control Cable is a high-performance industrial component tailored for control and power applications. Featuring 5 cores with stranded bare copper conductors measuring 0.5mm² (20 AWG), this control cable provides reliable electrical conductivity and interference resistance due to its screened and armoured design.

The thermoplastic elastomer grey jacket is resistant to oils, coolants, and mechanical stress, ensuring durability in demanding environments. The cable is flame-retardant and halogen free according to IEC 332-1 and CEI 20-35 standards, contributing to safer installations in industrial and automation systems.

Designed for use in freely suspended and gliding travel distances of up to 100 meters, it operates effectively in temperature conditions ranging from -35°C minimum to a maximum of 80°C. The cable supports voltage levels of 300V and 500V, making it suitable for various electrical power and signal control tasks.

This product conforms to the CE and EN standards and is made in Germany, reflecting high quality and reliability. Its mechanically high-quality TPE core insulation further enhances performance by protecting the conductors under rigorous conditions.

Common applications include industrial automation, machinery wiring, control panels, and environments where flexible, oil-resistant, and flame-retardant cables are essential. The 25-meter length and 8.5mm outside diameter offer versatility for installation in numerous industrial and commercial applications.

Constructed with bare copper conductors for excellent electrical conductivity. Durable thermoplastic elastomer grey jacket offers oil and coolant resistance. Screened and armoured for enhanced protection and interference shielding.

Flame-retardant and halogen free materials ensure safety and compliance with IEC 332-1 and CEI 20-35 standards. Suitable for flexible and gliding travel distances up to 100 meters. Operates within temperature range from -35°C to 80°C.

Conductor type is stranded, complying with CE and EN standards. Cable length is 25 meters with an outside diameter of 8.5 mm. Voltage rating supports 300V and 500V applications. Core insulation made from mechanically high-quality TPE mixture ensuring longevity.

Explore more industrial Control Cables and related components to meet your specific project needs at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The control cable supports voltage levels of 300V and 500V, making it suitable for various electrical power and signal control tasks.

It operates effectively within a temperature range from -35°C to a maximum of 80°C.

This control cable features 5 cores, constructed with stranded bare copper conductors measuring 0.5mm² (20 AWG).

The outside diameter of the cable is 8.5 mm.

Yes, it is designed for use in freely suspended and gliding travel distances of up to 100 meters.

The jacket is made from a durable thermoplastic elastomer, which offers resistance to oils and coolants.

Yes, it is flame-retardant and halogen free, complying with IEC 332-1 and CEI 20-35 standards, as well as CE and EN standards.

The core insulation is made from a mechanically high-quality TPE mixture, enhancing the performance of the conductors.

The cable length is 25 meters, providing versatility for various installation needs.

The conductor type is stranded, which helps in providing reliable electrical conductivity.

This product is manufactured in Germany, reflecting high quality and reliability.

Common applications include industrial automation, machinery wiring, and control panels, particularly in environments requiring flexible, oil-resistant, and flame-retardant cables.
