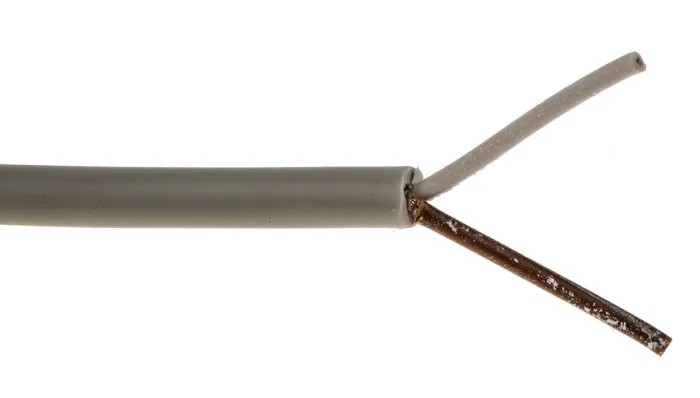

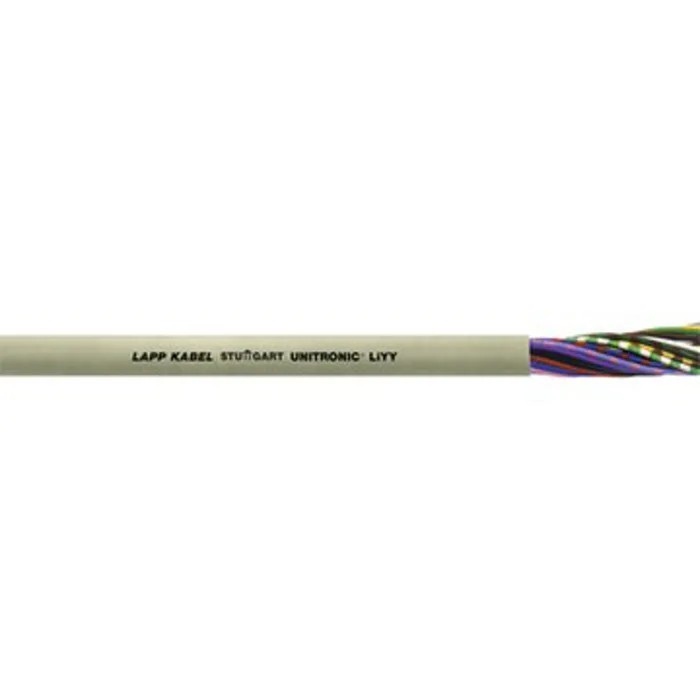

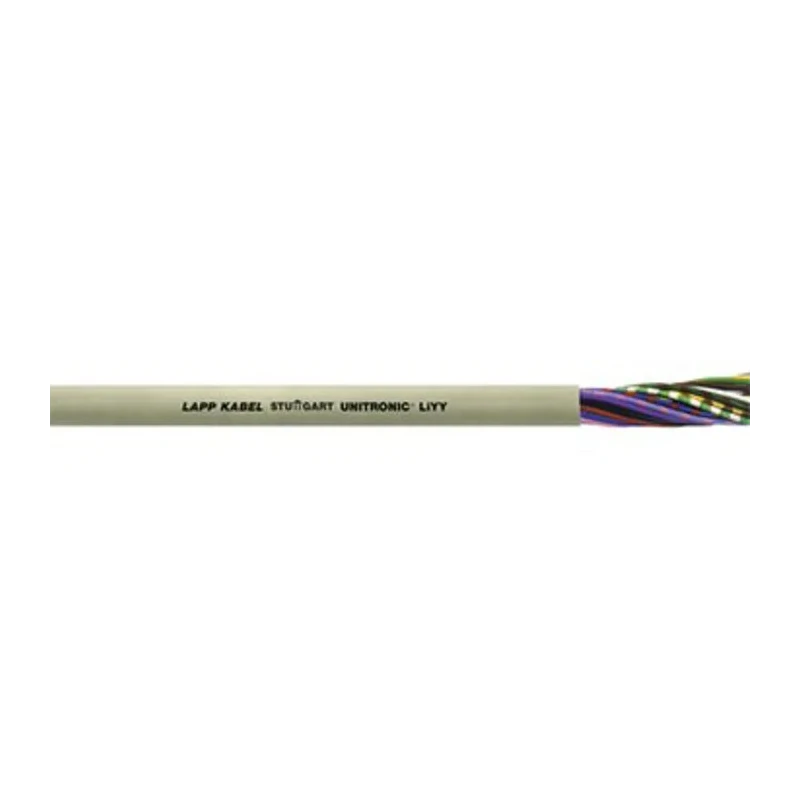

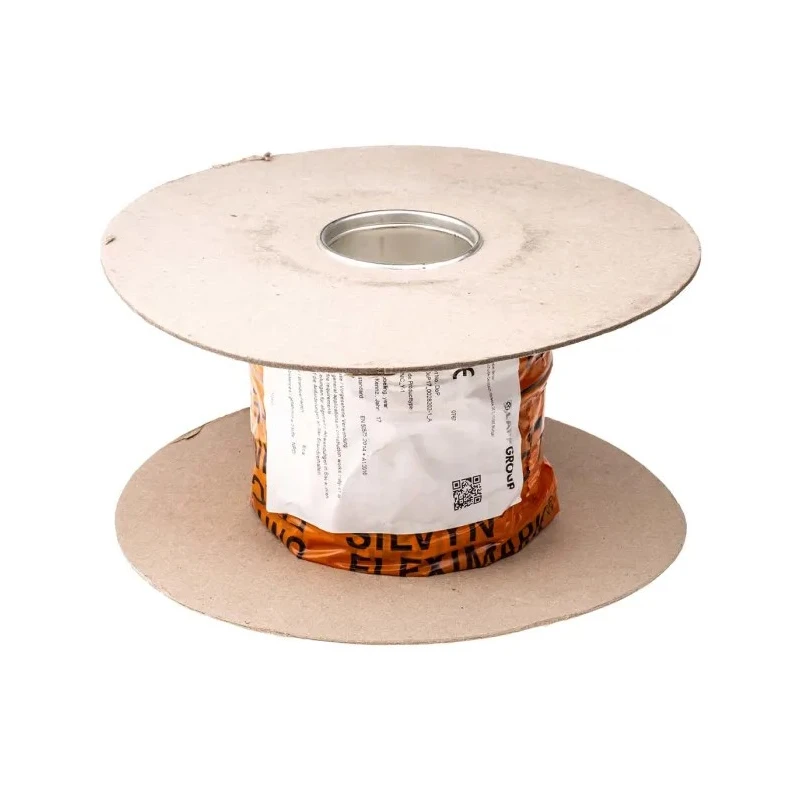

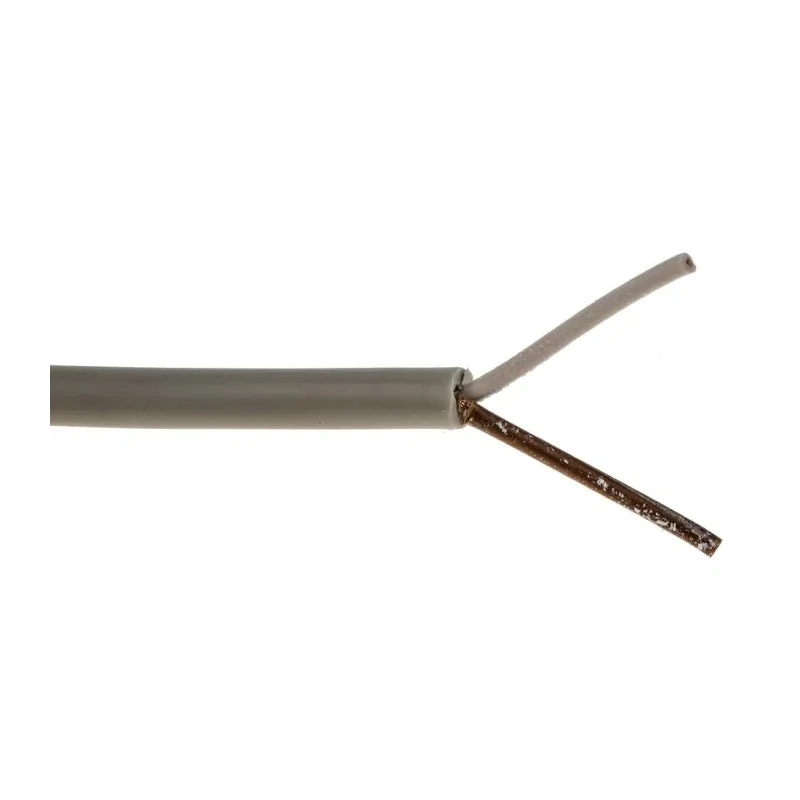

Lapp UNITRONIC LiYY Series Data Cable 2 Pairs 2 Cores 0.34 mm² 100 m Grey Sheath Polyvinyl Chloride 0028402

Free Delivery in India | Lowest Global Shipping Charges

Lapp UNITRONIC LiYY Series Data Cable 2 Pairs 2 Cores 0.34 mm² 100 m Grey Sheath Polyvinyl Chloride 0028402

Name: Lapp UNITRONIC LiYY Series Data Cable 2 Pairs 2 Cores 0.34 mm² 100 m Grey Sheath Polyvinyl Chloride 0028402
Brand: Lapp
SKU: 331300
Price: 122.33 USD
Availability: InStock



Category Data Cable Brand Lapp Condition New

Specifications

Country of Origin	Germany
Voltage	500V
Brand	Lapp
CROSS SECTIONAL AREA	0.34mm²
Model	0028402
Cable Length	100m
Series	UNITRONIC LiYY
Outside diameter	4.2mm
Maximum Operating Temperature	80°C
Number Of Cores	2
Conductor Material	Bare Copper
Minimum Operating Temperature	-40°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	VDE, IEC
Jacket Colour	Grey
Fire Behaviour	Flame Retardant
Conductor Type	Extra Fine
Number of Strands	7
Core Strands	7 x 0.25mm
Size of Strands	0.25mm
Number of Pairs	2

Key Features

Constructed with flame-retardant polyvinyl chloride jacket for safety in installations.
Rated for a peak voltage of 500 V suitable for signal circuits.
Operates reliably within a temperature range from -40°C to 80°C for versatile indoor use.
Features extra-fine 7-strand bare copper conductors for excellent flexibility and conductivity.
Outer diameter of 4.2 mm with a grey sheath matching DIN 47100 color coding for easy core identification.
Low capacitance of approximately 120 nF/km reduces signal distortion for clear data transmission.
Minimum bending radius is 10 times the outer diameter, ideal for occasional flexing applications.
Complies with VDE and IEC standards ensuring high quality and safety compliance.

Product Description

Lapp 0028402 UNITRONIC LiYY Series Data Cable is engineered for efficient control and signal transmission in automated machinery, electronics, and measurement systems. This cable features 2 pairs with 2 cores and a cross-sectional area of 0.34 mm², extending over 100 meters with a durable grey polyvinyl chloride sheath.

Designed for use in dry or damp indoor environments, the flame-retardant PVC jacket provides enhanced safety for installations that require operating voltages up to 500 V. Its construction allows reliable operation from -40°C minimum up to 80°C maximum temperature, making it suitable for fixed installations and occasional flexing.

The conductors consist of extra-fine, 7-strand bare copper wires measuring 0.25 mm each, ensuring flexibility without sacrificing conductivity. The cable maintains low capacitance approximately 120 nF/km, minimizing signal distortion and interference during transmission. The minimum bending radius of 10 times the outer diameter facilitates installation even in confined spaces.

The cable cores follow the DIN 47100 color code, which simplifies installation and troubleshooting by providing unique core colors without repetition. This product complies with stringent VDE 0482, VDE 0472, IEC 332.1 standards, supporting quality and safety benchmarks for electrical cables.

This UNITRONIC LiYY cable is ideal for control wiring in automated machinery, signaling applications in electronic control panels, office machinery like scales, and wiring in measurement and regulation equipment within industrial and commercial settings.

Flame-retardant polyvinyl chloride jacket enhances installation safety. Supports peak voltage of 500 V for reliable signal circuits. Wide temperature operating range from -40°C to 80°C for various indoor conditions. Extra-fine 7-stranded bare copper conductors provide excellent flexibility and conductivity.

Low capacitance reduces signal distortion for high-quality data transmission. Minimum bending radius of 10x outer diameter allows occasional flexing during installation. Following DIN 47100 color code for core identification eases maintenance and troubleshooting.

Meets VDE and IEC standards ensuring compliance and safety. Recommended for industrial, laboratory, manufacturing, and commercial electrical installations. Explore more high-quality Data Cables and electrical wiring solutions in EnvMart's Electronics & Electricals Wires & Cables category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for a peak voltage of 500 V, making it suitable for signal circuits.

It operates reliably within a temperature range from -40°C to 80°C, suitable for various indoor conditions.

The outer diameter of this cable is 4.2 mm, allowing for flexible installation options.

This data cable features 2 pairs with a total of 2 cores.

The cable is constructed with bare copper conductors and a flame-retardant polyvinyl chloride (PVC) jacket.

The minimum bending radius is 10 times the outer diameter, which is suitable for occasional flexing applications.

It complies with VDE and IEC standards, ensuring quality and safety compliance for electrical cables.

The cable maintains a low capacitance of approximately 120 nF/km, which helps reduce signal distortion.

The cable cores follow the DIN 47100 color code, simplifying installation and troubleshooting by providing unique core colors without repetition.

It is recommended for control wiring in automated machinery, signaling applications in electronic control panels, and wiring in measurement and regulation equipment.

The conductors have a cross-sectional area of 0.34 mm², which contributes to their flexibility and conductivity.

This data cable is manufactured in Germany, ensuring adherence to stringent quality standards.
