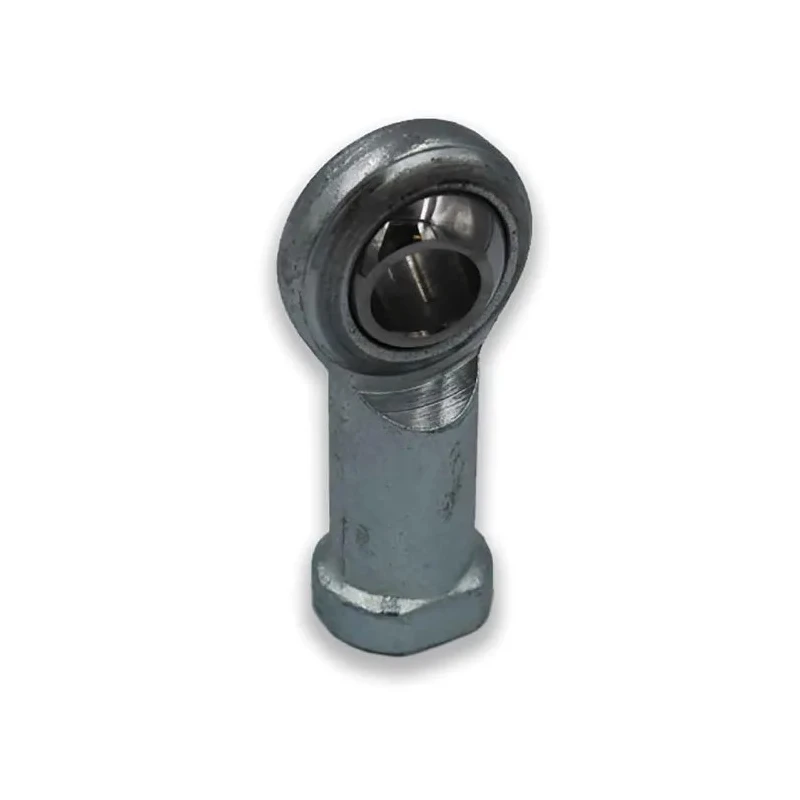

LDK M12 Female Carbon Steel Rod End, 12mm Bore, Left Hand Thread, PTFE Composite Race PHS 12ECL

LDK PHS 12ECL is a high-precision female rod end bearing designed for industrial and mechanical applications requiring reliable rotary movement. It incorporates a 12mm bore and a left hand metric thread sized M12 x 1.75, providing secure connection and easy integration into assemblies.

The bearing ball is manufactured from AISI 52100 bearing steel, known for its high hardness (HRC58-64), precision ground and polished surface finish, enhancing durability and reducing friction. The carbon steel body is zinc plated with a clear finish to resist corrosion and environmental wear.

The race incorporates PTFE composite, providing excellent sliding contact surfaces combined with steel/PTFE composite materials that ensure smooth operation and reduce maintenance requirements.

With a dynamic load rating of 13.5kN and a static load rating of 22.7kN, this rod end is engineered for demanding industrial environments including manufacturing machinery, material handling systems, and automotive assemblies. It offers robust support for rotational and oscillating movements.

The overall dimensions include an outside diameter of 30mm and an overall width of 65mm. The connection size is standard metric M12 female with a left hand thread direction, making it compatible with related mechanical components.

This rod end does not carry any specific standards or approvals but meets general quality expectations for industrial rotary bearings. It is manufactured in China under the brand LDK known for quality mechanical components.

The rod end features a left hand metric thread of size M12 x 1.75. Its ball is made from heat treated AISI 52100 bearing steel, hardened to HRC58-64, precision ground and polished. The body is constructed of carbon steel with clear zinc plating for corrosion resistance.

The race uses a PTFE composite material, enhancing sliding contact surfaces combined with steel for durability. Dynamic load rating is 13.5kN and static load rating is 22.7kN ensuring robust performance. The connection size is M12 female with an outside diameter of 30mm and overall width of 65mm.

Designed without specific standards or approvals, it is produced in China.

Ideal for industrial, manufacturing, mechanical assemblies, and fluid power applications, the LDK PHS 12ECL rod end provides reliable performance and durability. Explore more high quality rotary bearing components in EnvMart’s Rod Ends category for your project needs.
