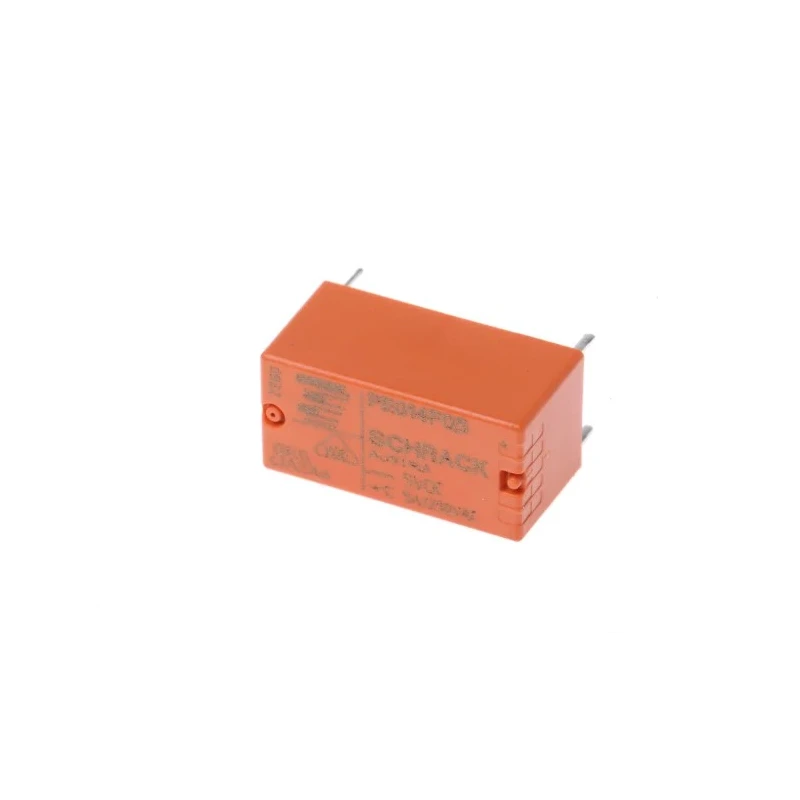

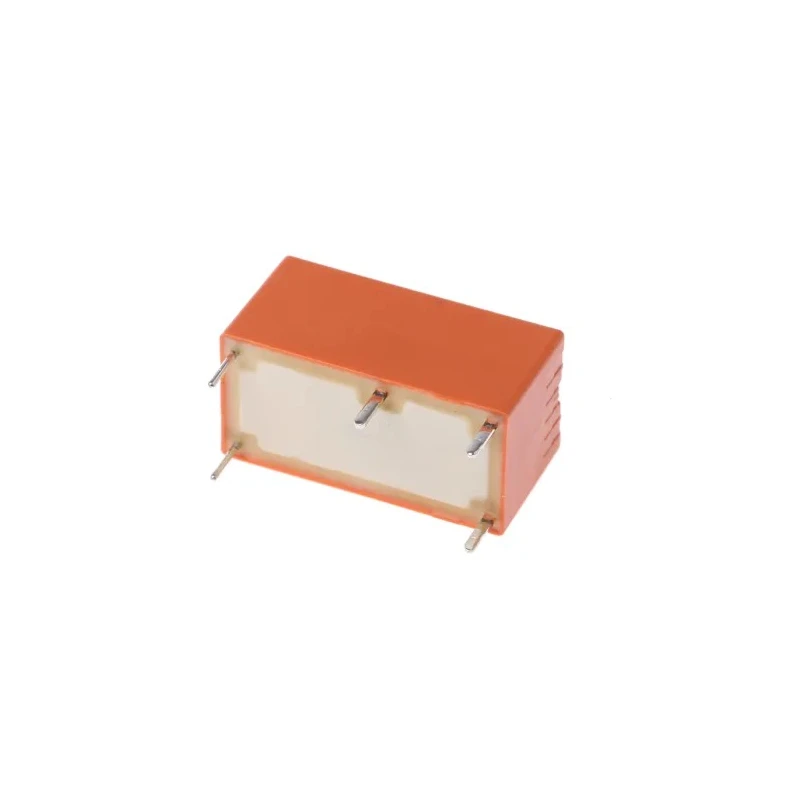

TE Connectivity SCHRACK PCB Power Relay, 5V DC Coil, 5A Switching Current, SPDT PE014F05
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Length | 20mm |
| Model | PE014F05 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | IEC, RoHS, UL, VDE |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 200mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 200mW |
Key Features
- This relay operates with a coil voltage of 5 volts DC, suitable for PCB mounting applications.
- It has a switching current rating of 5 amperes for reliable load handling.
- The product incorporates a silver alloy contact material ensuring high conductivity and durability.
- The operating temperature range is from -40°C to +85°C making it suitable for various industrial environments.
- The switching power is rated at 1.25 kVA with a maximum switching AC voltage of 400 volts AC.
- The coil resistance is 125 ohms, and coil power consumption is very low at 200 mW for energy efficiency.
- It features a compact form factor with a length of 20 mm, width of 10 mm, and height of 10 mm for space-saving PCB design.
- The relay offers excellent coil to contact isolation rated at 4000 VAC for circuit protection.
Product Description
TE Connectivity PE014F05 is a high-quality PCB Power Relay from the SCHRACK series, engineered for industrial and electrical automation applications. It features a coil voltage of 5V DC and a single-pole double-throw (SPDT) contact configuration, suitable for switching currents up to 5A.
The relay is designed with high coil sensitivity consuming only 200mW, while the coil resistance is 125 ohms to optimize power usage. It supports a maximum switching AC voltage of 400V AC and switching power of 1.25 kVA, making it suitable for controlling moderately high power loads in manufacturing equipment, control systems, and industrial machinery.
Operating reliably across a broad temperature range from -40°C to +85°C, this relay is built to withstand challenging environmental conditions. Its compact dimensions (20 mm length, 10 mm width, 10 mm height) allow easy integration on printed circuit boards where space is critical. The silver alloy contact material ensures long-lasting durability and excellent electrical conductivity, enhancing switching performance.
The relay also provides outstanding isolation between coil and contacts rated at 4000 VAC, ensuring safety and protection against electrical faults in industrial setups. It is compliant with leading international standards including IEC, RoHS, UL, and VDE, guaranteeing trustworthy operation in diverse commercial and industrial contexts.
This relay is an ideal component for use in automation controls, industrial machinery, HVAC systems, instrumentation, and power management circuits. Its reliability and quality certifications make it well suited for demanding lab and manufacturing environments.
Operates at 5V DC coil voltage with low power consumption. Switching capacity up to 5A with SPDT contact configuration. Compact PCB mount design with dimensions of 20x10x10 mm. Durable silver alloy contacts for high conductivity.
Wide operating temperature range from -40°C to +85°C. Isolation coil to contact rated at 4000 VAC for safety. Compliant with IEC, RoHS, UL, and VDE standards. Explore the full range of Power Relays and electrical components at EnvMart for industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 5 volts DC.
It has a maximum switching current rating of 5 amperes.
This model features a single-pole double-throw (SPDT) contact configuration.
The isolation between the coil and contacts is rated at 4000 VAC.
The relay has compact dimensions of 20 mm in length, 10 mm in width, and 10 mm in height.
It operates reliably across a temperature range from -40°C to +85°C.
The relay incorporates a silver alloy contact material for high conductivity and durability.
The coil resistance is 125 ohms.
The coil power consumption is very low at 200 mW.
It is compliant with IEC, RoHS, UL, and VDE standards.
The maximum switching AC voltage is rated at 400 volts AC.
This relay is suitable for use in automation controls, industrial machinery, HVAC systems, and instrumentation.
