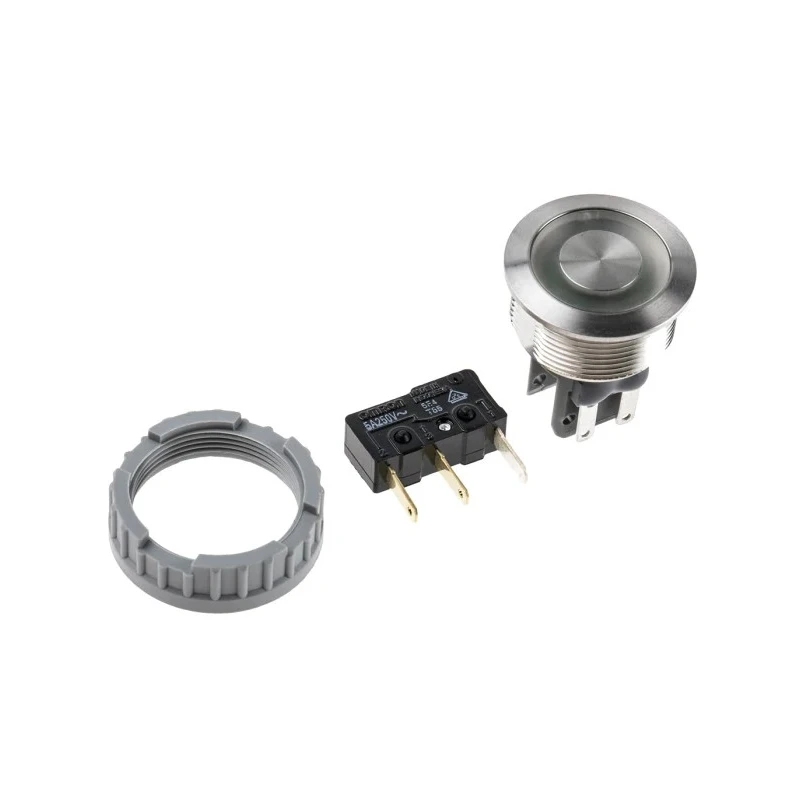

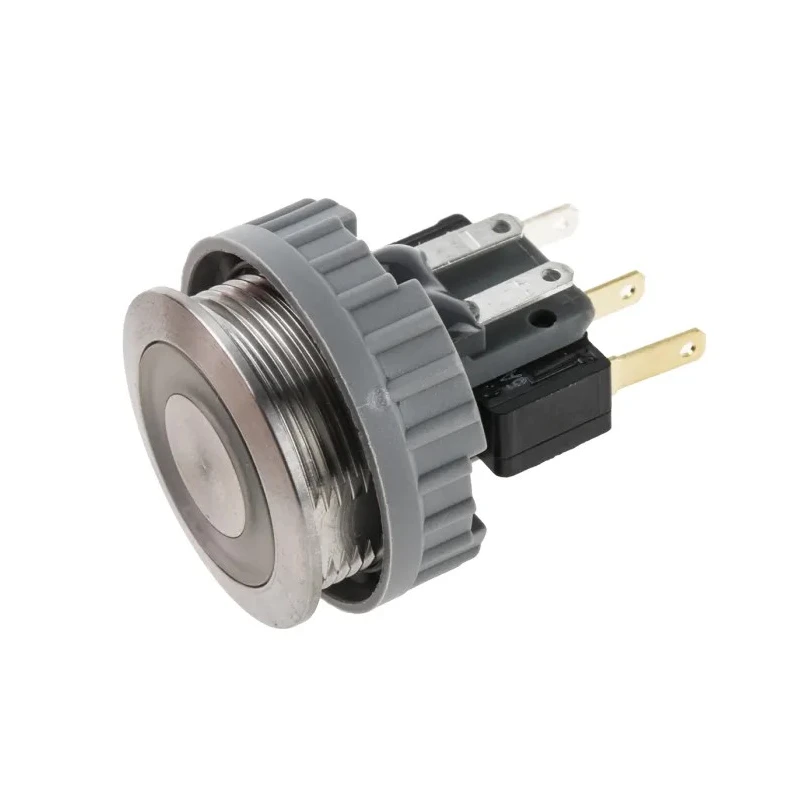

Schurter MSM 22 Series Illuminated Momentary Push Button Switch, Panel Mount, 22 mm Cutout, SPDT, Blue 1241.6634.1124000

Schurter 1241.6634.1124000 MSM 22 Series illuminated momentary push button switch features a stainless steel flat actuator designed for panel mounting with a 22 mm cutout size. This switch operates with a SPDT contact configuration, providing reliable switching with blue LED illumination enhancing user interface feedback.

The switch offers robust ingress protection with IP40 for vandal resistance and IP67 for water and dust tightness, suitable for demanding industrial, automation, and electrical panel applications. It supports a contact voltage of 30 V DC and 250 V AC, rated current of 5 A, and operates across a temperature range from -25°C to 85°C.

Its compact design includes flat connections with 2.8 mm terminals for effective and secure wiring. Built for long durability, the MSM 22 series can perform up to 1.5 million actuations, making it ideal for industrial control panels, automation systems, manufacturing equipment, and laboratory instrumentation requiring high reliability.

Operates momentarily with SPDT contact configuration for versatile switching applications. Features blue LED illumination for clear indication and enhanced visibility. Rated with IP40 and IP67 ingress protection for dust and water resistance.

Compact flat actuator style with a durable stainless steel button for vandal resistance. Supports operating temperatures from -25°C to 85°C for a wide range of environments. Contact current rated at 5 A with 30 V DC and 250 V AC voltage capability.

Flat 2.8 mm connections for reliable electrical contact and ease of installation. Long service life of up to 1.5 million actuations ensuring dependable performance.

This push button switch is widely applicable in industrial automation, electrical control panels, HVAC systems, manufacturing processes, and other commercial and industrial equipment requiring reliable momentary switching and illuminated feedback. Its IP ratings and robust build ensure operational reliability in harsh environments.
