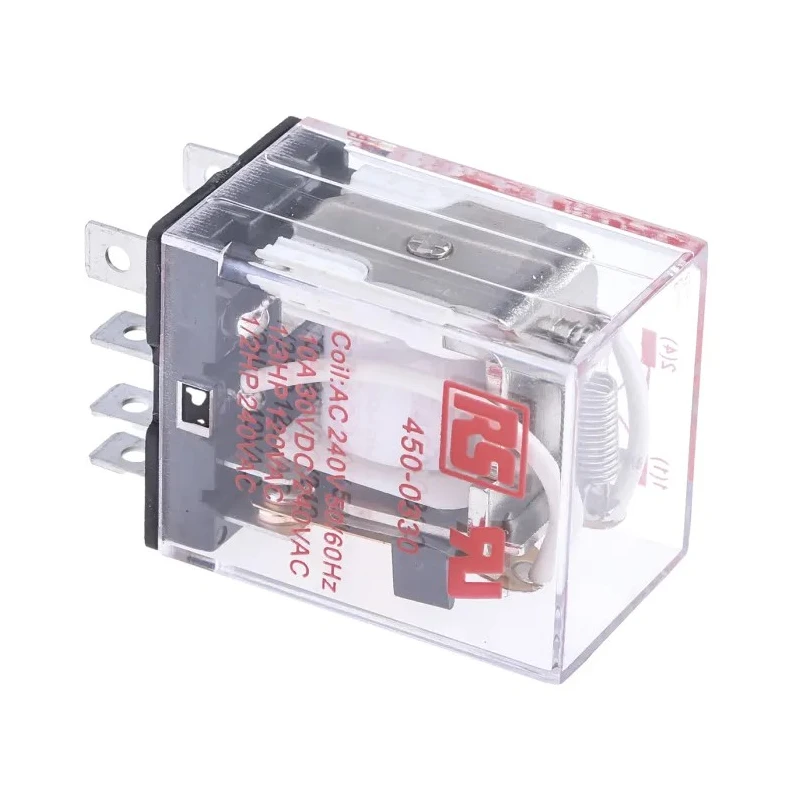

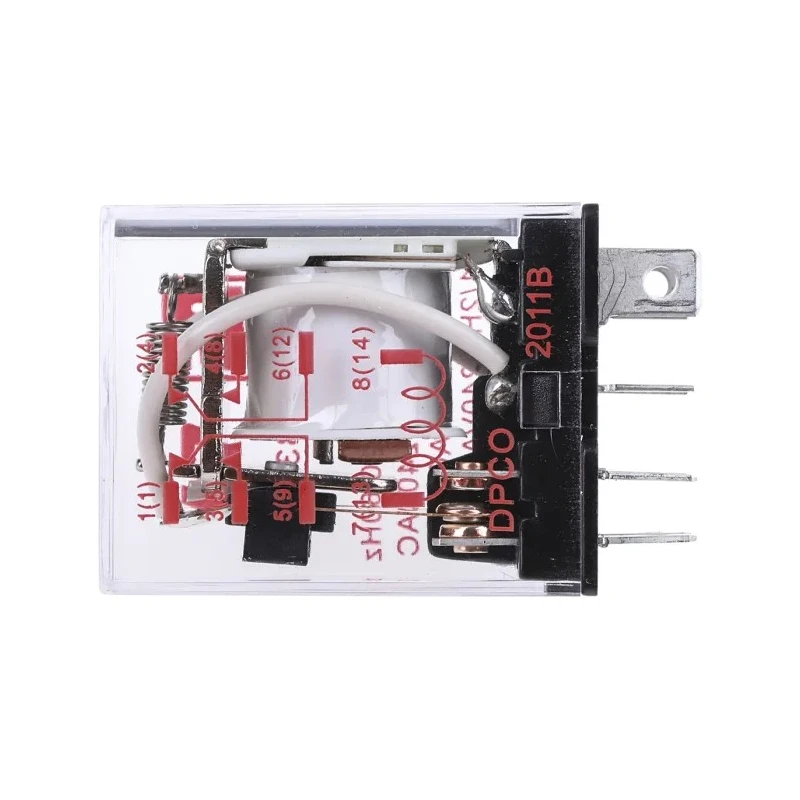

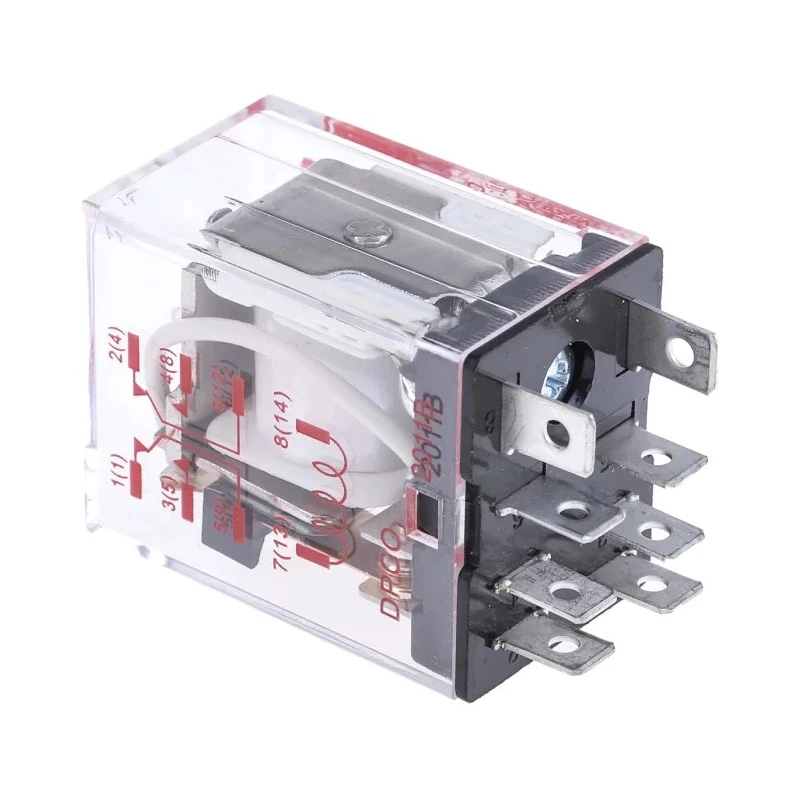

RS PRO Plug-in Power Relay, 240V AC Coil, 10A Switching Current, DPDT 450-0330
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 36mm |
| Length | 28mm |
| Model | 450-0330 |
| Width | 21.5mm |
| Mount Type | Plug-in |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Standards/Approvals | UL, EN, CE |
| Coil Resistance | 15.7kΩ |
| Coil Voltage | 240V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 1.2W |
Key Features
- The relay features a double pole double throw (DPDT) contact configuration.
- It has a coil voltage rating of 240V AC with a coil power consumption of 1.2W.
- Plug-in mount with PCB pin terminals allows for easy installation and replacement.
- Switching voltage rating is 240V AC and 30V DC with a switching current of 10A.
- The relay operates reliably within a temperature range of -45°C to +55°C.
- Constructed with silver alloy contacts to ensure low contact resistance and durability.
- The product meets UL, EN, and CE standards for safety and quality compliance.
- The compact dimensions are 28 mm length, 21.5 mm width, and 36 mm height.
Product Description
RS PRO 450-0330 plug-in power relay DPDT features a 240V AC coil with a switching current of 10A, engineered for robust industrial and automation applications.
This double pole double throw (DPDT) relay ensures reliable opening and closing of circuits and is commonly utilized in video projection equipment, surge control devices, and automation controllers.
The relay is non-latching, remaining normally closed (NC) without power and switching to normally open (NO) when energized. Its plug-in mounting and PCB pin terminals facilitate quick installation and maintenance.
Constructed with silver alloy contacts, it assures low contact resistance and high durability, suitable for high switching loads up to 240V AC or 30V DC. Operating in extreme temperature ranges from -45°C to +55°C, it withstands harsh industrial environments.
Meeting UL, EN, and CE certifications, this relay offers a mechanical life expectancy of 10 million operations and an electrical life of 100,000 operations, ensuring long-term reliability and performance.
Its compact size with dimensions 28 mm (L) x 21.5 mm (W) x 36 mm (H) fits easily into diverse control panels and equipment. The isolation voltage between coil and contacts is rated at 1.5 kV AC, providing safe electrical isolation and enhanced operational safety.
The relay has a coil voltage of 240V AC and coil resistance of 15.7 kΩ. Contact configuration: Double Pole Double Throw (DPDT) for versatile switching. Mount type: Plug-in with PCB pin terminals for easy installation. Switching current capacity: 10A suitable for industrial load demands.
Operating temperature range: -45°C to +55°C for harsh environment compatibility. Silver alloy contacts for reduced contact resistance and improved durability. Mechanical life of 10 million operations ensures extended usage.
Electrical life of 100,000 operations meets industrial reliability standards. Meets UL, EN, and CE quality and safety standards for dependable performance.
This RS PRO power relay is ideal for industrial automation, electronic controls, HVAC systems, manufacturing equipment, and other electrical circuit applications requiring reliable switch control.
Explore more high-quality Power Relays and electrical components at EnvMart to fulfill your automation and control needs with trusted brands and proven performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage rating of 240V AC.
It can handle a maximum switching current of 10A.
The dimensions are 28 mm in length, 21.5 mm in width, and 36 mm in height.
This relay features a double pole double throw (DPDT) contact configuration.
It operates reliably within a temperature range of -45°C to +55°C.
It uses a plug-in mount with PCB pin terminals for easy installation.
The contacts are constructed from silver alloy to ensure low contact resistance.
It has a mechanical life expectancy of 10 million operations and an electrical life of 100,000 operations.
This relay meets UL, EN, and CE standards for safety and quality compliance.
The coil power consumption is 1.2W.
The isolation voltage between the coil and contacts is rated at 1.5 kV AC.
This relay is suitable for industrial automation, electronic controls, HVAC systems, and manufacturing equipment.
