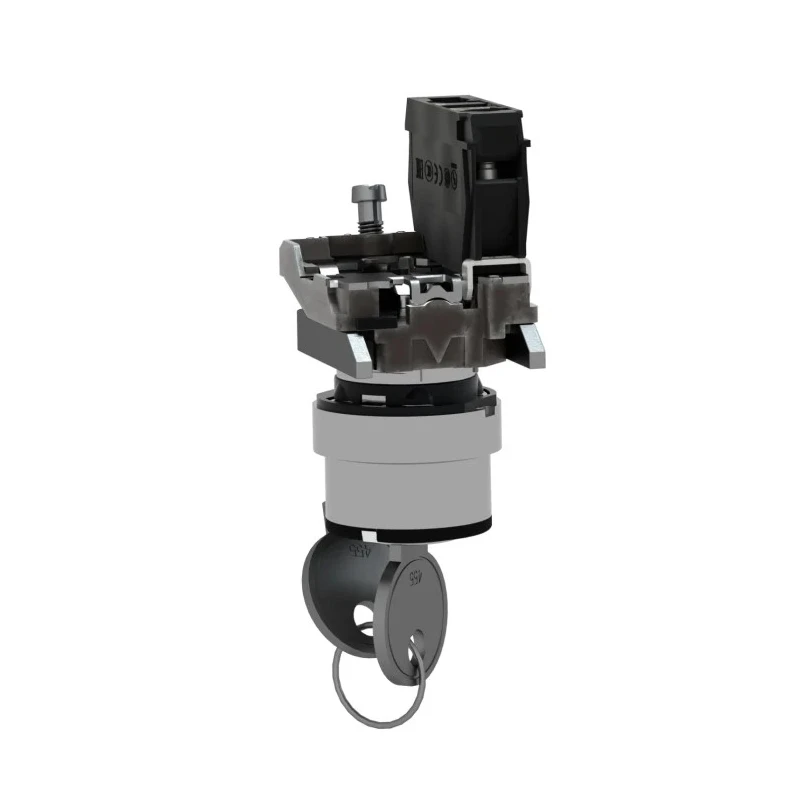

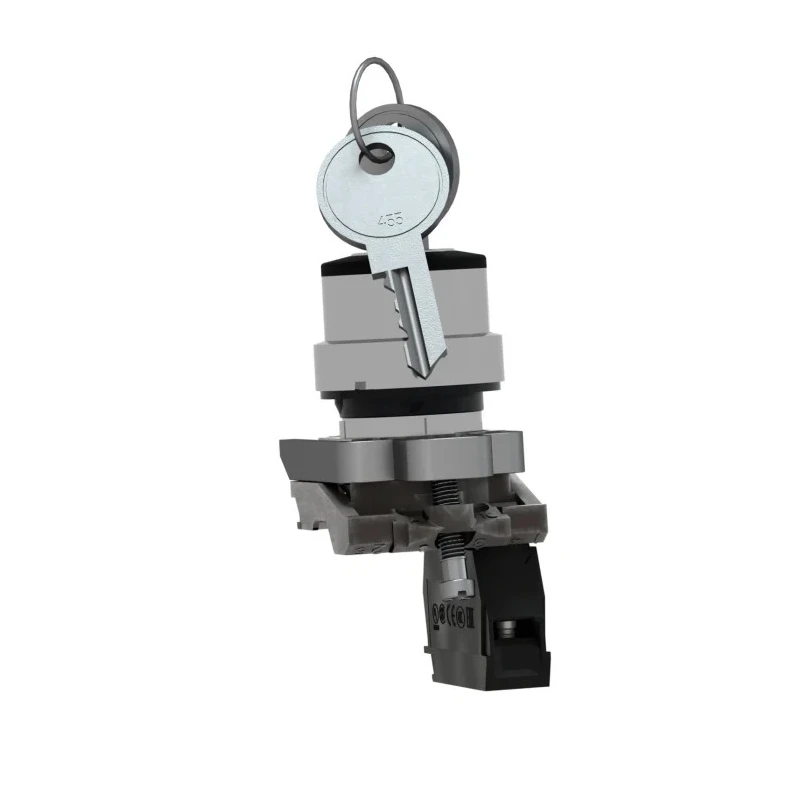

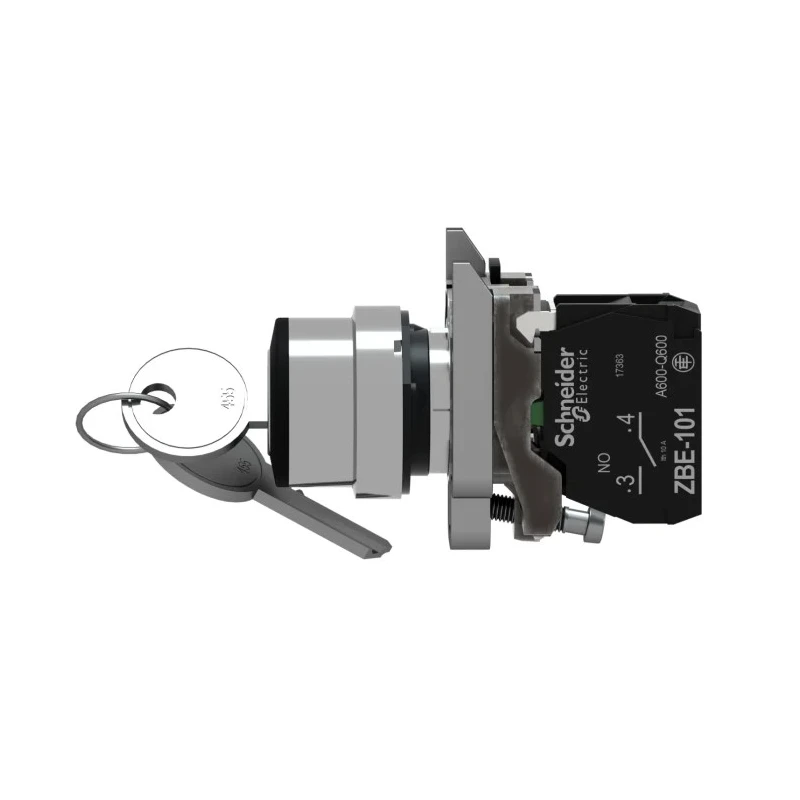

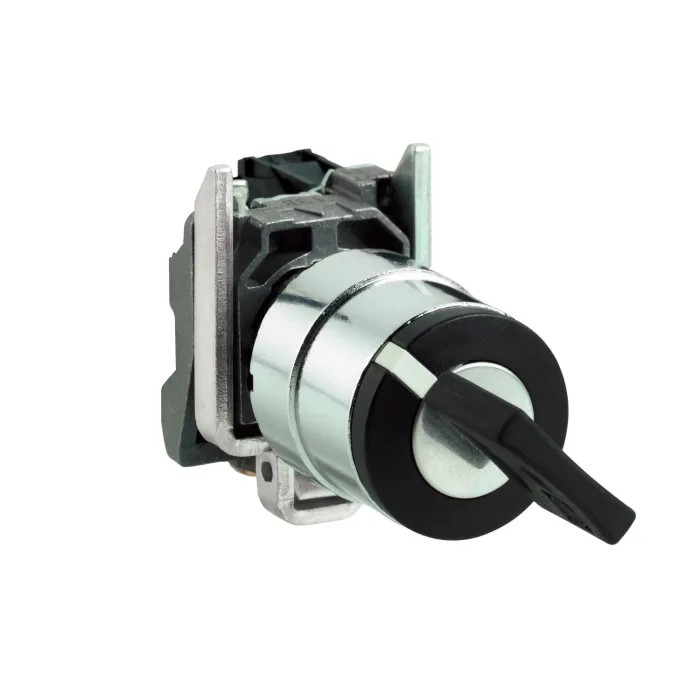

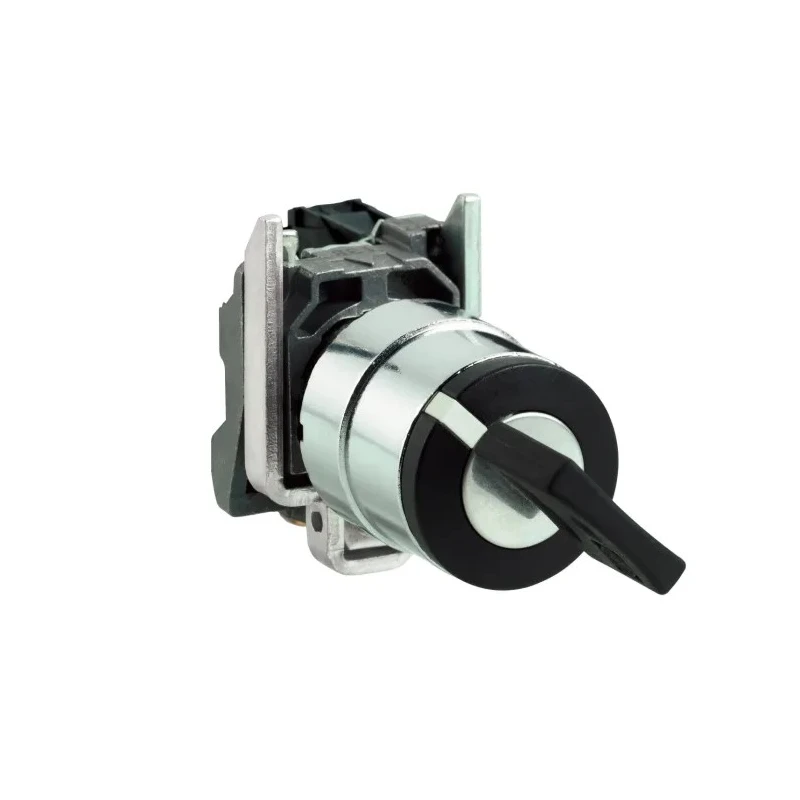

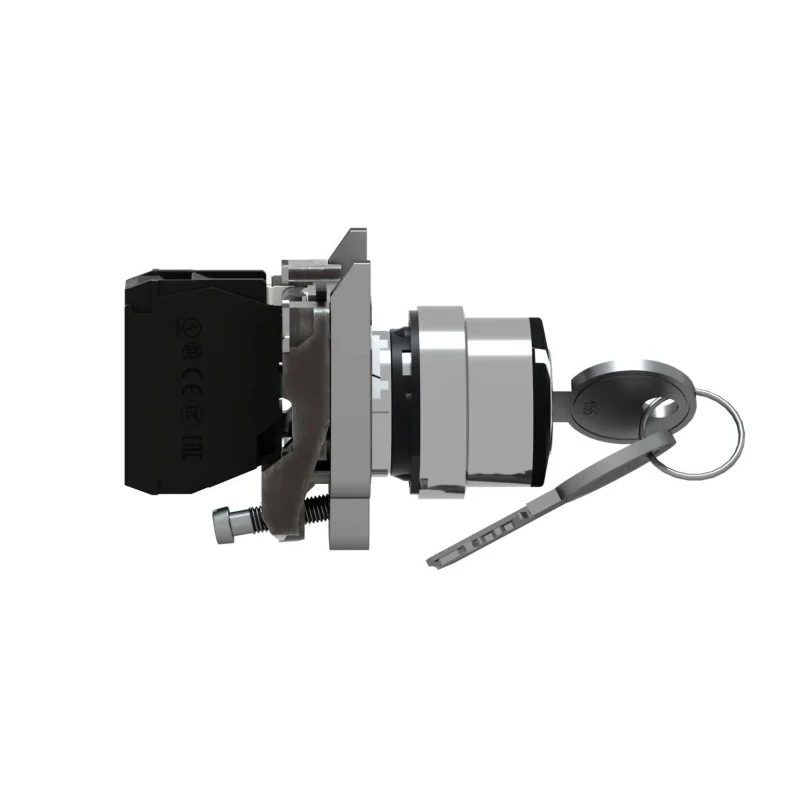

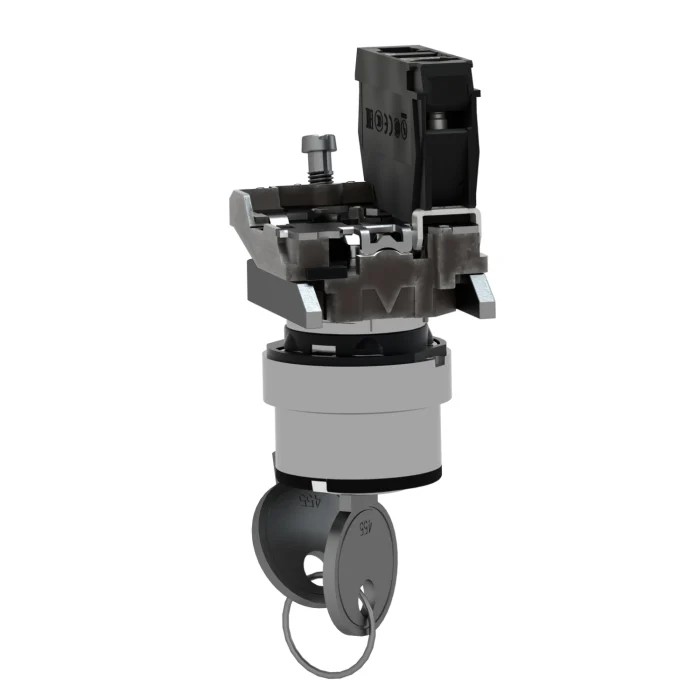

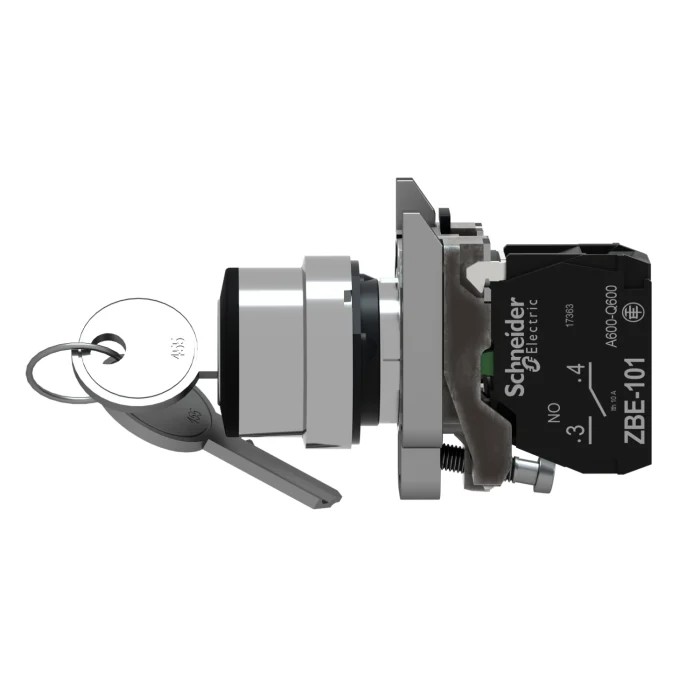

Schneider Electric IP66, IP67, IP69K Two-Position Key Switch, 1 NO Contact, 100 mA, 1.2 A, 2-Way, 455-Key XB4BG61

Schneider Electric XB4BG61 is a robust two-position key switch engineered for demanding industrial and commercial electrical control applications. This model features a corrosion-resistant chromium-plated metal housing with a durable Zamak collar, ensuring longevity even under harsh environmental conditions.

The switch is designed with a spring return mechanism that automatically reverts it to its original position, facilitating effortless operation without manual reset. It supports 1 Normally Open (NO) contact configuration rated for 100 mA and 1.2 A currents at 600 volts AC/DC, making it suitable for controlling circuits in various industrial equipment.

With IP66, IP67, and IP69K ingress protection, this key switch withstands dust, water jets, and high-pressure washdowns, fitting for applications in automotive industry, packaging plants, power control panels, and public infrastructures. The operating temperature range from -40°C to 70°C allows reliable use in extreme environments.

The mechanical life expectancy is rated at 1,000,000 cycles, ensuring a long service lifespan. It comes equipped with two Ronis 455 keys, giving users a main and a backup key for security and convenience. The round bezel shape and 22 mm cutout diameter enable mounting in compact control panels with screw-clamp terminals or plug-in connectors.

Compliant with EN/IEC 60947-5-5, EN/IEC 60947-5-1, UL 508, CSA C22.2 No. 14, and JIS C 4520 standards, this key switch meets stringent industrial safety and performance requirements. It is part of the Harmony XB4 series, trusted for quality and reliability.

This key switch also supports Better World initiatives by being repairable by the end user, contributing to sustainability in electrical components. Applications include automotive industry controls, public building systems, power control panels, and packaging plant machinery where reliable, durable switching is critical.

Explore more Schneider Electric products for dependable industrial electrical solutions. Features a spring return switch operation with 2 positions for ease of use. Equipped with a 1 Normally Open (NO) contact configuration suitable for control applications.

Supports switch contact currents of 100 mA and 1.2 A at 600 V AC/DC. Constructed with corrosion-resistant chromium-plated metal and Zamak collar for durability. Designed to withstand harsh washdown conditions withstanding up to 7,000,000 Pa water pressure.

Operates reliably in temperatures ranging from -40°C to 70°C. Mechanical life rated at 1,000,000 cycles for extended service. Includes two Ronis 455 keys enabling main and replacement usage. Complies with international standards including EN/IEC 60947 and UL 508 for safety and performance.

Ideal for automotive, power control panels, public buildings, and packaging plants. Browse the comprehensive range of Key Switches and electrical controls available from Schneider Electric at EnvMart.
