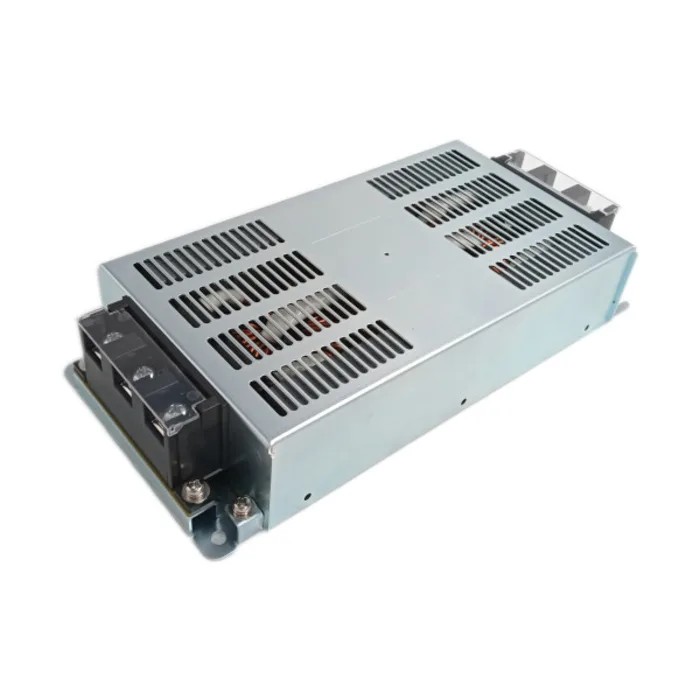

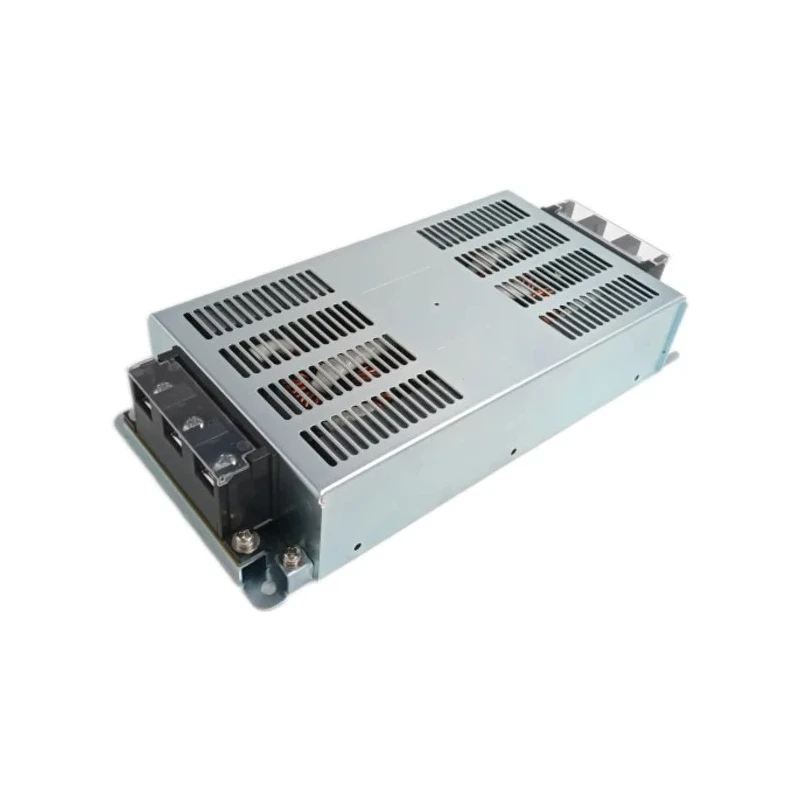

KEMET EMI Filter Chassis Mount 3 Phase 50A 500V AC Capacitance 68000pF GTX-3500-Y683
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 47mm |
| Length | 250mm |
| Model | GTX-3500-Y683 |
| Depth | 120mm |
| Packaging | Box |
| Mount Type | Chassis Mount |
| Series | GTX |
| Maximum Operating Temperature | 55°C |
| Resistance | 300mΩ |
| Capacitance | 68000pF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50A |
| Number of Phases | 3 |
| Leakage Current | 13mA |
| Maximum Voltage | 500V ac |
| Termination Style | Screw |
Key Features
- Constructed with nanocrystalline core material ensuring high mechanical density and compact size.
- Supports operating temperature range from -25°C to +55°C for varied industrial environments.
- Features screw termination style for secure mounting and connection.
- Provides capacitance of 68000pF and leakage current of 13mA for effective filtering.
- Compact dimensions with 250mm length, 47mm height, and 120mm depth for chassis integration.
- Specifically designed for industrial equipment, general purpose inverters and process automation systems.
- RoHS compliant with UL, c-UL, and TÜV approvals enhancing safety and reliability.
- Offers resistance of 300mΩ contributing to stable electrical performance.
Product Description
KEMET GTX-3500-Y683 EMI Filter is a high-performance chassis mount filter tailored for three-phase power systems operating at 50 amperes and 500 volts AC. Its nanocrystalline core material delivers superior electromagnetic compatibility (EMC) performance in a compact and lightweight design, suitable for demanding industrial and automation environments.
The filter operates efficiently within a temperature range of -25°C to +55°C, supporting robust functionality under tough conditions. It utilizes a screw termination style to ensure secure, reliable electrical connections within equipment chassis.
Capacitance is rated at 68000pF, complemented by a leakage current specification of 13mA, which facilitates effective noise filtering on power lines. Physical dimensions are practical for installation with a length of 250mm, height of 47mm, and depth of 120mm.
This EMI filter is ideal for use in industrial equipment, general-purpose inverter assemblies, and process automation applications where reducing electromagnetic interference is critical. It complies with RoHS regulations and holds UL, c-UL, and TÜV approvals, demonstrating adherence to safety and quality standards.
Manufactured with nanocrystalline core material enhancing EMC performance. Temperature range from minus 25 to plus 55 degrees Celsius. Screw termination ensures secure mounting and electrical connection. Effective capacitance of 68000pF for noise suppression.
Compact and lightweight metal case design with high mechanical density. Resistance of 300 milliohms supports stable operation. RoHS compliant and safety certifications include UL, c-UL, and TÜV.
This product is a reliable solution for engineering applications requiring three-phase EMI filtering on power lines. Discover more industrial-grade EMI filters in the Electronics Components category on EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is rated at 68000pF, which facilitates effective noise filtering on power lines.
It can operate at a maximum voltage of 500V AC, making it suitable for various industrial applications.
It features a screw termination style, ensuring secure and reliable electrical connections within the equipment chassis.
The dimensions are 250mm in length, 47mm in height, and 120mm in depth, designed for compact chassis integration.
The maximum current rating for the GTX-3500-Y683 is 50A, suitable for three-phase power systems.
The leakage current is specified at 13mA, which is important for effective filtering performance.
This unit is designed for chassis mounting, providing stability and ease of installation.
It is RoHS compliant and has UL, c-UL, and TÜV approvals, demonstrating adherence to safety and quality standards.
The resistance of this model is 300mΩ, contributing to stable electrical performance.
The country of origin for this model is India, indicating its manufacturing location.
