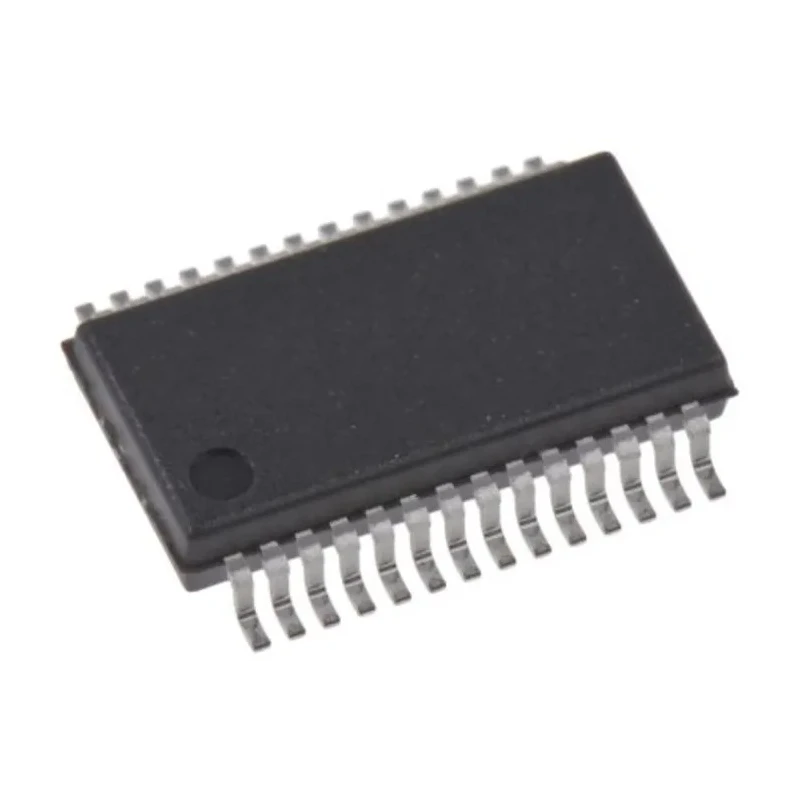

Microchip 16 bit PIC Microcontroller 32 MHz 64kB FLASH 28-Pin SSOP PIC24FJ64GP202-I/SS

Microchip PIC24FJ64GP202-I/SS is a high-performance 16 bit PIC microcontroller designed for embedded system development requiring efficient power management and versatile peripheral support. It operates at a maximum clock frequency of 32 MHz and contains 64kB FLASH program memory alongside 64kB RAM memory, facilitating complex application code and data handling.

This device is based on a Harvard architecture PIC core, optimized for low power consumption, including ultra-low sleep current in the nanoamp range with full RAM retention, making it ideal for battery-powered portable applications.

The microcontroller includes 21 programmable I/O pins, 5-bit DACs, and 12-bit ADCs to support precise analog and digital signal processing. It is housed in a 28-pin SSOP surface-mount package with dimensions of 17.9 mm length, 5.3 mm width, and 2.05 mm height, enabling compact PCB layouts.

Operating across a supply voltage range of 2.5V to 5.5V, and a temperature range from -40°C to 85°C, the PIC24FJ64GP202-I/SS is suitable for robust industrial and automotive applications, meeting AEC-Q standards. Its flash memory supports Error Correction Code (ECC) to enhance data integrity.

The device's features include multiple timers, analogue comparators, and core independent peripherals (CIPs), as well as USB 2.0 full-speed host/device/OTG functionality, extending its capability in USB-enabled designs.

This microcontroller supports efficient energy management and can be used in a wide range of sectors including industrial controls, consumer electronics, automotive systems, and instrumentation.

Operates with a 16-bit PIC core optimized for performance and power efficiency. Equipped with 64kB program memory size and 64kB RAM for extensive code and data storage. Maximum clock frequency of 32 MHz providing responsive processing speed.

Features 21 programmable input/output pins for versatile interfacing. Supports ultra-low-power operation with sleep current down to nanamps preserving battery life. Includes 5-bit DACs and 12-bit ADCs enhancing analog signal processing.

Complies with RoHS standards and automotive AEC-Q certified for reliability. Packaged in a compact 28-pin SSOP surface-mount package for PCB integration. Wide operating voltage range from 2.5V to 5.5V accommodates various power supplies.

Operating temperature range from -40°C to 85°C suitable for industrial environments. Explore more Microchip Microcontrollers and electronic components at EnvMart for your next industrial or laboratory project.
