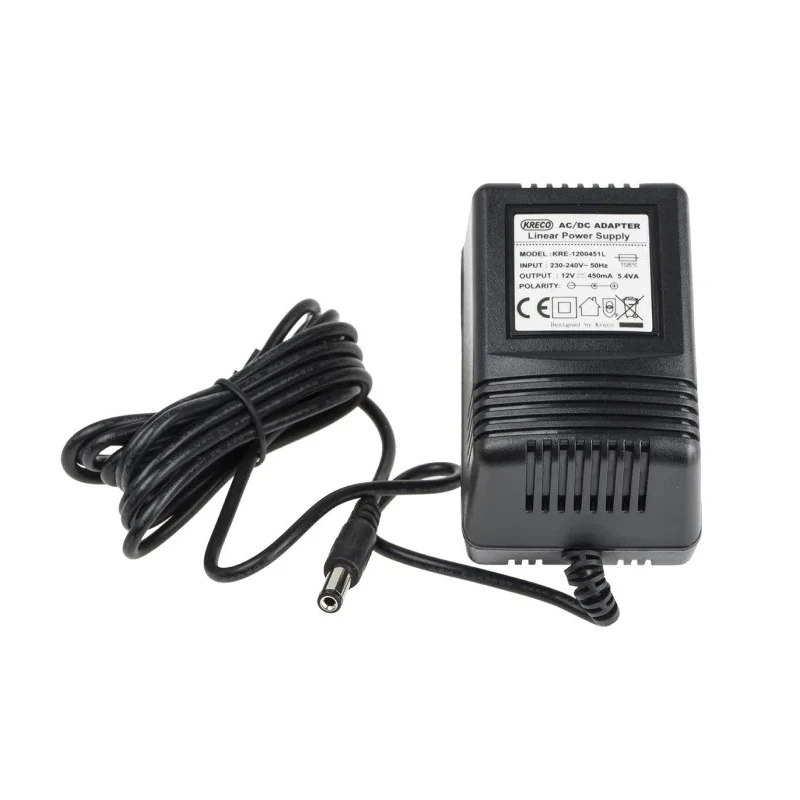

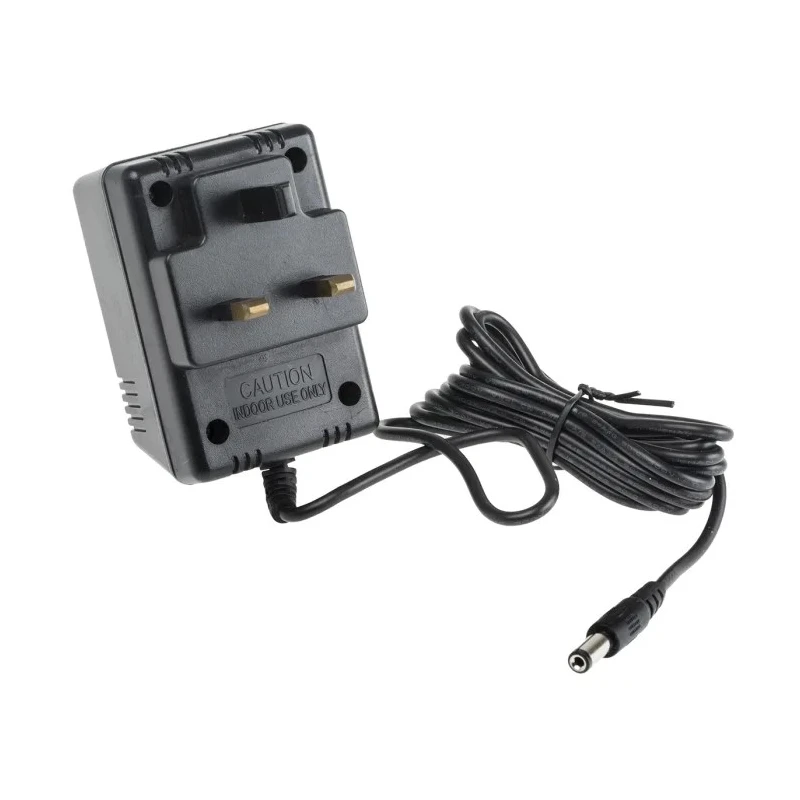

RS PRO 2.1 x 5.5 x 12 mm Centre Positive AC/DC Adapter Type G 6W 12V DC Output, 450mA 139-1784

RS PRO 139-1784 AC/DC Adapter is a reliable power supply unit providing 12V DC output at 6W and 450mA current, ideal for electronics requiring stable power. It features a 2.1 x 5.5 x 12 mm centre positive output connector and comes with a UK Type G plug and 1.8m cable for flexible connectivity and placement.

This unregulated adapter supports input voltages from 230V to 240V AC at 50 and 60Hz, enabling compatibility with common mains electricity supplies. Operating temperature ranges from -20°C to 40°C allow usage in varied environments while meeting IEC/EN 61558 safety standards ensures electrical safety and dependability.

Compact dimensions of 79mm length, 52mm width, and 52mm depth make this adapter suitable for installations where space is limited. The adapter is very low in ripple and noise, producing only 100mV ripple, and offers excellent line regulation of ±1% and load regulation of ±5% for steady output voltage.

Durability is enhanced by a burn-in test at full load and 40°C for at least 4 hours, ensuring long-term operational reliability. This model falls under the RS PRO series, manufactured in China, and complies with energy efficiency level IV standards (CEC IV, ErP I) contributing to energy savings.

Fitted with a 2.1 x 5.5 x 12 mm centre positive output connector for secure connection. Equipped with a UK Type G plug and 1.8m cable length for versatile installation. Supports an input voltage range of 230V to 240V AC at 50/60Hz frequency.

Operates in temperature range from -20°C to 40°C ensuring reliability under various conditions. Designed to meet IEC/EN 61558 safety standards for quality assurance. Unregulated power supply with energy efficiency level IV compliant with CEC IV and ErP I.

Compact dimensions of 79mm length, 52mm width, and 52mm depth suitable for space-constrained environments. Features low ripple and noise output with 100mV ripple and ±1% line regulation. Durability ensured with a burn-in test at full load, 40°C for a minimum of 4 hours.

Manufactured in China and part of the RS PRO series.

This AC/DC adapter is suitable for varied industrial and commercial environments including electronic components powering, telecommunications, office equipment, laboratory instruments, and other low power DC applications.
