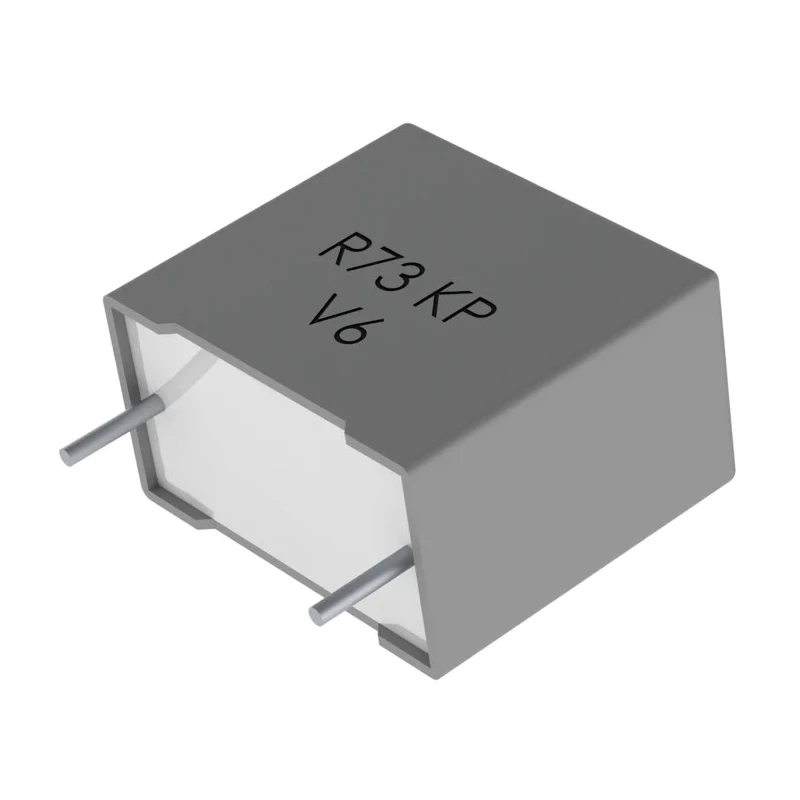

KEMET R73 Film Capacitor, ±5% Tolerance, 4.7 nF Capacitance, Rated DC Voltage 2 kV, Rated AC Voltage 500 V R73UN1470SE00J

KEMET R73UN1470SE00J film capacitor is a high-performance radial component designed for industrial and electronic applications requiring precision capacitance and high voltage rating. It features a nominal capacitance of 4.7 nF with tight ±5% tolerance for consistent electrical behavior.

This through hole mounted capacitor supports rated voltages of 2 kV DC and 500 V AC, making it ideal for high voltage circuits including tuned circuits, timing networks, and filter applications. The encapsulated plastic case meets UL94V-0 flammability standards ensuring safety and reliability in demanding environments.

Designed to operate across a broad temperature range from -55°C up to 105°C, it can endure harsh conditions encountered in industrial, laboratory, and manufacturing settings. The lead pitch of 22.5 mm and 0.8 mm lead diameter facilitate easy integration onto printed circuit boards using radial mounting techniques.

Additional features include compliance with IEC 60286-2 standards and RoHS certification, guaranteeing environmental safety and conformity to international quality benchmarks. Its 2-pin configuration suits various electronic assemblies requiring robust passive components.

Provides stable capacitance of 4.7 nanofarads with ±5% tolerance. Rated DC voltage of 2,000 volts and AC voltage of 500 volts for robust performance. Designed for through hole mounting with a lead pitch of 22.5 mm. Operates reliably in temperature range from -55°C to 105°C.

Encapsulated plastic package compliant with UL94V-0 flammability standard. Compatible with high frequency, timing, and filter network applications. Meets industry standards IEC 60286-2 and RoHS compliant. Lead diameter of 0.8 mm and lead length of 4 mm for secure soldering.

Pin count of 2 suitable for radial mounting on printed circuit boards.

This film capacitor is well-suited for electronics manufacturing, test & measurement instruments, HVAC systems, and other industrial applications requiring reliable passive components. It enables circuit designers to achieve precise signal filtering and transient handling.

For additional technical resources including 3D models, schematic footprints, and compliance certificates, consult KEMET product documentation. Explore more capacitors and electronic components in EnvMart’s extensive industrial catalog to match all design requirements.
