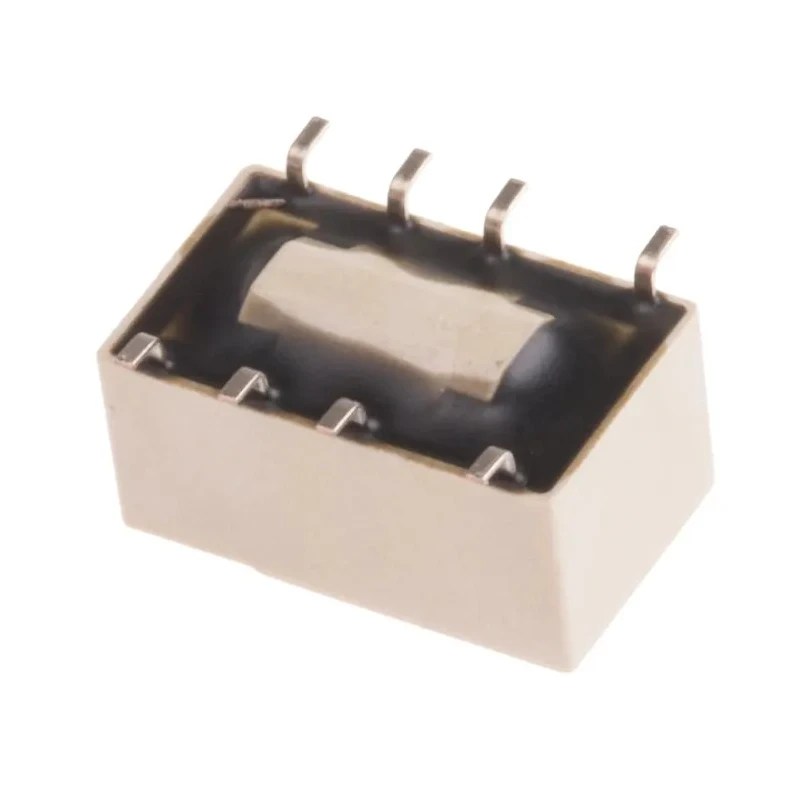

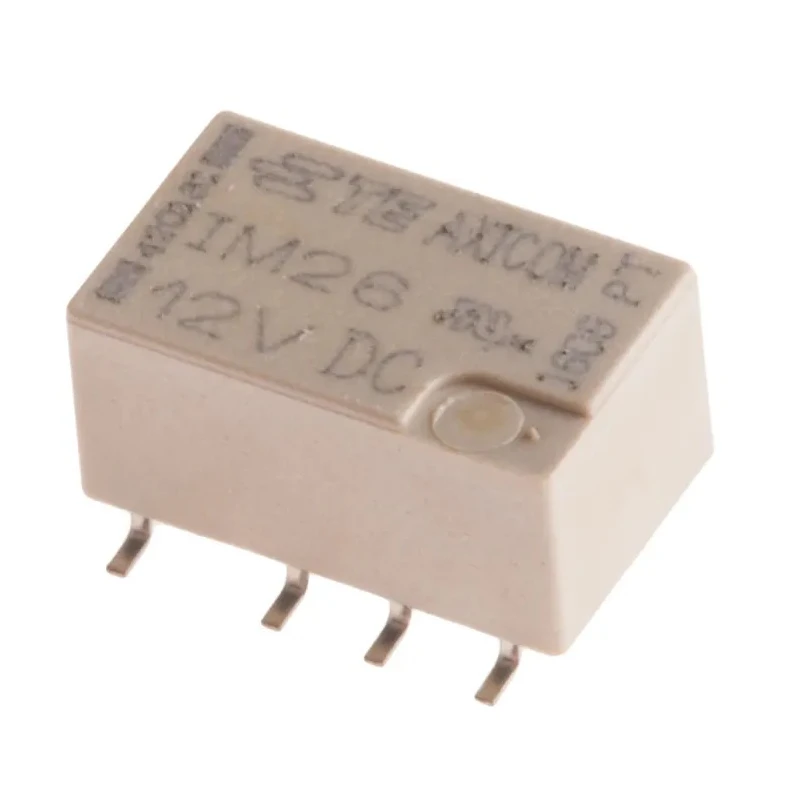

TE Connectivity Surface Signal Relay, 12V dc Coil, 2A Switching Current, DPDT Contact Configuration IM26GR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM26GR |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2800Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 50mW |
Key Features
- Operates with a coil voltage of 12V DC.
- Features a double pole double throw (DPDT) contact configuration.
- Supports a switching current of 2 amperes.
- Surface mount type with solder terminals for PCB applications.
- Gold plated bifurcated contacts ensure high reliability.
- Coil resistance of approximately 2800 ohms and coil power of 50 milliwatts.
- Temperature operating range from -40°C to 85°C.
- Compact dimensions of 10 mm length, 6 mm width, and 5.65 mm height.
Product Description
TE Connectivity IM26GR Surface Signal Relay is a high-performance, DPDT relay with a 12V DC coil designed specifically for surface mounting on printed circuit boards. It supports a switching current of 2A and features gold plated bifurcated contacts for enhanced conductivity and reliability. The compact slimline design measures 10 mm in length, 6 mm in width, and 5.65 mm in height, making it ideal for applications where space is limited.
This relay operates efficiently with a coil resistance of 2800 ohms and coil power consumption of just 50 milliwatts, reducing overall energy usage in control circuits. It is rated for operation in challenging environments with temperature tolerances from -40°C to 85°C.
The surface mount type relay utilizes solder terminals, enabling secure attachment to PCB assemblies. Key features include high mechanical shock resistance up to 300G functional and 500G survival, along with high surge capability to withstand transient voltage spikes.
Its hermetically sealed construction protects internal components from environmental factors. Compliance with RoHS ensures it meets environmental and safety standards, making it suitable for industrial, automation, telecommunications, and electronic control applications.
Operates on 12V DC coil voltage with DPDT contact configuration. 2A switching current capacity and 250V AC / 220V DC switching voltage. Gold plated contacts for superior electrical performance. High reliability with high shock and surge resistance.
Compact slimline design for PCB surface mounting. Low coil power consumption of 50mW. Wide operating temperature range from -40°C to 85°C. Meets RoHS environmental compliance standards.
This relay is ideal for electronics manufacturing, telecom equipment, industrial machinery controls, and other signal switching applications. Browse EnvMart's extensive selection of Signal Relays and TE Connectivity products for your industrial automation needs.
