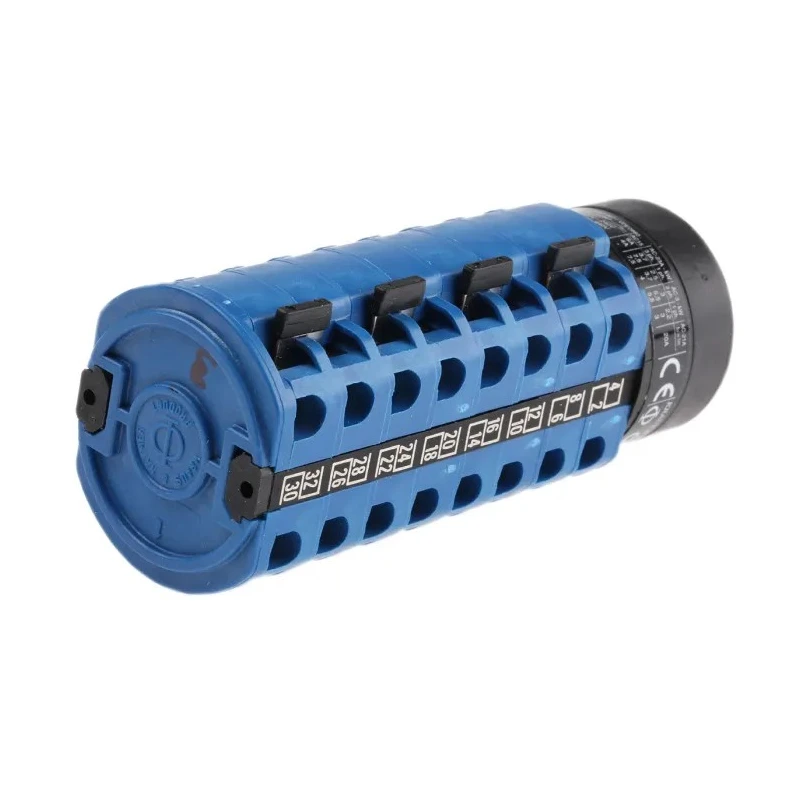

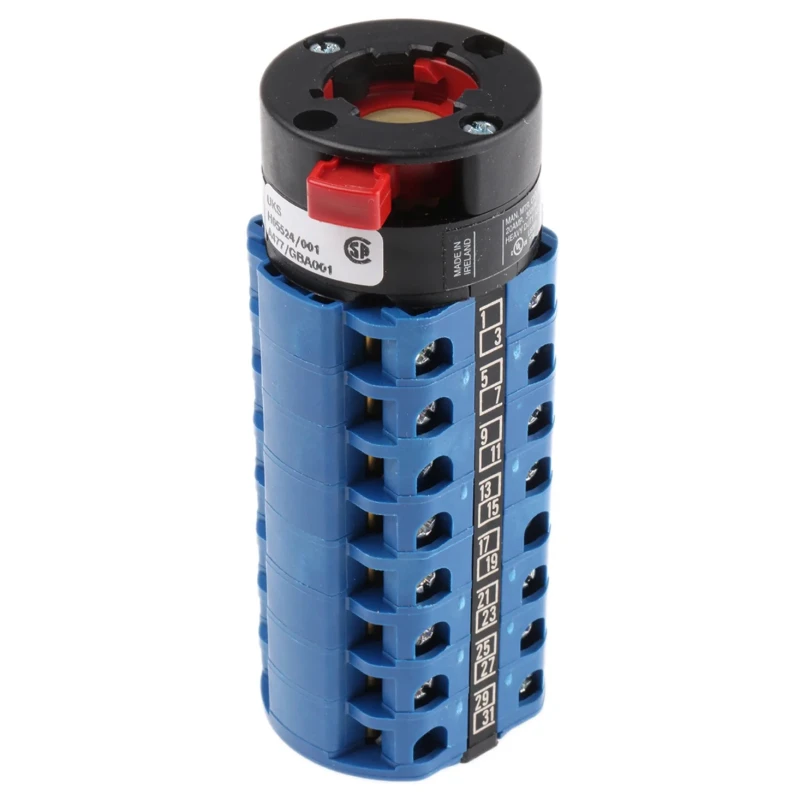

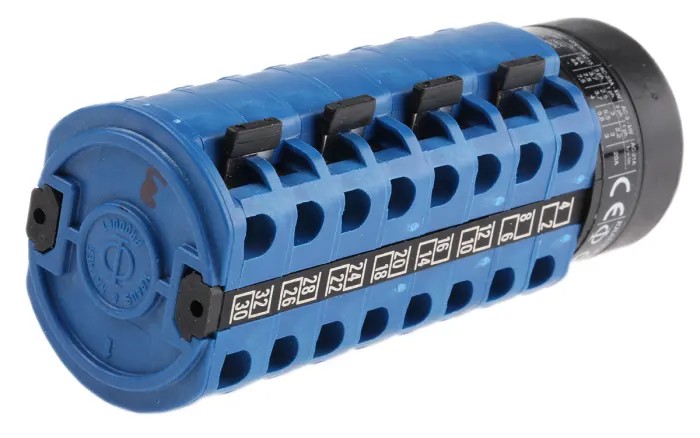

Kraus & Naimer Cam Switch 4 Position 4 Poles 20 A 60 ° Angle of Throw CA10.A477/GBA001.*FT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Kraus & Naimer |
| Length | 48mm |
| Model | CA10.A477/GBA001.*FT |
| IP Rating | IP42, IP65 |
| Width | 48mm |
| Maximum Operating Temperature | 55°C |
| Number of Positions | 4 |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | EN 50022 |
| Mechanical Life | 1000000Operations |
| Contact Voltage | 690V |
| Contact Current | 20A |
| Angle of Throw | 60 ° |
| Kraus & Naimer 4 Position 60 ° 20 ABrand | Kraus & Naimer |
Key Features
- The switch features a 60 ° angle of throw ensuring precise position control.
- Constructed to operate safely from -25°C to 55°C ambient temperatures.
- Designed with screw terminal type for secure electrical connections.
- Offers high mechanical life expectancy of 1,000,000 operations.
- IP42 and IP65 rated for protection against ingress of dust and water.
- Conforms to EN 50022 standards ensuring quality and safety compliance.
Product Description
Kraus & Naimer CA10.A477/GBA001.*FT cam switch is a durable electrical component designed for industrial and commercial electrical switching applications. This cam switch supports 4 positions and 4 poles, rated for a contact current of 20 A and contact voltage of 690 V. The 60 ° angle of throw enables precise position switching essential for automation and control systems.
Engineered to withstand harsh environments, this cam switch has an operating temperature range from -25°C to 55°C. The screw terminal connection type provides secure and reliable electrical terminations. Protection ratings of IP42 and IP65 make it suitable for use in conditions where dust and water resistance are critical.
The switch body measures 48 mm in width and length, designed to fit standard panel sizes, conforming to EN 50022 mounting standards. It boasts a mechanical life of one million operations, ensuring long-lasting performance in demanding electrical systems.
This model CA10.A477/GBA001.*FT from Kraus & Naimer does not include the switch operator, which must be ordered separately for complete functionality. It is ideal for applications in industrial automation, electrical control panels, machine tooling, and building services engineering where reliable multi-position switching is required.
The switch features a 60 ° angle of throw ensuring precise position control. Constructed to operate safely from -25°C to 55°C ambient temperatures. Designed with screw terminal type for secure electrical connections. Offers high mechanical life expectancy of 1,000,000 operations.
IP42 and IP65 rated for protection against ingress of dust and water. Dimensions of the switch are 48 mm width and 48 mm length for standard panel mounting. Conforms to EN 50022 standards ensuring quality and safety compliance.
This cam switch is suitable for various industrial, manufacturing, electrical automation, and HVAC control applications. Browse other Kraus & Naimer models and Cam Switches at EnvMart for your electrical systems and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cam switch has a contact current rating of 20 A.
This model features a 60 ° angle of throw, allowing for precise position control.
It operates safely within a temperature range of -25°C to 55°C.
The switch has IP42 and IP65 ratings for protection against dust and water ingress.
It offers a high mechanical life expectancy of 1,000,000 operations.
The switch measures 48 mm in both width and length, designed for standard panel mounting.
It conforms to EN 50022 standards for quality and safety compliance.
This model is designed with screw terminal connections for secure electrical terminations.
The switch supports 4 positions and 4 poles.
The contact voltage rating is 690 V.
No, the switch operator must be ordered separately for complete functionality.
The cam switch is manufactured in India.
