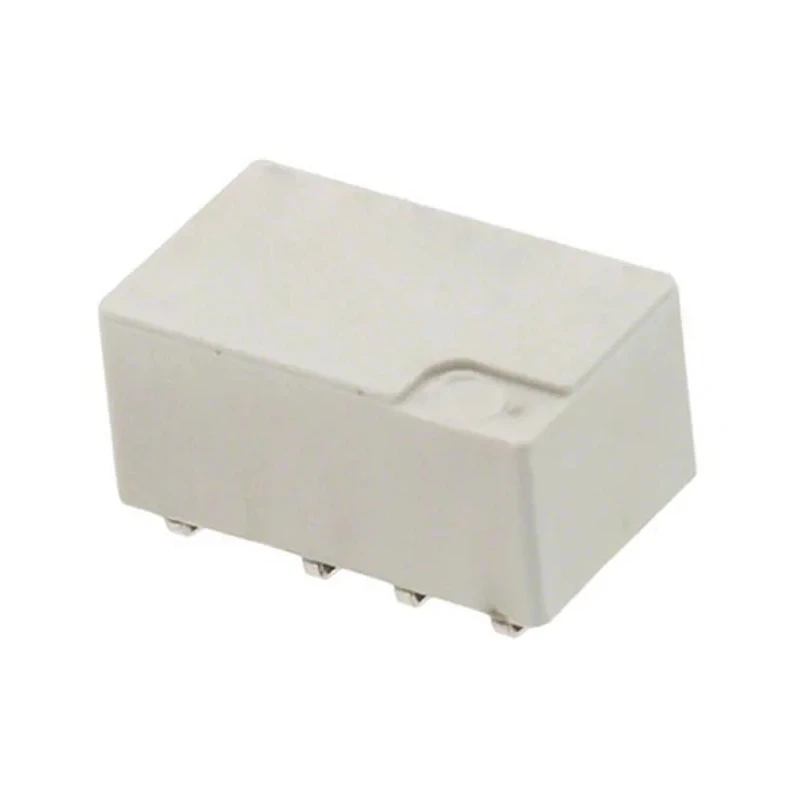

TE Connectivity Surface Signal Relay 5V dc Coil 2A DPDT Mount Type Surface Model 1-1462037-6
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | UL |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- Low profile compact design with dimensions 10mm x 6mm x 5.65mm.
- Gold plated bifurcated contacts ensure high conductivity and reliability.
- Coil power consumption is minimal at 140mW for energy efficiency.
- Wide operating temperature range from -40°C to 85°C suitable for diverse environments.
- Hermetically sealed enclosure rated IP67 for protection against dust and moisture.
- High mechanical shock resistance of up to 300G functional and 500G survival.
- Complies with UL standards and electrical surge requirements for telecom and automotive use.
- Ideal for telecommunication equipment, office, medical, and test instruments.
Product Description
TE Connectivity 1-1462037-6 Surface Signal Relay is a PCB mount relay from the IM series, providing a compact and slimline solution with a low profile of 5.65mm. Designed for surface mount applications, it features a coil voltage of 5V dc and can switch currents up to 2A using its DPDT (double pole double throw) contact configuration.
This relay boasts gold plated bifurcated contacts that enhance electrical conductivity and reduce contact resistance. Its coil consumes only 140mW, making it energy efficient and suitable for prolonged use in sensitive equipment.
The relay is hermetically sealed with RT V rating and IP67 protection, ensuring durability in harsh conditions including dust and moisture exposure. It sustains mechanical shocks up to 300G in operation and 500G survival, making it reliable in vibration-prone environments.
Operating temperature ranges from -40°C to 85°C, allowing deployment in a wide variety of industrial and commercial scenarios. The relay supports switching voltages up to 250V AC and 220V DC, with a switching power rating of 62.5VA.
It meets international standards and approvals including UL certification and surge capability in compliance with Telcordia GR 1089, FCC Part 68, and ITU-T K20/21/45 standards, which certifies its use in telecommunications and automotive sectors.
Typical applications include telecommunication equipment, optical network terminals, office and medical equipment, test instruments, and automotive electronics, providing a versatile and reliable switching solution.
The relay is manufactured in Portugal under strict quality controls, ensuring high reliability and long service life. Low profile slimline PCB mount relay with dimensions 10 mm length, 6 mm width, and 5.65 mm height. Gold plated bifurcated contacts for superior electrical performance.
140mW coil power consumption for energy efficiency. Wide operating temperature range from -40°C to 85°C. Switching ratings: 2A current, 250V AC and 220V DC voltage. Hermetically sealed with IP67 protection for environmental resistance.
High mechanical shock resistance: 300G functional, 500G survival. Meets UL standards and telecom surge requirements. Specialized for applications in telecommunications, automotive, medical, and test equipment.
EnvMart offers this TE Connectivity IM Series Surface Signal Relay suitable for diverse industrial and commercial uses. Browse EnvMart’s comprehensive relay category for more high-quality switching components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 5V DC.
It can switch currents up to 2A.
The dimensions of this relay are 10mm in length, 6mm in width, and 5.65mm in height.
It operates within a temperature range of -40°C to 85°C.
This model features a DPDT (double pole double throw) contact configuration.
The coil power consumption is minimal at 140mW.
The relay has a hermetically sealed enclosure rated IP67, providing protection against dust and moisture.
The contacts are made of gold plated material, ensuring high conductivity.
It complies with UL standards and meets surge requirements for telecom and automotive applications.
The maximum switching voltage is 250V AC and 220V DC.
It has a mechanical shock resistance of up to 300G functional and 500G survival.
This relay is manufactured in Portugal under strict quality controls.
