Littelfuse Non-Resettable Fuse Radial Lead Fast Acting 1.5A, 125 V AC/DC 027301.5H

Free Delivery in India | Lowest Global Shipping Charges

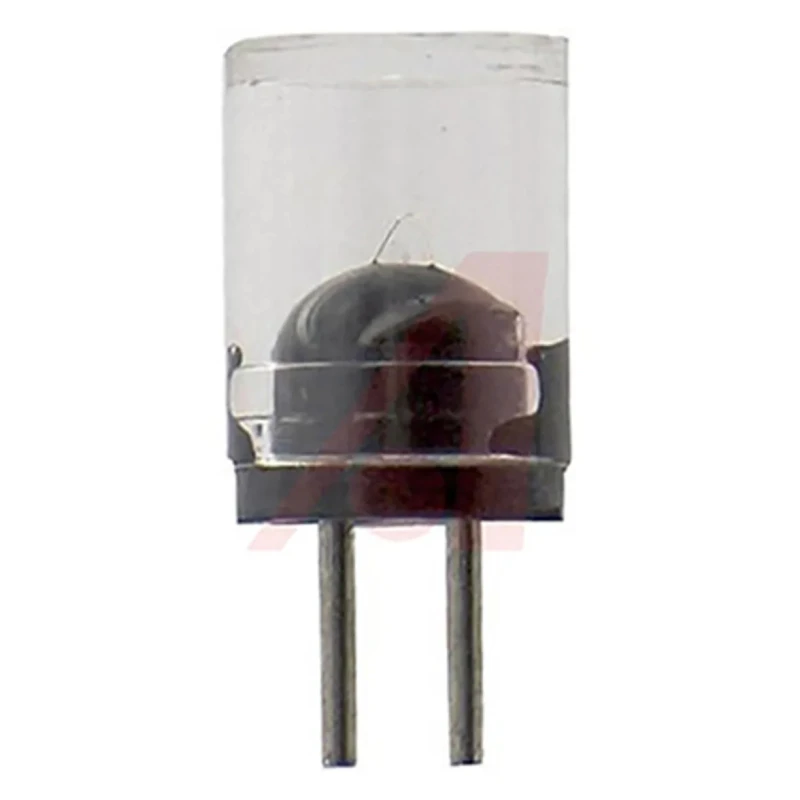

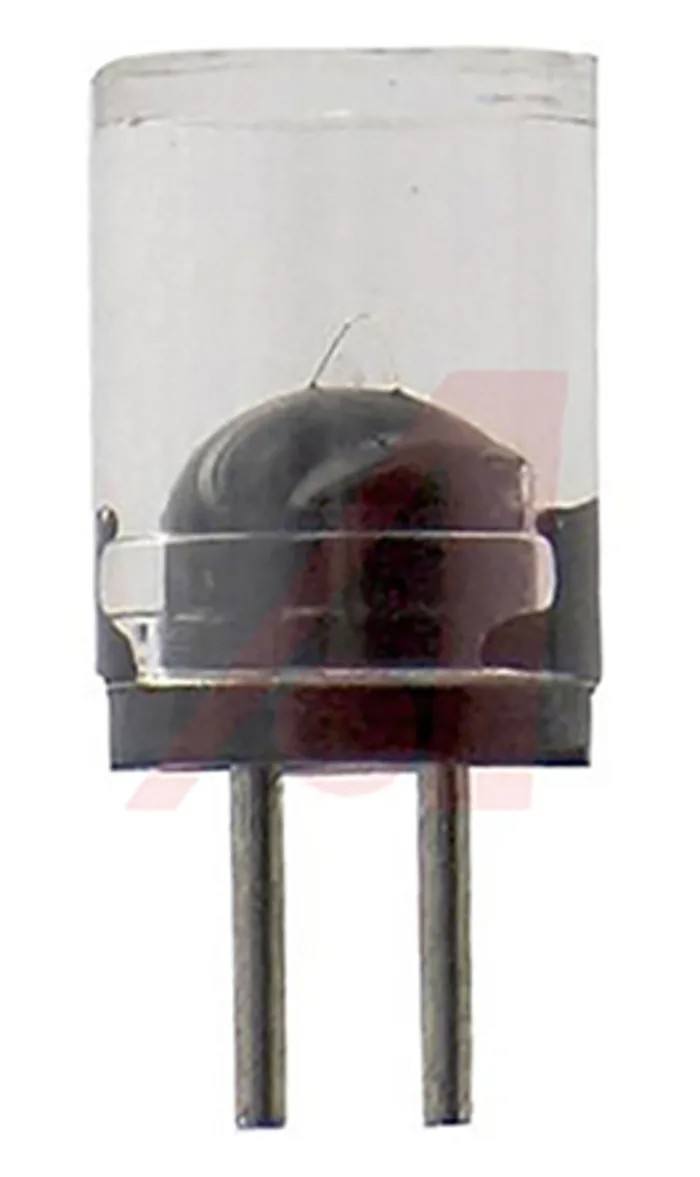

Littelfuse Non-Resettable Fuse Radial Lead Fast Acting 1.5A, 125 V AC/DC 027301.5H

Name: Littelfuse Non-Resettable Fuse Radial Lead Fast Acting 1.5A, 125 V AC/DC 027301.5H
Brand: LITTELFUSE
SKU: 411703
Price: 11.7 USD
Availability: InStock



Category Non-Resettable Fuse Brand LITTELFUSE Condition New

Specifications

Country of Origin	India
Voltage	125, 125V ac
Diameter	6.35mm
Brand	Littelfuse
Body Material	Tin Plated Copper
Height	8.89mm
Length	1in
Model	027301.5H
Current Rating	1.5A
Series	273
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Lead Length	4.32mm
Breaking Capacity	10000A
Standards/Approvals	UL
Lead Diameter	0.025in
Fuse Characteristics	Fast Acting
Lead Orientation	Radial

Key Features

The fuse features a tin plated copper body for reliable conductivity.
It has a diameter of 6.35 mm and a length of 1 inch for standard fitting.
Operating temperatures range from -55°C minimum to 85°C maximum for versatile environmental use.
The fuse has a high breaking capacity of 10,000 amps ensuring robust circuit protection.
Complies with UL standards ensuring safety and quality.
Ideal for applications requiring fast acting overcurrent protection.
Radial lead orientation with 4.32 mm lead length and 0.025 in lead diameter.

Product Description

The Littelfuse 027301.5H is a high-quality non-resettable fuse designed with radial leads and a fast acting (FF) characteristic, rated for 1.5 amps current and 125 volts AC or DC operation. Its tin plated copper body ensures excellent conductivity and durability in compact form, measuring 1 inch in length and 6.35 mm in diameter.

This fuse operates safely within a temperature range spanning from -55°C to 85°C, making it suitable for diverse industrial and electronic applications requiring reliable overcurrent protection. It provides a significant breaking capacity of 10,000 amps, preventing damage to sensitive equipment in case of short circuits or overloads.

Designed originally for demanding missions like the U.S. space program, the Littelfuse MICRO series combines compactness with reliability. The radial lead style and fast acting characteristics make it perfect for circuit protection in electronics, automation, electrical appliances, HVAC systems, and manufacturing equipment.

The fuse features a tin plated copper body for reliable conductivity. It has a diameter of 6.35 mm and a length of 1 inch for standard fitting. Operating temperatures range from -55°C minimum to 85°C maximum for versatile environmental use.

The fuse has a high breaking capacity of 10,000 amps ensuring robust circuit protection. Complies with UL standards ensuring safety and quality. Ideal for applications requiring fast acting overcurrent protection. Radial lead orientation with 4.32 mm lead length and 0.025 in lead diameter.

This Littelfuse fuse is a dependable choice for designers and engineers seeking compact, high-performance fuses to safeguard electronic circuits against excessive current effectively. It is especially useful in industrial automation, electronics manufacturing, control panels, and electrical systems demanding high reliability and safety.
