Alpha Wire Ecogen Ecocable Mini Control Cable, 2 Cores 0.09mm² 28 AWG Unshielded Grey Modified Polyphenylene 300 78002 SL005

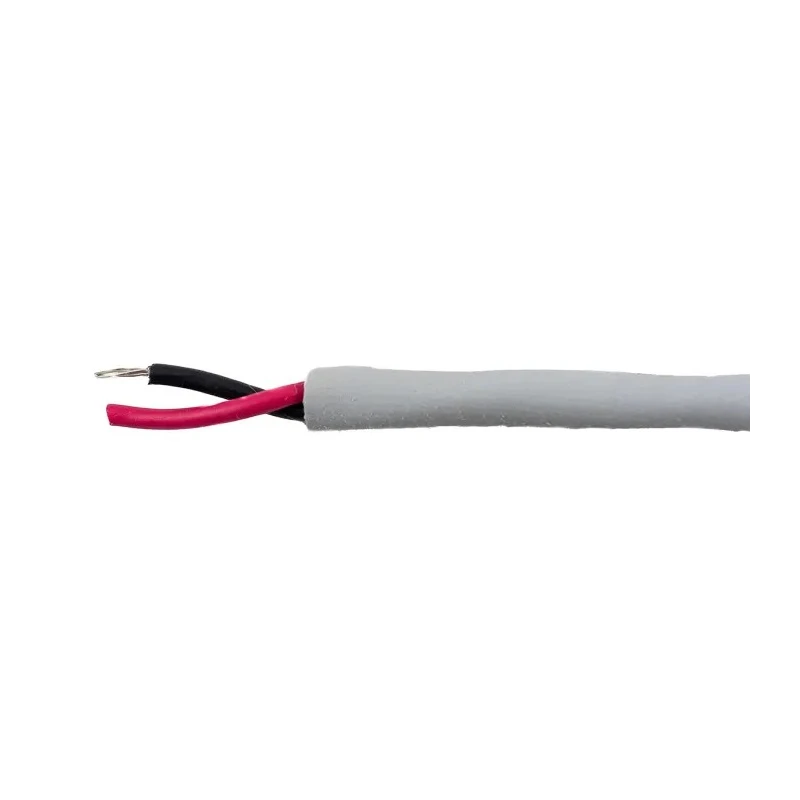

Alpha Wire 78002 SL005 Ecogen Ecocable Mini Control Cable is a high-quality control cable designed for demanding electrical and automation applications. It features 2 unscreened, stranded tin copper conductors, each 0.09mm² (28 AWG) in size, providing excellent conductivity and flexibility.

The cable bears a grey Modified Polyphenylene Ether (mPPE) jacket and insulation, which is fully recyclable and offers superior dielectric properties. This jacket allows for a thinner and lighter cable construction compared to traditional PVC equivalents, without compromising on durability. It is rated at 300 V and operates reliably across temperature extremes from -40°C to 80°C while maintaining a halogen-free fire behavior for enhanced safety.

The 78002 SL005 cable's physical characteristics include an outside diameter of 2.39 mm, with a jacket thickness of 0.015 inch (0.38 mm) and insulation thickness of 0.007 inch (0.18 mm). Featuring 19 strands per conductor, the stranded conductor arrangement provides flexibility needed for dynamic industrial environments.

The cable contains two conductors in black and brown colors for easy identification. It meets rigorous standards including UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, RoHS, REACH, WEEE, and ISO 10993-5 certifications for safety and environmental compliance.

This control cable is ideal for use in communications, electronic circuits, telecommunication, radio transmitters, automation systems, and NFPA 79 compliant industrial machinery applications, offering excellent electrical performance and reliability.

The lightweight, low outgassing, halogen-free mPPE material also makes the cable an environmentally responsible choice for modern industrial wiring. Explore a wide range of Control Cables at EnvMart designed to meet high standards of quality and performance for industrial, commercial, and manufacturing uses.
