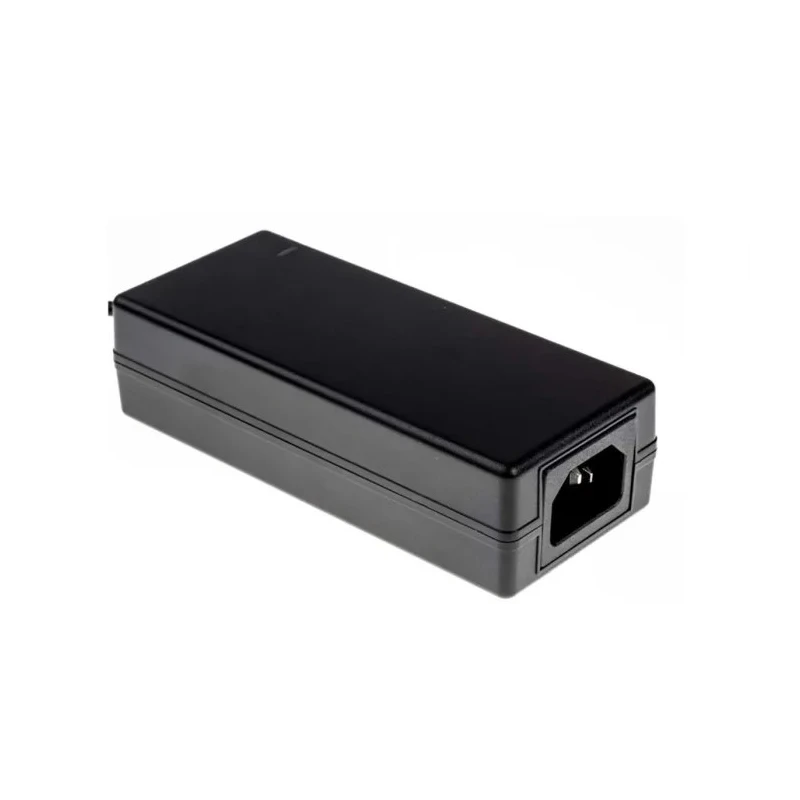

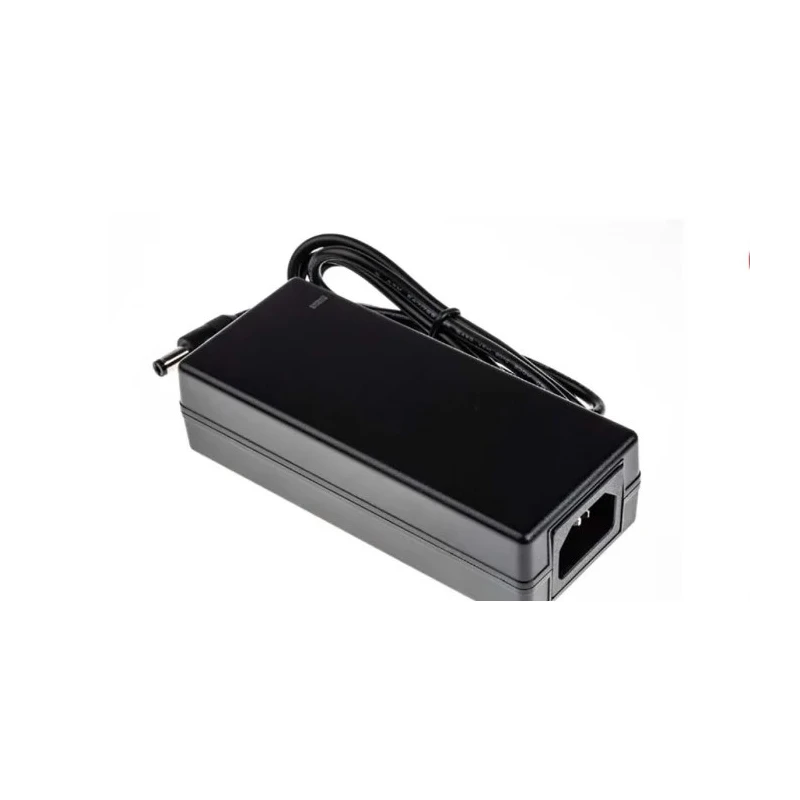

RS PRO 2.1 x 5.5 x 11 mm Centre Positive Power Adapter AC/DC Adapter IEC 320 C14 60 W 12V DC Output 5 A 204-7563
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Power | 60W |
| Efficiency | 88% |
| Dimensions | 120mm x 52.5mm x 36mm |
| Length | 120mm |
| Model | 204-7563 |
| Depth | 36mm |
| Width | 52.5mm |
| Series | RS PRO |
| Maximum Operating Temperature | 40°C |
| Sub Type | Power Adapter |
| Load Regulation | ±5 % |
| Minimum Operating Temperature | 0°C |
| Plug Type | IEC 320 C14 |
| Output Voltage Rating | 5V to 48 V dc |
| Number of outputs | 1 |
| Maximum Input Voltage | 240V ac |
| Output Voltage | 12V dc |
| Standards/Approvals | FCC, TUV, UL, CCC, CE, cULus |
| Minimum Input Voltage | 90V ac |
| Output Connector Type | 2.1 x 5.5 x 11 mm Centre Positive |
| Input Connector Type | IEC 320-C14 |
| Adapter Current | 5A |
| Energy Efficiency Level | VI |
| RS PRO AC/DC AdapterBrand | RS PRO |
| RNDBrand | RND |
| Rated Output Power | 40W to 72 W |
Key Features
- This switched mode power supply provides reliable voltage regulation.
- Equipped with IEC 320 C14 plug input and a 2.1 x 5.5 x 11 mm centre positive output connector.
- Built to operate between 0°C to 40°C ambient temperature safely.
- Certified to international safety standards including FCC, TUV, UL, CCC, CE, and cULus.
- Compact design with dimensions 120mm x 52.5mm x 36mm and efficiency rated at 88%.
- Includes overload and short circuit protection with automatic fault recovery for secure operation.
- Supports input voltage range from 90V AC to 240V AC making it compatible worldwide.
- Ideal for powering electronic devices like CCTV cameras, chargers, and audio equipment.
Product Description
RS PRO 204-7563 AC/DC Adapter is a dependable desktop power supply designed to provide 12V DC output with 5 A current and 60 W power, suitable for various electronic and IT applications. Built with a switched mode power supply architecture, it ensures stable output voltage with ±5% load regulation, enhancing connected device safety and performance.

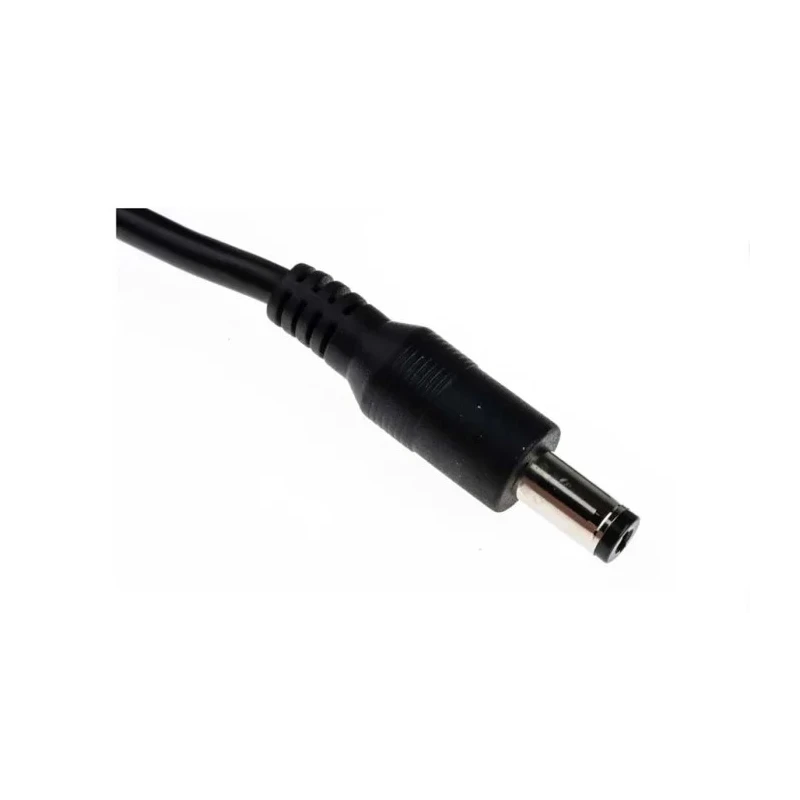

This power adapter features an IEC 320-C14 input connector and a 2.1 x 5.5 x 11 mm centre positive DC output connector, supporting a single output channel. Its compact dimensions of 120mm length, 52.5mm width, and 36mm depth make it suitable for limited space applications.
Engineered with an enclosed plastic case and an IP20 rating, the adapter offers protection from solid objects and provides safe handling. It operates efficiently at 88% energy conversion with compliance to safety standards including UL62368-1, EN 62368-1, and IEC 62368-1, ensuring international safety and reliability.
With an operating temperature range between 0°C and 40°C, it can be used in typical indoor environments. The wide input voltage range from 90V AC to 240V AC supports global compatibility. Overload protection with hiccup mode and short circuit safeguards provide automatic recovery after fault removal, enhancing durability and user safety.
This RS PRO desktop power supply suits applications such as powering CCTV cameras, lamps, speakers, chargers, and other low-power devices. It is ideal for industrial, laboratory, communication, and commercial use cases requiring a reliable 12V DC source.
This switched mode power supply provides reliable voltage regulation. Equipped with IEC 320 C14 plug input and a 2.1 x 5.5 x 11 mm centre positive output connector. Built to operate between 0°C to 40°C ambient temperature safely.
Certified to international safety standards including FCC, TUV, UL, CCC, CE, and cULus. Compact design with dimensions 120mm x 52.5mm x 36mm and efficiency rated at 88%. Includes overload and short circuit protection with automatic fault recovery for secure operation.
Supports input voltage range from 90V AC to 240V AC making it compatible worldwide. Ideal for powering electronic devices like CCTV cameras, chargers, and audio equipment. Browse other high quality RS PRO power supplies and AC/DC Adapters on EnvMart for reliable electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adapter provides a 12V DC output with a maximum current of 5A, delivering a total power of 60W.
It supports an input voltage range from 90V AC to 240V AC, making it compatible for use worldwide.
The dimensions are 120mm in length, 52.5mm in width, and 36mm in depth.
It features a 2.1 x 5.5 x 11 mm centre positive output connector.
It is certified to international safety standards including FCC, TUV, UL, CCC, CE, and cULus.
It operates safely within an ambient temperature range of 0°C to 40°C.
Yes, it includes overload protection with hiccup mode and short circuit safeguards, providing automatic recovery after fault removal.
The load regulation is specified at ±5%, ensuring stable output voltage under varying loads.
It uses an IEC 320-C14 input connector.
The power adapter is manufactured in China.
