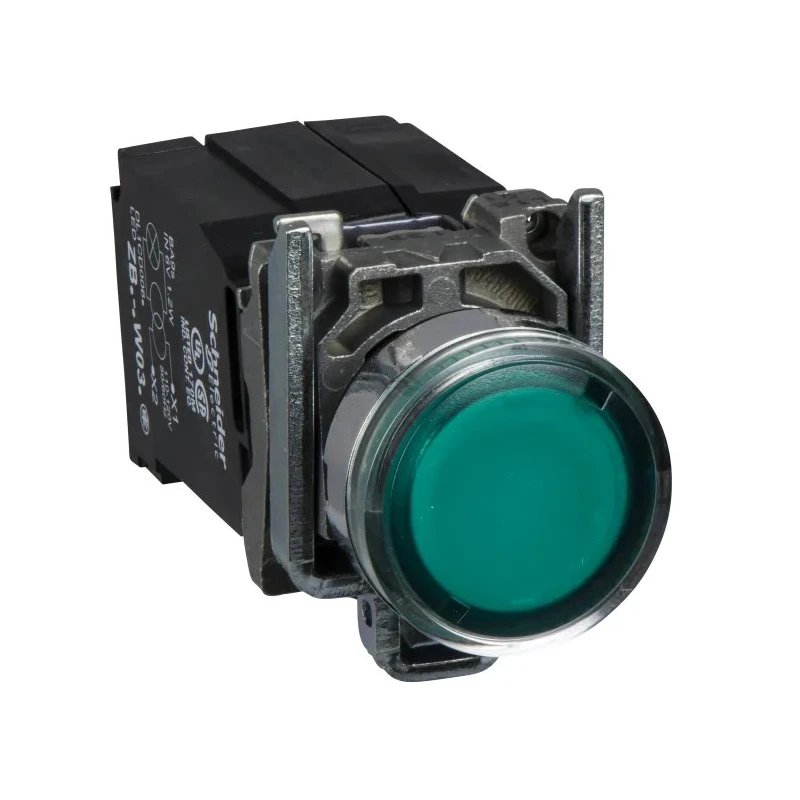

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB4BW3335

Name: Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB4BW3335
Brand: Schneider Electric
SKU: 410354
Price: 136.42 USD
Availability: InStock



Category Push Button Switch Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Height	47mm
Length	101mm
Model	XB4BW3335
Width	30mm
Mount Type	Panel
Series	Harmony XB4
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Switch Configuration	1 NO/1 NC
Minimum Operating Temperature	-25°C
Panel Cutout Size	22 mm
Terminal type	Screw
LED Colour	Green
Switch Operation	Spring Return
Actuator Colour	Green
Contact DC Voltage	600V
Actuator Style	Round
Switch Contact Current	10A
Better World Claim	Repairable by the End User
Legend	Blank

Key Features

The switch features a green illuminated round actuator with a 22 mm panel cutout.
It is designed for panel mounting with screw terminal type connections.
The device operates reliably in temperatures from -25°C up to 55°C.
It supports 600V AC and DC contact voltage with a 10A contact current rating.
The switch is constructed with a chromium plated metal bezel ensuring durability.
Suitable for use in industrial automation, electrical panels, and control systems.
This model is compliant with EN/IEC 60947 standards as well as UL 508 and CSA C22.2 certifications.
It is repairable by the end user, aligned with sustainability initiatives.

Product Description

Schneider Electric XB4BW3335 Illuminated Push Button Switch is part of the Harmony XB4 series, designed for industrial and electrical automation applications. This switch features a green illuminated round actuator with a spring return mechanism, making it ideal for control panels requiring visual indication and momentary action.

The switch mounts on panels with a 22 mm cutout, equipped with screw terminals for secure wiring. It operates with a SPDT (single pole double throw) configuration, providing 1 normally open (NO) and 1 normally closed (NC) contact for versatile circuit control.

Designed to perform reliably in harsh environments, it operates effectively within a temperature range of -25°C to 55°C. The switch supports contact voltages up to 600V AC/DC and can handle current up to 10A, ensuring compatibility with a variety of control circuits.

The robust chromium plated metal bezel adds to the durability and aesthetic appeal suitable for panel mount installations. Compliance with international standards such as EN/IEC 60947, UL 508, and CSA C22.2 highlights its industrial reliability and safety.

This Push Button Switch is also aligned with sustainability goals as it is repairable by the end user, reducing waste and enhancing product life. Typical use cases include electrical panels, automation systems, HVAC control, and manufacturing equipment control.

The switch features a green illuminated round actuator with a 22 mm panel cutout. Spring return mechanism ensures momentary return to the off position. SPDT contact configuration with 1 NO and 1 NC contact provides flexible control.

Supports screw terminal connections for reliable wiring. Rated for 10A contact current at 600V AC/DC for electrical compatibility. Chromium plated metal bezel construction for durability. Operates across a wide temperature range from -25°C to 55°C.

Complies with multiple international standards for safety and performance. Repairable design supports sustainability and long-term use.

Discover a wide range of electrical switches and components at EnvMart tailored for industrial, electrical, and automation applications. Explore our Schneider Electric branded products for trusted quality and reliability.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a SPDT (single pole double throw) contact configuration, providing 1 normally open (NO) and 1 normally closed (NC) contact for versatile circuit control.

It operates reliably within a temperature range of -25°C to 55°C, making it suitable for various industrial environments.

The switch supports a maximum contact voltage of 600V AC and DC, ensuring compatibility with a variety of control circuits.

It is equipped with screw terminals, allowing for secure wiring connections during installation.

This model has a height of 47 mm, a length of 101 mm, and a width of 30 mm, making it suitable for standard panel cutouts.

The actuator style is round, and it features a green color, providing visual indication when activated.

It is rated for a contact current of up to 10A, which allows it to control various electrical loads effectively.

Yes, it complies with EN/IEC 60947, UL 508, and CSA C22.2 standards, ensuring its reliability and safety for industrial applications.

The switch requires a panel cutout size of 22 mm for proper mounting.

Yes, the design is repairable by the end user, which aligns with sustainability initiatives by reducing waste and enhancing product life.

It operates with a spring return mechanism, ensuring that it returns to the off position after being pressed.

This switch is suitable for use in industrial automation, electrical panels, HVAC control, and manufacturing equipment control.
