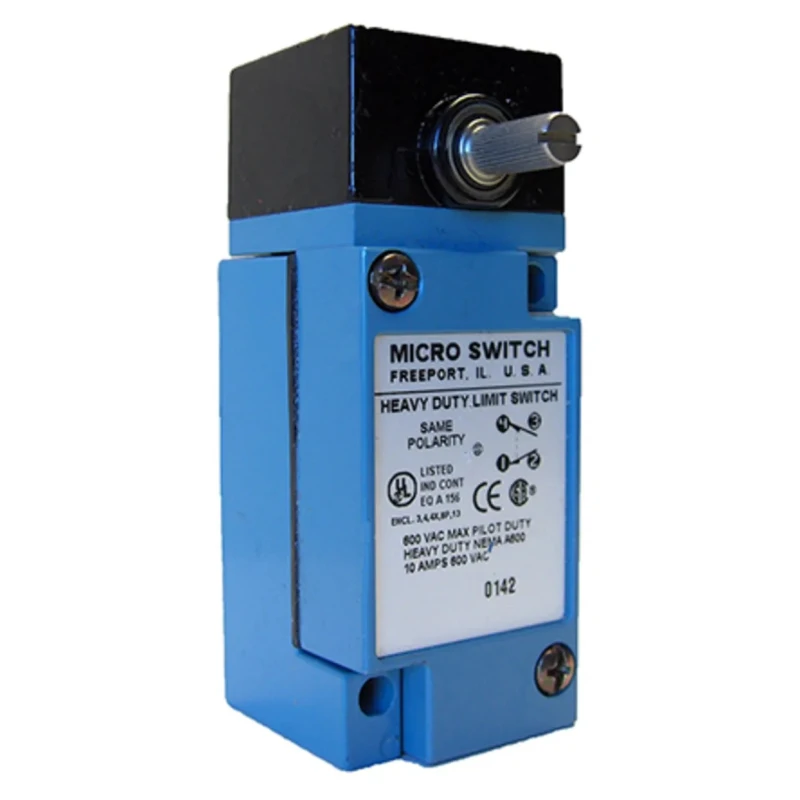

Honeywell Technologies HDLS Series Side Rotary Limit Switch, DPDT Contact, IP67, IP66, IP65, Die Cast Zinc Epoxy LSA7L

Honeywell LSA7L is a HDLS Series Side Rotary Limit Switch engineered for precise control in industrial, electrical automation, and mechanical systems. It features a side rotary actuator designed to detect and control rotary motion, providing snap-action switching for reliable position sensing under demanding conditions.

The device is housed in a robust die cast zinc enclosure with epoxy coating, conforming to IP67, IP66, and IP65 ingress protection standards to withstand dust, water jets, and temporary immersion. Rated for switching electrical loads up to 600V AC and 250V DC, it delivers dependable performance in control circuits.

The LSA7L model operates within a temperature range of -12°C to 121°C, supporting applications in harsh environments. It offers a DPDT contact configuration with snap-action contacts that ensure fast and positive switching responses. The mechanical life expectancy is 50 million cycles, ensuring extended operational reliability.

This limit switch is designed for side mounting, allowing the rotary actuator to interface directly with existing machine linkages. It features a standard 1/2 inch to 14 NPT conduit entry to simplify wiring installation. The required operating torque for actuator engagement is 0.45 N·m, enabling smooth and efficient operation.

Typical applications include conveyor end-of-travel detection in manufacturing lines, valve position feedback in process control systems, motor starter shutdown operations, and safety interlock sensing on access panels in industrial settings.

DPDT contact arrangement provides flexible circuit control. Snap-action contacts deliver fast and positive switching response. Robust die cast zinc epoxy-coated housing enhances durability. High ingress protection with IP65, IP66, and IP67 ratings.

Rated for 600V AC and 250V DC switching capability. Designed for side mounting with rotary actuator orientation. Operating temperature suited for -12°C to 121°C ambient conditions. Long mechanical life of 50 million operational cycles.

Accepts standard 1/2 in to 14 NPT conduit fittings for wiring. Low operating force requirement of 0.45 N·m torque.

This Honeywell LSA7L series limit switch is an essential component for industrial automation systems requiring reliable rotary position detection and control. It meets multiple international standards including IEC, EN, UL, CSA, CE, CCC, and complies with RoHS directives.
