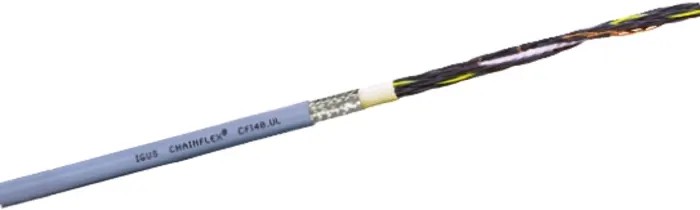

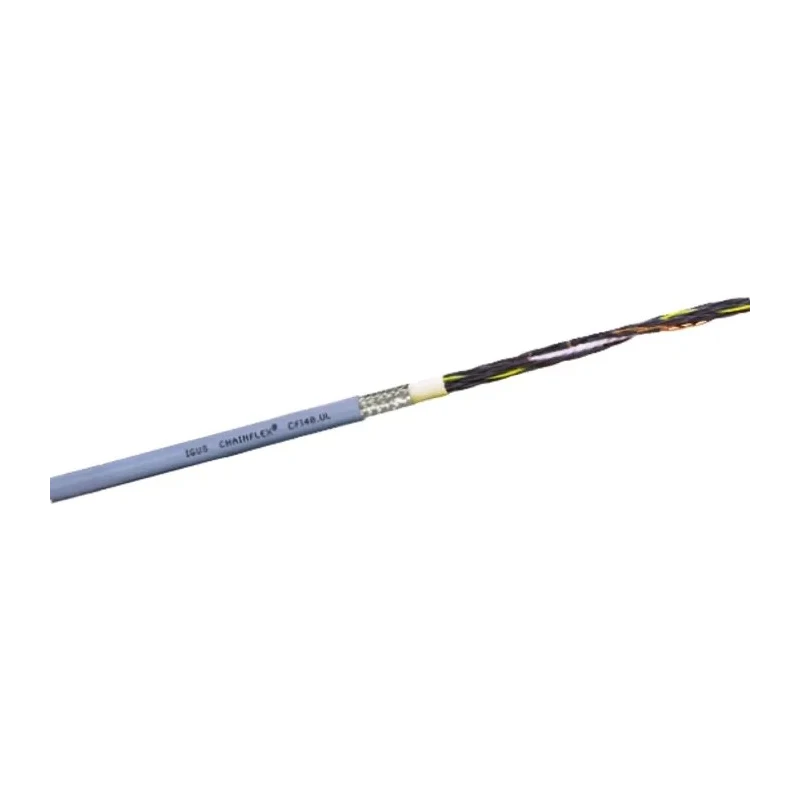

Igus Chainflex CF140.UL Control Cable, 4 Cores, 1mm² 17 AWG, Screened, 25 m Length, Thermoplastic Elastomer CF140.10.04.UL
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF140.10.04.UL |
| Cable Length | 25m |
| Series | Chainflex CF140.UL |
| Outside diameter | 9.5mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 17AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 1mm² |
Key Features
- The cable has a thermoplastic elastomer grey sheath ensuring durability.
- It is designed for medium load requirements and preferably for indoor operations.
- Rated for voltages 300 to 500 V with flame retardant properties according to IEC 60332-1-2.
- Operating temperature ranges from -5°C to 70°C for reliable performance.
- Suitable for freely suspended travel distances and gliding applications up to 50 meters.
- Conforms to CE and EN standards making it safe for industrial use.
- Armoured construction offers enhanced mechanical protection.
- Certified flame retardant (FT1, VW1-1) ensuring safety in hazardous environments.
Product Description
Igus CF140.10.04.UL Control Cable is a high-quality, screened and armoured control cable suitable for industrial and automation applications. Featuring 4 cores of fine-wire stranded bare copper conductors with a cross section of 1mm² (17 AWG), this cable offers excellent conductivity and flexibility.
The thermoplastic elastomer grey jacket provides outstanding durability and resistance to external influences. Designed for medium load applications, it is especially suitable for indoor use, supporting freely suspended travel distances and gliding movements up to 50 meters.
Rated for voltages of 300 and 500 V, the cable complies with flame retardant standards IEC 60332-1-2, CEI 20-35, FT1, and VW1-1 ensuring reliable fire safety performance in industrial environments.
4 cores with 1mm² cross-sectional area and 17 AWG stranded bare copper conductors. Thermoplastic elastomer sheath in grey, providing robustness and flexibility. Armoured and screened construction for mechanical protection and signal integrity.
Operating temperature range from -5°C to 70°C for reliable usage in varying environments. Flame retardant certification makes it safe for use in industrial and automation equipment. Compliant with CE and EN standards for quality assurance.
Originating from Germany, this new product assures durability and effective performance in electrical power and industrial cable applications including industrial automation, manufacturing plants, and machinery control systems.
Explore our complete range of industrial Control Cables on EnvMart for your automation and electrical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for voltages of 300 to 500 V, making it suitable for various industrial applications.
The maximum operating temperature for this control cable is 70°C, allowing it to function effectively in a range of environments.
This model features 4 cores, each with a cross-sectional area of 1mm² (17 AWG), providing excellent conductivity and flexibility.
The jacket of this control cable is made from thermoplastic elastomer, which offers durability and resistance to external influences.
The cable has a length of 25 meters, suitable for various installation needs in industrial settings.
This model is certified flame retardant according to IEC 60332-1-2, FT1, and VW1-1, ensuring safety in hazardous environments.
This cable is designed primarily for indoor operations and medium load applications, making it less suitable for outdoor use.
The outside diameter of this control cable is 9.5 mm, which is important for installation and compatibility considerations.
The conductors are made of stranded bare copper, which enhances conductivity and flexibility.
The cable conforms to CE and EN standards, ensuring compliance with safety and quality regulations for industrial use.
The minimum operating temperature for this control cable is -5°C, allowing it to operate in cooler environments.
This model is suitable for industrial automation, manufacturing plants, and machinery control systems, supporting freely suspended travel distances and gliding movements up to 50 meters.
