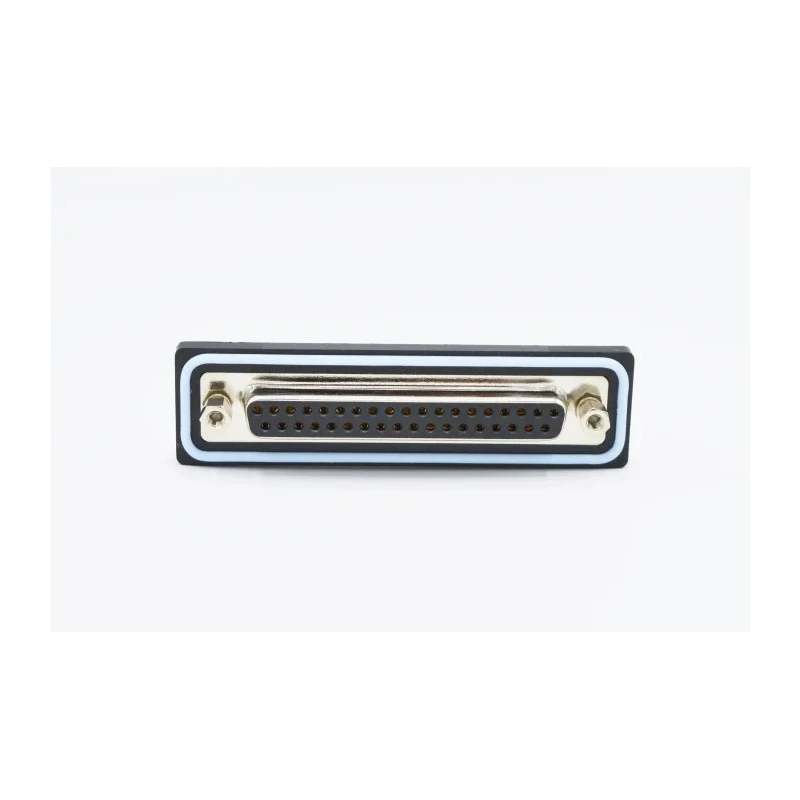

Norcomp 37 Way Right Angle 2.77 mm Pitch Surface Mount Female D-Sub Connector SDF-R37-213L011

Norcomp SDF-R37-213L011 is a high-quality 37-way right angle surface mount female D-Sub Connector designed for industrial and electronic applications. Featuring a 2.77 mm pitch and standard D-sub configuration, this connector is optimized for reliable PCB mounting and connection integrity.

The connector housing is made from robust polybutylene terephthalate (PBT), which complies with UL 94V-0 standards, ensuring thermal and mechanical stability. The contacts are crafted from brass with a gold plating finish, providing excellent electrical conductivity and long-term corrosion resistance.

This model supports a current rating of 5A and voltage rating of up to 1000V AC, with a high insulation resistance of 5 Gohms. The connector includes a nickel-plated steel shell and silicon O-ring, achieving an IP67 environmental protection rating, suitable for use in humid or dusty industrial environments.

The right angle orientation and 4-40 screw mounting hardware facilitate secure and compact PCB assembly, optimizing space saving in electronic device designs. Operating temperature ranges from -25°C to +85°C allow use in diverse industrial, manufacturing, laboratory, and control system environments.

Norcomp SDF-R37-213L011 is ideal for applications requiring sturdy, reliable connectors in power, control, and signal transmission systems. It is commonly used in industrial automation, instrumentation, telecommunications, and electronic equipment manufacturing.

Designed for PCB surface mounting with female connector and D-sub standard. 37 contacts rated for 5A current and 1000V voltage withstand. Right-angle orientation suitable for compact electronic assemblies. Constructed with polybutylene terephthalate housing for high durability.

Contacts are brass with gold plating ensuring excellent conductivity and corrosion resistance. Operating temperature range from -25°C to 85°C for reliable performance. Connector mounting hardware uses 4-40 screws for secure attachment.

IP67 rated with nickel-plated steel shell and silicon O-ring for environmental sealing. Meets insulation resistance of 5 Gohms, ensuring electrical safety. Manufactured in Taiwan, Province Of China with SDF series specifications.
