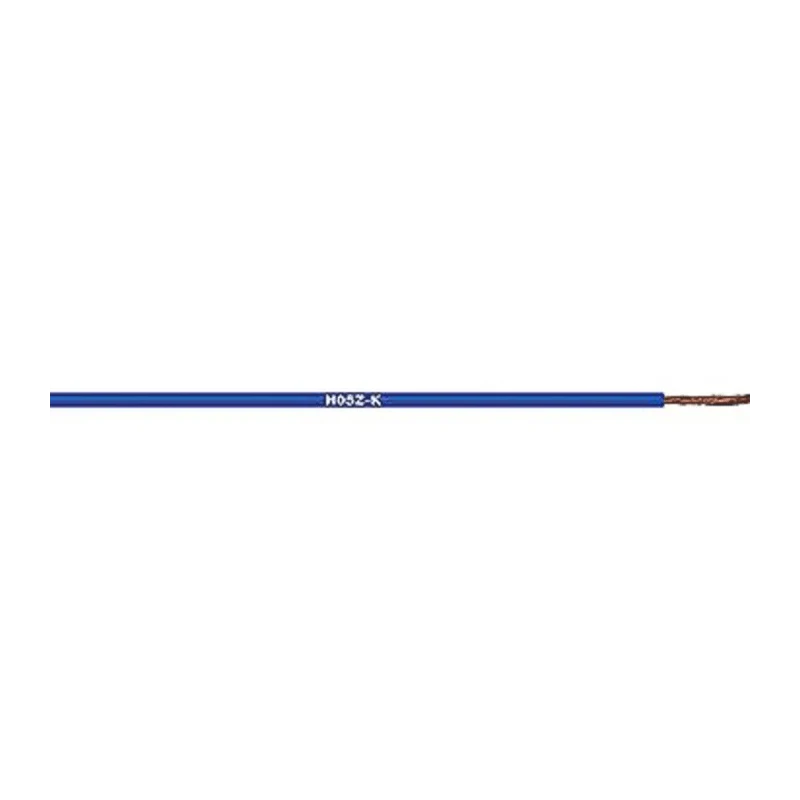

Lapp H05Z-K Series Blue 0.5 mm² Low Smoke Zero Halogen (LSZH) Cross Linked Insulation Hook Up Wire, 100 m, Voltage 4725021

Lapp 4725021 H05Z-K Series Blue 0.5 mm² Hook Up Wire features low smoke zero halogen (LSZH) cross linked insulation providing enhanced fire safety by reducing toxic smoke and halogen emissions in case of fire. This single core cable is constructed with bare copper conductor and a blue LSZH jacket, making it suitable for internal wiring of electrical appliances and fittings where human safety is a priority.

Operating at 300 and 500 volts with a maximum operating temperature of 90°C, this wire can be installed in dry rooms, within conduits or sealed trunking. It complies with harmonized cable standards and certifications including EN 50525-3-41, EAC, and CE, ensuring reliable performance in industrial environments.

The flame retardant and halogen free properties comply with IEC 60332-1-2 and IEC 60754-1 standards respectively, making this wire highly suitable for use in areas requiring stringent fire safety measures such as underground railway systems, ships, power plants, and nuclear facilities. Its reduced smoke density rating per IEC 61034 adds further safety advantages in emergency situations.

Typical applications include wiring in control cabinets, switchgear, and distribution boxes in industrial, manufacturing, and commercial settings. The cable length of 100 meters and diameter of 2.6 mm facilitate flexible installation.

Low smoke zero halogen (LSZH) cross linked insulation for enhanced fire safety. Constructed with bare copper conductor for excellent electrical conductivity. Rated for 300 and 500V operation with a maximum temperature of 90°C.

Certified to EN 50525-3-41, EAC, and CE harmonized standards. Suitable for dry room installation in conduits, trunking, and control cabinets. Flame retardant per IEC 60332-1-2 and low smoke density per IEC 61034. Halogen free core meeting IEC 60754-1 standard.

Ideal for underground railway, maritime, power plant, and nuclear applications requiring reduced toxic gas emissions during fire. Flexible 100 m length blue wire with 2.6 mm diameter.

Lapp products offer reliable electrical wiring solutions that combine safety, performance, and compliance. Explore the full range of high quality cables and wires at EnvMart for your industrial and commercial electrical projects.
