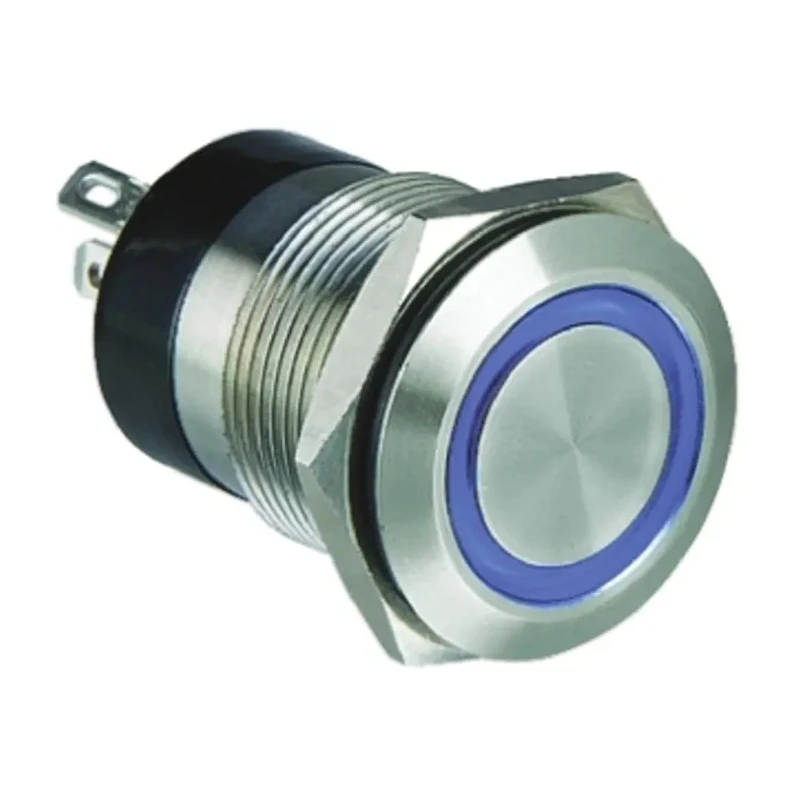

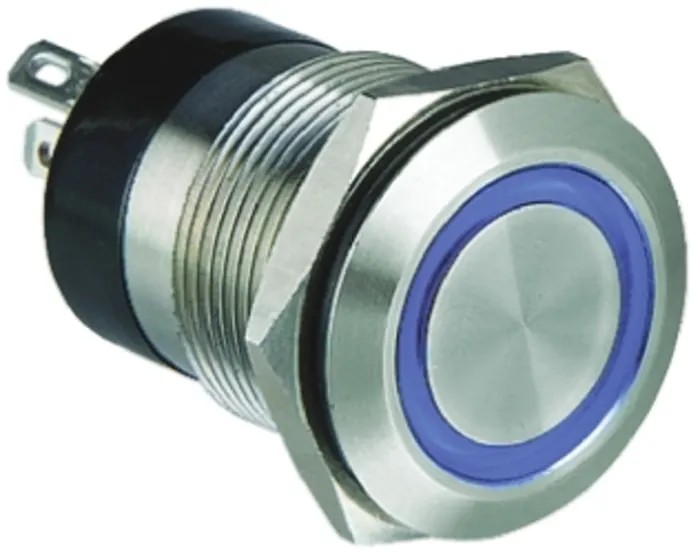

Bulgin Illuminated Momentary Push Button Switch Panel Mount SPST Blue LED IP66 24 V dc MPI002

Bulgin MPI002 illuminated momentary push button switch is engineered for robust panel mount integration with a precise 19.2 mm panel cutout size. This switch operates with a single pole, single throw (SPST) configuration, making it ideal for simple on/off control circuits. The actuator is crafted from stainless steel with a vandal resistant design and finished in silver, providing durability and resistance to wear and tear.

The switch is illuminated with a blue LED, operating at 24 V dc, ensuring clear status indication in applications requiring visual feedback. It is fully sealed to an IP66 rating, offering excellent protection against ingress of dust and water, making it suitable for harsh industrial environments and outdoor installations.

Its operating temperature range from -30°C to 70°C allows for deployment in a variety of temperature conditions typically encountered in automation, industrial control panels, and electrical distribution boards. With a switch contact current of 50 mA, the device is optimized for low current circuit switching.

The mount type is panel mount, with termination available in tab form for convenient wiring. Bulgin provides integral supply resistor configurations for 6V, 12V, and 24V LED versions, enhancing ease of use without external components. The overall length depends on termination, with 35 mm plus 300 mm flying leads or 32.7 mm with 2.8 mm solder tags, allowing compatibility with different installation requirements.

This push button switch is RoHS compliant, emphasizing Bulgin's commitment to environmentally responsible manufacturing. The device originates from Tunisia and reflects high-quality engineering standards suitable for electrical panel applications, automation systems, and control equipment in industrial, manufacturing, and laboratory settings.

Bulgin MPI002 series switches combine robust materials, reliable electrical performance, and protective sealing design for demanding operational needs. Use cases span industrial control panels, security systems, HVAC controls, and automated machinery interfaces.

Explore a wide range of Push Button Switches and panel mounting accessories in the Electronics & Electricals category at EnvMart for comprehensive solutions that enhance your electrical projects.

The switch operates with a single pole, single throw (SPST) contact configuration. It features a vandal-resistant stainless steel actuator with a silver finish. The LED illumination is blue and rated for 24 V dc operation.

The device is fully sealed to IP66 standard, ensuring resistance to dust and water ingress. Operating temperature ranges from -30°C to 70°C suitable for varied industrial environments. Switch contact current rating is 50 mA, suitable for low current control circuits.

Mount type is panel mount with tab terminals for easy installation. The switch comes with integral supply resistor options for 6V, 12V, and 24V variants. Overall length varies depending on termination type, with flying leads or solder tags.
