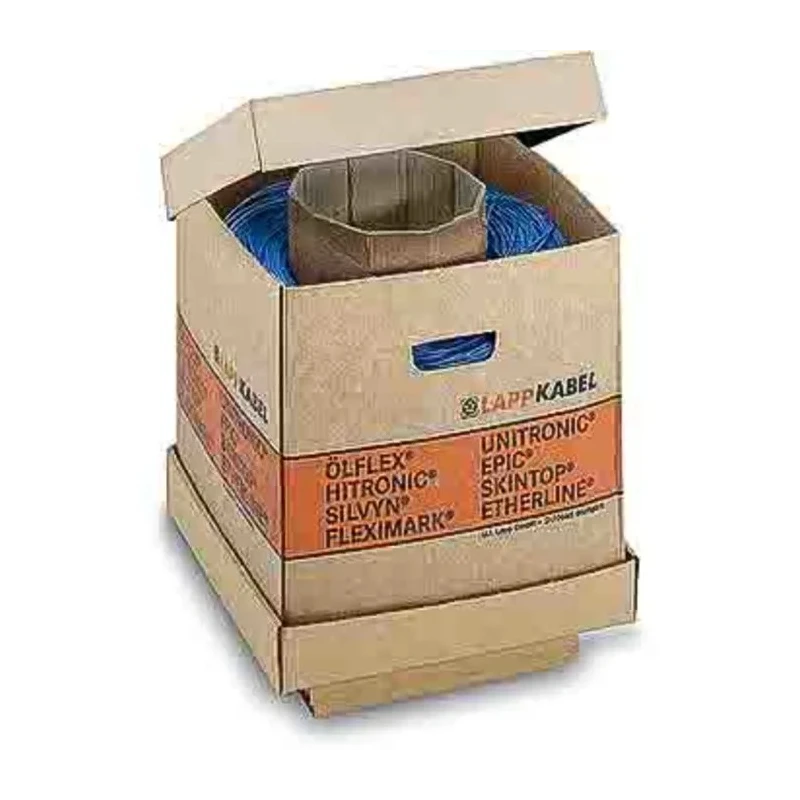

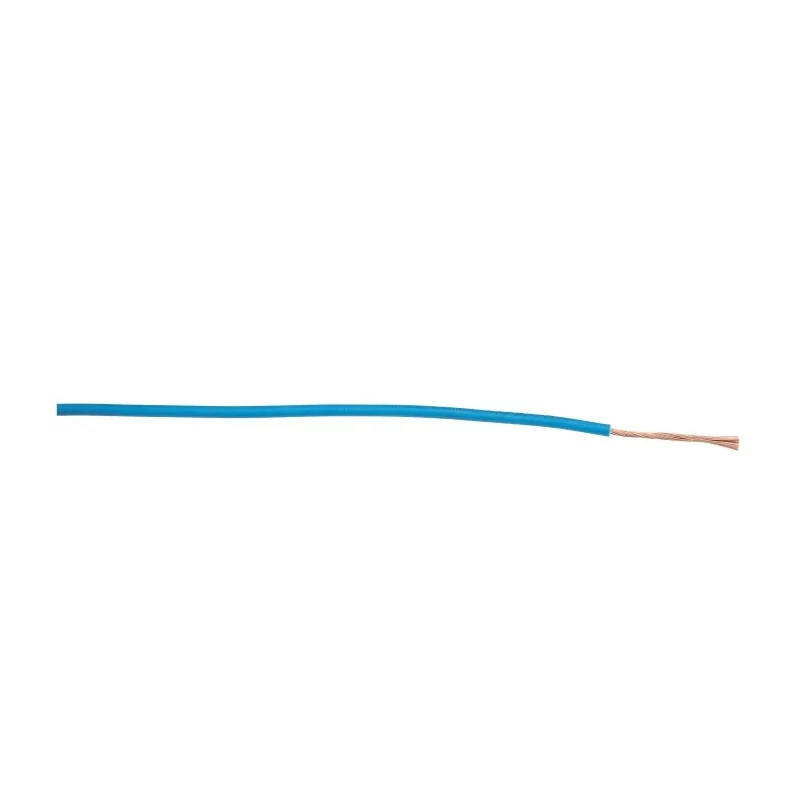

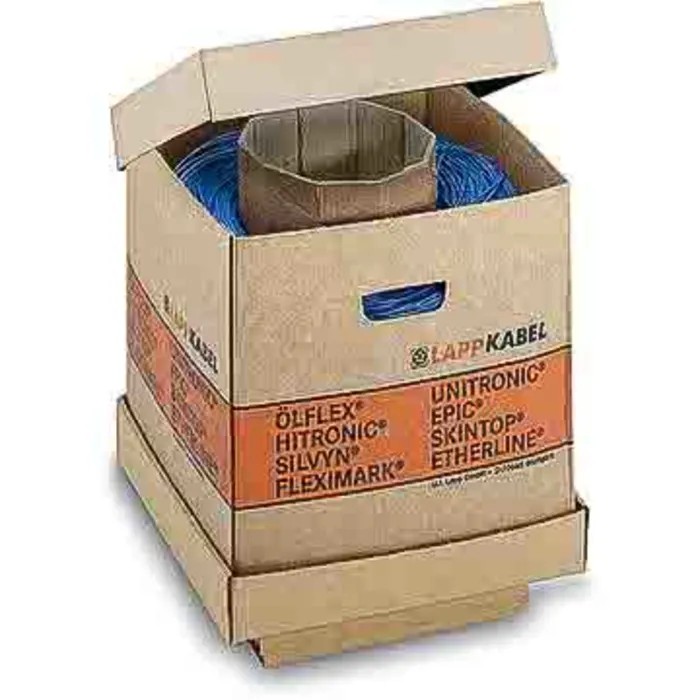

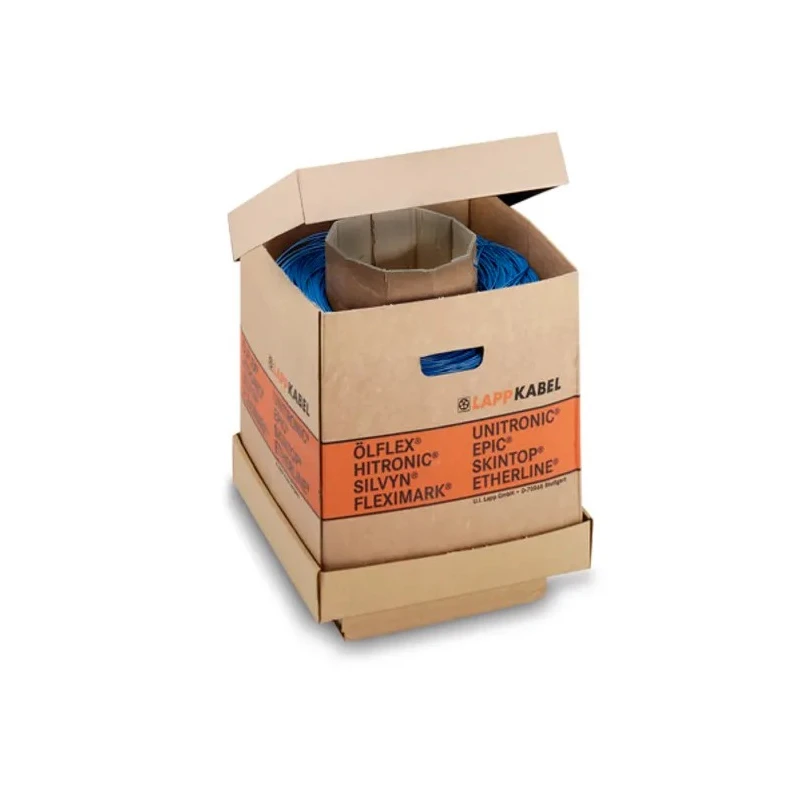

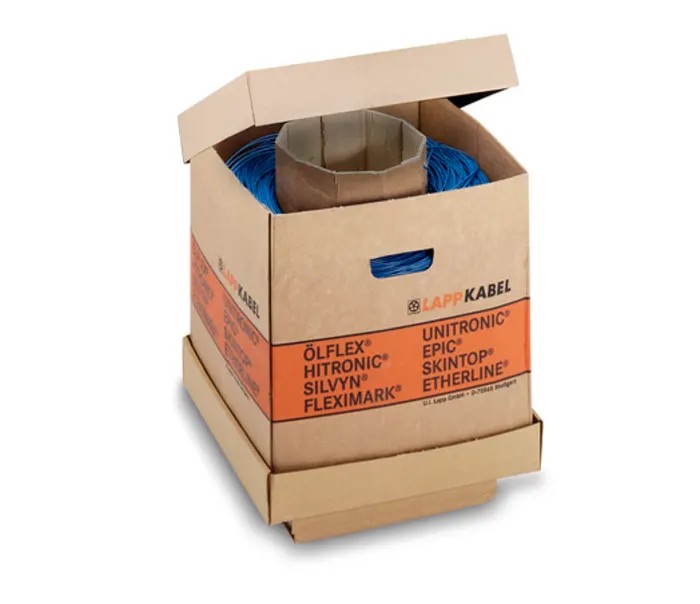

Lapp H05Z-K Series Blue 1 mm² Hook Up Wire 100 m Low Smoke Zero Halogen (LSZH) Cross Linked Insulation 4725023

Free Delivery in India | Lowest Global Shipping Charges

Lapp H05Z-K Series Blue 1 mm² Hook Up Wire 100 m Low Smoke Zero Halogen (LSZH) Cross Linked Insulation 4725023

Name: Lapp H05Z-K Series Blue 1 mm² Hook Up Wire 100 m Low Smoke Zero Halogen (LSZH) Cross Linked Insulation 4725023
Brand: Lapp
SKU: 408593
Price: 174.31 USD
Availability: InStock



Category Hook Up Wire Brand Lapp Condition New

Specifications

Country of Origin	India
Voltage	300, 500V
Brand	Lapp
CROSS SECTIONAL AREA	1mm²
Model	4725023
Cable Length	100m
Series	H05Z-K
Outside diameter	2.9mm
Maximum Operating Temperature	90°C
Conductor Material	Bare Copper
Sub Type	Single Core
Minimum Operating Temperature	-40°C
Jacket Material	Low Smoke Zero Halogen (LSZH) Cross Linked Insulation
Standards/Approvals	CE
Jacket Colour	Blue

Key Features

This wire features a blue jacket color for easy identification.
It operates at voltages of 300V and 500V, suitable for various electrical applications.
The conductor is made of bare copper to ensure excellent conductivity.
The jacket is flame-retardant according to IEC 60332-1-2 standards, enhancing safety.
Temperature range spans from -40°C to a maximum of 90°C, enabling use in diverse environments.
The LSZH cross linked insulation minimizes hazardous emissions in case of fire.
Ideal for wiring lamps, devices, switchgear cabinets, and distribution boxes.
The product complies with CE standards, guaranteeing quality and reliability.

Product Description

Lapp 4725023 Hook Up Wire is a premium quality single core hook up wire with a 1 mm² cross-sectional area and 100 meter cable length. It features a blue Low Smoke Zero Halogen (LSZH) cross linked insulation jacket designed to enhance safety by minimizing smoke and halogen emissions in case of fire. The conductor material is bare copper, which ensures excellent electrical conductivity.

This cable supports operating voltages of 300V and 500V and can withstand temperatures ranging from -40°C to 90°C, making it suitable for a wide variety of industrial, automation, electronics, and electrical wiring applications. The jacket material is flame retardant according to IEC 60332-1-2 and EN 60332-1-2 standards, providing enhanced fire safety. It is certified with CE approval.

The Lapp H05Z-K series Hook Up Wire is ideal for wiring lamps, devices, switchgear cabinets, and distribution boxes in environments demanding safety and reliability, including buildings with high occupant density or valuable assets. Its halogen-free composition protects human life and the environment in the event of fire, while the robust cross linked insulation ensures durability and resistance to mechanical stress.

Blue jacket color allows clear identification and coding. Flame retardant and low smoke density enhances safety in hazardous environments. Halogen-free insulation reduces corrosive gas emissions during combustion. Suitable for wiring electrical devices in industrial and commercial environments.

Indicated temperature range accommodates high and low temperature installations. Compliance with CE standards ensures quality assurance and performance. Cross linked LSZH insulation guarantees long-term reliability and increased mechanical resistance.

Designed for time-saving assembly processes in professional installation and maintenance.

This product supports a broad range of industrial applications involving electrical and automation wiring. For further browsing, explore additional Lapp electrical cables and wires on EnvMart.
