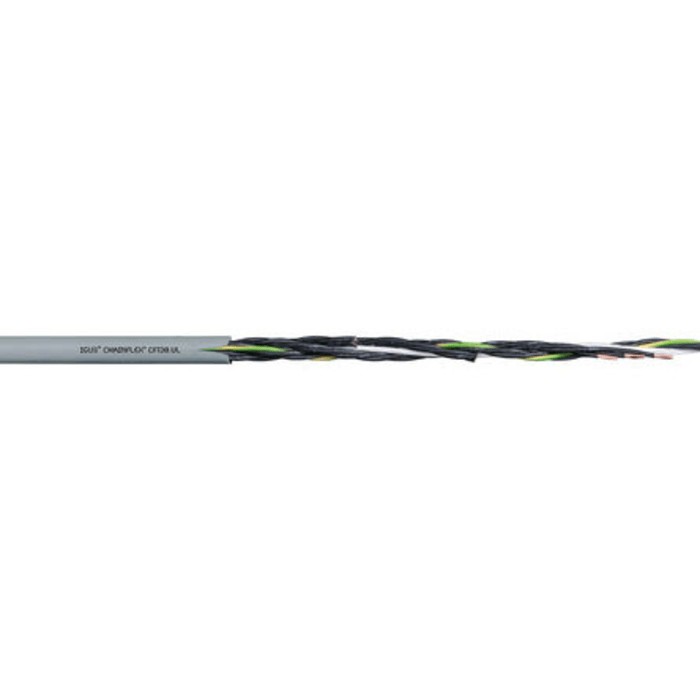

Igus Chainflex CF130.UL PVC Control Cable, 7 Cores, 1.5mm² 15 AWG, Unscreened, Armoured, 25 m, Grey CF130.15.07.UL
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF130.15.07.UL |
| Cable Length | 25m |
| Series | Chainflex CF130.UL |
| Outside diameter | 10.5mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 7 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Outer Sheath | Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10) |
| Standards/Approvals | EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 15AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1.5mm² |
Key Features
- Constructed with bare stranded copper conductors for excellent electrical conductivity.
- Jacketed with durable thermoplastic elastomer providing flexibility and abrasion resistance.
- Armoured design ensures mechanical protection in demanding environments.
- Suitable for voltages of 300 V to 500 V with a maximum operating temperature of 70°C.
- Flame-retardant in compliance with IEC 60332-1-2 standards for enhanced safety.
- Optimal for indoor medium-load applications and flexible movement in energy chain installations.
- Features a low-adhesion PVC outer sheath adapted for energy chain compatibility as per DIN VDE 0282 Part 10.
- Meets EN and CE standards for quality and reliability.
Product Description
Igus Chainflex CF130.UL Control Cable CF130.15.07.UL is a high-quality PVC control cable designed with 7 cores of 1.5mm² (15 AWG) bare stranded copper conductors. The cable features an unscreened, armoured construction ideal for medium load requirements in industrial applications.
The grey thermoplastic elastomer outer sheath provides excellent flexibility, torsion resistance, and abrasion protection, making it suitable for flexible use inside machines, robotics, and energy chain applications. The cable supports voltages of 300 V to 500 V and operates reliably in temperatures ranging from -5°C to 70°C.
This cable is flame-retardant according to IEC 60332-1-2, CEI 20-35, FT1, and VW1 standards, ensuring safety in environments with fire risks. The low-adhesion PVC outer sheath is specifically engineered to minimize friction in energy chain installations per DIN VDE 0282 Part 10.
The product meets EN and CE standards, guaranteeing compliance with European safety and quality requirements. Its armoured design offers additional mechanical protection, suitable for demanding industrial environments. The 25-meter length of this cable makes it adaptable for various industrial, automation, and control system installations.
Constructed with bare stranded copper conductors for optimal electrical performance. Flexible thermoplastic elastomer sheath designed for abrasion and torsion resistance. Armoured cable construction for enhanced mechanical protection.
Rated for 300 V to 500 V voltages with operating temperatures from -5°C to 70°C. Flame-retardant and compliant with IEC 60332-1-2 and related standards. Specifically suitable for medium load applications in industrial automation and machinery.
Low-adhesion PVC outer sheath adapted for energy chain compatibility. Meets EN and CE certification standards, ensuring product reliability.
This cable is ideal for use in industrial automation, machinery control systems, robotics, and electrical installations requiring flexible, durable, and safe control cables. Explore more cables in the Control Cable category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This control cable is rated for voltages of 300 V to 500 V.
The maximum operating temperature for this model is 70°C.
It has 7 cores, each with a cross-sectional area of 1.5mm² (15 AWG).
The cable is constructed with bare stranded copper conductors and jacketed with a thermoplastic elastomer for flexibility and abrasion resistance.
The length of this control cable is 25 meters.
Yes, it features a low-adhesion PVC outer sheath specifically adapted for energy chain compatibility as per DIN VDE 0282 Part 10.
The cable is flame-retardant and complies with IEC 60332-1-2 standards, ensuring safety in environments with fire risks.
The outer diameter of this control cable is 10.5 mm.
The minimum operating temperature for this model is -5°C.
This cable meets EN and CE standards for quality and reliability.
It is optimal for medium-load applications in industrial automation, machinery control systems, and robotics.
This model is unscreened, making it suitable for specific applications where screening is not required.
