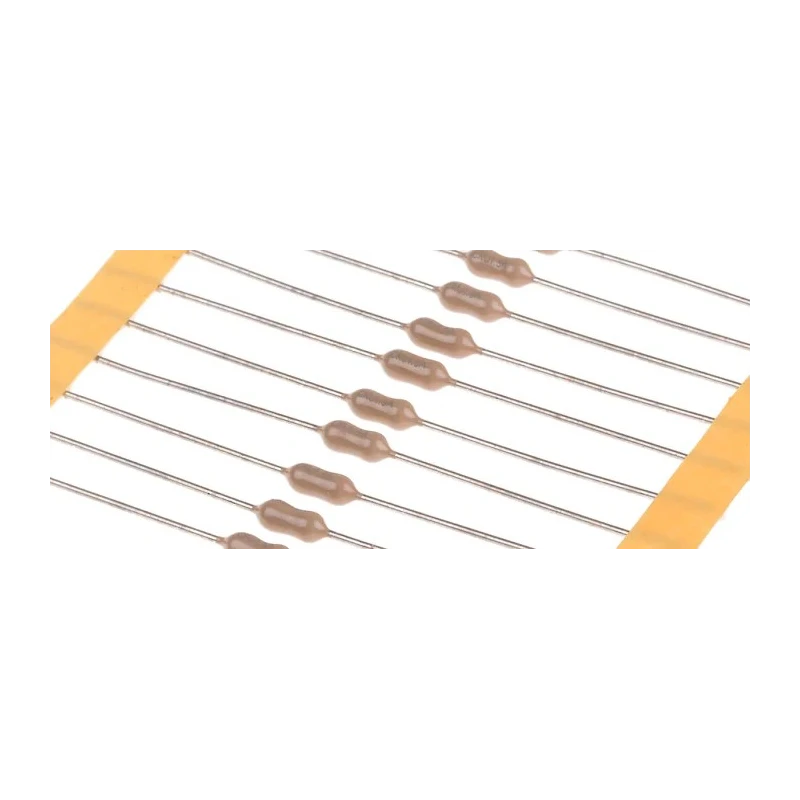

RS PRO Non-Resettable Fuse Axial 1.5A 125V AC 125V DC Epoxy Coated Body 764-9514
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 125, 125V ac |
| Diameter | 2.65mm |
| Brand | RS PRO |
| Body Material | Epoxy Coated |
| Height | 7.1mm |
| Model | 764-9514 |
| Current Rating | 1.5A |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 28mm |
| Breaking Capacity | 50A |
| Lead Diameter | 0.65mm |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Axial |
Key Features
- The epoxy coated body provides enhanced durability and electrical insulation.
- Axial lead orientation with 28mm lead length ensures easy mounting.
- Designed with a time delay fuse characteristic for circuit protection.
- Breaks current safely with a breaking capacity of 50A.
- Operates between -55°C minimum and 125°C maximum temperatures.
- Manufactured in Taiwan, Province Of China ensuring consistent quality.
- Suitable for varied industrial electrical and automation applications.
Product Description
RS PRO 764-9514 Non-Resettable Fuse is an axial fuse with a current rating of 1.5A and voltage rating of 125V AC and DC. Its epoxy coated body offers optimal insulation and resistance to electrical and thermal stresses, making it suitable for industrial, automation, and electrical circuit protection.
The fuse incorporates a time delay (time lag) characteristic, protecting circuits by allowing short transient surges without blowing instantly. Its axial lead design with 28mm lead length supports straightforward installation in printed circuit boards or other electrical assemblies.
Key operational parameters include a breaking capacity of 50A, ensuring it safely interrupts fault currents without damage. The fuse is capable of operating in a temperature range from -55°C to 125°C, providing reliable performance under harsh environmental conditions.
With compact dimensions of 7.1mm height, 2.65mm diameter, and 0.65mm lead diameter, the fuse fits neatly within tight spaces. Made in Taiwan, Province Of China, the product meets quality standards though it carries no formal certifications. It is intended primarily for industrial, automation, electrical, and manufacturing applications requiring dependable circuit protection.
The epoxy coated body enhances durability and electrical insulation. Time delay characteristic prevents nuisance blowing during transient surges. Axial lead orientation with 28mm leads facilitates mounting ease. Breaking capacity of 50A offers strong fault protection.
Wide operating temperature range from -55°C to 125°C. Compact form factor suitable for PCB and machinery integration. Manufactured in Taiwan ensuring high quality production. Ideal for industrial, laboratory, and automation electrical circuits.
Explore more RS PRO fuses and electrical components within the EnvMart catalog for comprehensive circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fuse has a current rating of 1.5A.
It is rated for 125V AC and 125V DC.
The breaking capacity is 50A, allowing it to safely interrupt fault currents.
The fuse has a height of 7.1mm, a diameter of 2.65mm, and a lead diameter of 0.65mm.
It features a lead length of 28mm with an axial lead orientation.
It can operate in a temperature range from -55°C to 125°C.
This fuse incorporates a time delay characteristic, which allows it to handle short transient surges without blowing instantly.
The body is made from epoxy coated material, providing enhanced durability and electrical insulation.
It is manufactured in Taiwan, Province Of China.
It is intended for industrial, automation, electrical, and manufacturing applications requiring circuit protection.
This product does not carry any formal certifications, but it meets quality standards.
The epoxy coating enhances durability and provides electrical insulation, making it suitable for various applications.
