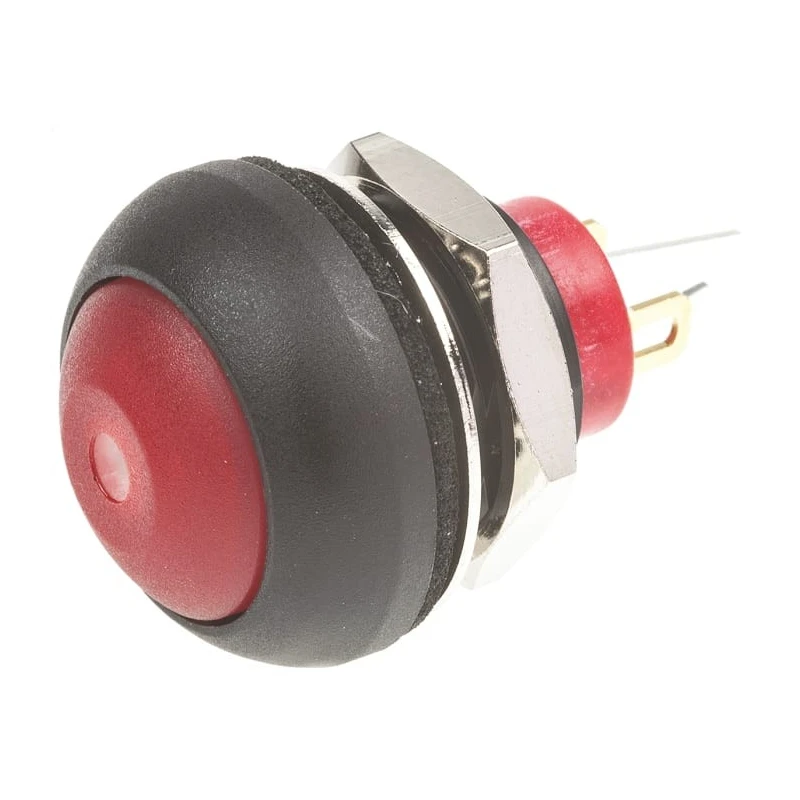

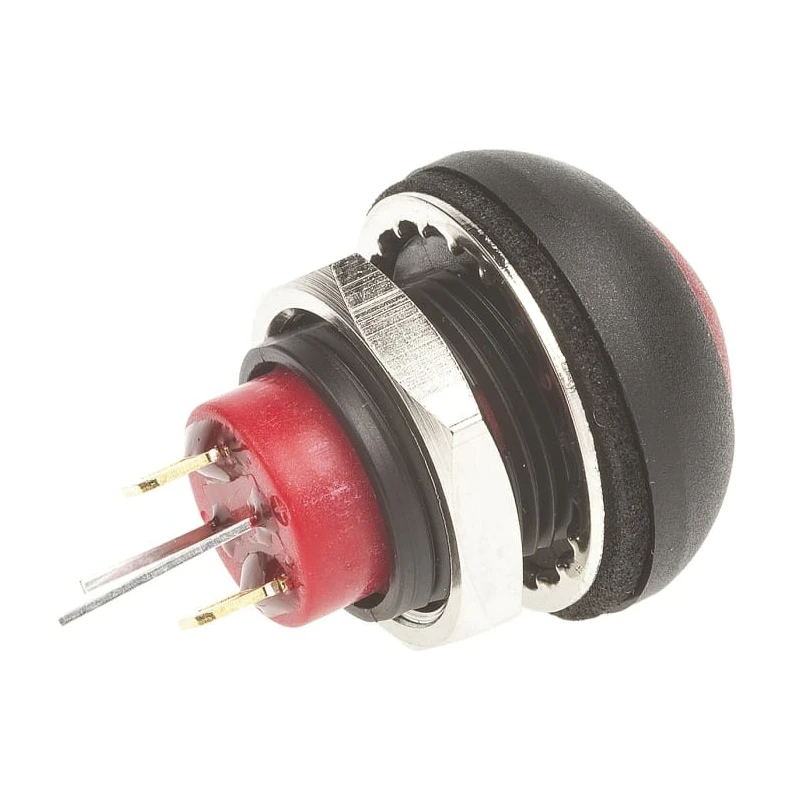

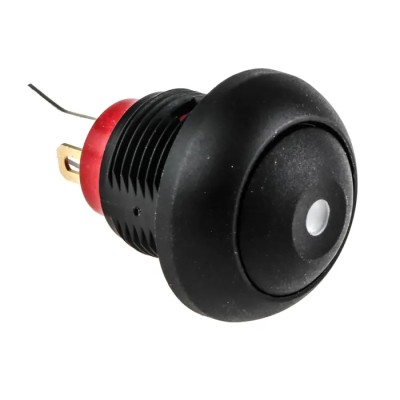

KNITTER-SWITCH DPWL Series Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 12.9 mm Cutout, SPST DPWL1CGRY
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | DPWL1CGRY |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | DPWL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Panel Cutout Size | 12.9 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| LED Colour | Yellow |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Actuator Style | Button |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 250V ac |
Key Features
- Designed for momentary switch operation ensuring temporary contact.
- Incorporates a yellow LED for clear illumination indication.
- Panel mount type with a 12.9 mm cutout dimension for easy installation.
- Has a single-pole, single-throw (SPST) contact configuration for on-off control.
- Operates at a maximum contact AC voltage of 250V and switch contact current of 400mA.
- Constructed with a thermoplastic case offering waterproof rating of IP67, suitable for harsh environments.
- Rated for operation up to a maximum temperature of 85°C.
- Actuator style is button, with a red actuator color contrasting against the yellow LED.
Product Description
The KNITTER-SWITCH DPWL1CGRY is an illuminated miniature push button switch designed for momentary operation, featuring a rugged panel mount construction with a 12.9 mm cutout size and a SPST contact configuration. It is equipped with a yellow LED indicator to provide clear operational status in industrial and commercial electrical applications.
Its thermoplastic casing provides robust waterproofing with an IP67 rating, making it suitable for use in environments exposed to water and dust. The switch is built to endure up to 85°C operating temperatures while handling an AC voltage of 250V and contact current rated at 400mA.
The button actuator is colored red for visibility and user interaction ease, complementing the yellow LED illumination. The switch complies with CSA and UL safety standards, guaranteeing quality and durability. It is ideal for panel installations in automation, machinery control, and electrical distribution systems where reliable momentary switching is essential.
With a mechanical life expectancy exceeding one million cycles, this push button switch offers long-lasting performance. LED versions require a resistor to limit current to approximately 20 mA, typically 1,200 Ohms at 0.5 W. This switch is manufactured in China and is part of the DPWL series known for their waterproof and sealed design features.
Momentary switch operation for temporary contact activation. Yellow LED illumination for clear status indication. Panel mount with 12.9 mm cutout for easy installation. SPST contact configuration for simple on-off control.
Durable thermoplastic case with IP67 waterproof rating. Maximum operating temperature of 85°C for reliable performance. Red button actuator ensures clear user interface. Compliance with CSA and UL standards guarantees safety.
Long mechanical life with over one million operation cycles. LED requires resistor for proper current limiting.
This push button switch is ideal for industrial automation, electrical panel controls, machinery, and other commercial electrical applications requiring robust and reliable momentary switches. Browse the Push Button Switch category for more quality switches.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact AC voltage for this model is 250V.
The switch contact current is rated at 400mA.
This switch has an IP67 waterproof rating, making it suitable for harsh environments.
The panel cutout size required for installation is 12.9 mm.
It is rated for operation up to a maximum temperature of 85°C.
The switch configuration is SPST (single-pole, single-throw), allowing for simple on-off control.
The LED indicator is yellow, providing clear operational status.
The actuator style is a button, and it is colored red for visibility.
It complies with CSA and UL safety standards, ensuring quality and safety.
The switch has a mechanical life expectancy exceeding one million cycles.
This model uses solder terminals for connection.
It is ideal for industrial automation, electrical panel controls, and machinery applications requiring momentary switching.
