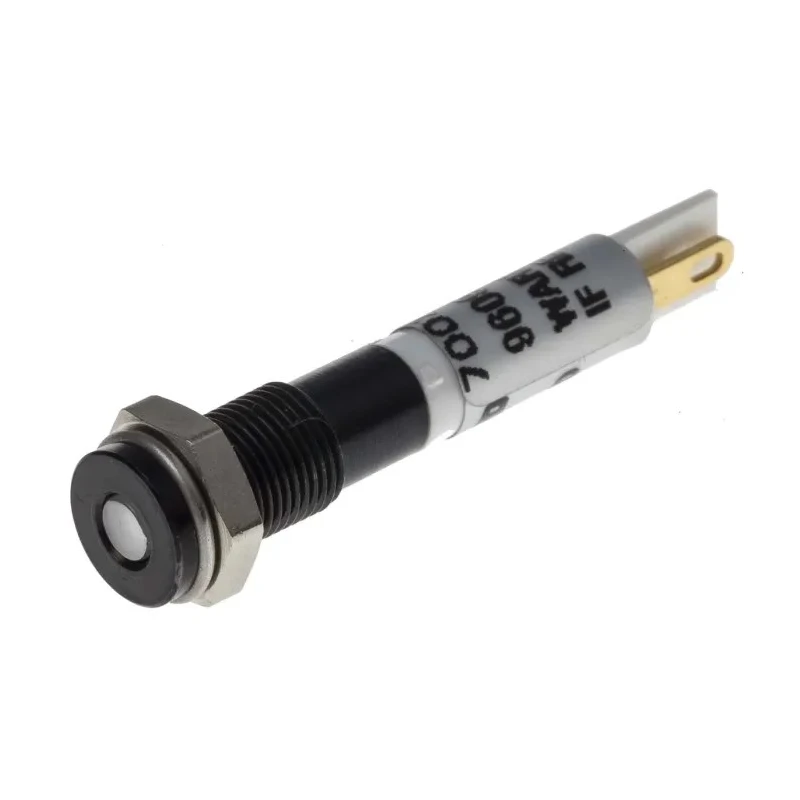

RS PRO White Panel Mount Indicator 12V DC 20mA Solder Tab Termination IP67 Flush 700-1628
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 12V dc |
| Brand | RS PRO |
| Current | 20mA |
| Length | 27mm |
| Model | 700-1628 |
| IP Rating | IP67 |
| Termination Type | Solder Tab |
| Light Output Colour | White |
| Bezel Style | Flush |
| Mount Hole Size | 6 mm |
Key Features
- Features a white diffused epoxy LED lens with high brightness.
- Built with a flush chrome bezel for sleek panel integration.
- Mount hole size of 6 mm suitable for standard panel mounting.
- Sealed to IP67 standards, ensuring resistance to dust and water ingress.
- Gold Faston terminal identifies the Anode (+), silver terminal the Cathode (-) for easy wiring.
- Maximum panel thickness allowed is 7mm for appropriate installation depth.
- Supplied with a fixing nut and spring washer for secure mounting.
- Ideal for harsh environment and outdoor equipment applications.
Product Description
RS PRO 700-1628 White Panel Mount Indicator is a 12V DC LED indicator designed primarily for industrial, electronic, and electrical applications requiring high visibility signal indication. It features a white diffused epoxy lens that produces a high level of brightness while maintaining low energy consumption. The indicator is enclosed in a flush chrome bezel that provides a polished finish for panel mounting.
The device operates at a current of 20mA and terminates through solder tabs, facilitating secure electrical connections. Its IP67 ingress protection rating ensures reliable operation in harsh conditions, protecting against dust and water immersion. Suitable for panel thicknesses up to 7mm, the indicator mounts via a 6mm diameter hole and includes a fixing nut and spring washer to secure installation.
Notably, the LED wiring utilizes gold Faston terminals for the Anode (+) and silver for the Cathode (-), ensuring clear polarity distinction. This indicator is ideal for use in environments exposed to outdoor elements or industrial settings requiring durable and visible signaling solutions.
White diffused epoxy LED lens for clear indication. Flush chrome bezel for sleek panel integration. Solder lug terminals for easy wiring. IP67 rated for dust and water resistance. Gold and silver terminals denote correct polarity.
Includes fixing nut and spring washer for mounting. Designed for panels up to 7mm thick and 6mm mount hole size.
This RS PRO indicator supports reliable and efficient signaling for industrial control panels, automated equipment, HVAC systems, and other electrical assemblies where robust performance and clear visual indication are required.
Explore a wide range of Panel Mount Indicators and LED signaling devices in the Electronics Components category at EnvMart for your industrial and electronic application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage of 12V DC.
The current consumption is 20mA.
It has an IP67 rating, ensuring protection against dust and water immersion.
The mount hole size required for installation is 6 mm.
The maximum panel thickness allowed is 7 mm.
It uses solder tab termination for secure electrical connections.
The light output color is white, produced by a diffused epoxy LED lens.
It is supplied with a fixing nut and spring washer for secure mounting.
The overall length of this model is 27 mm.
The country of origin for this product is the United Kingdom.
It is designed for industrial control panels, automated equipment, and HVAC systems where clear visual indication is required.
The wiring uses gold Faston terminals for the Anode (+) and silver terminals for the Cathode (-), ensuring clear polarity distinction.
