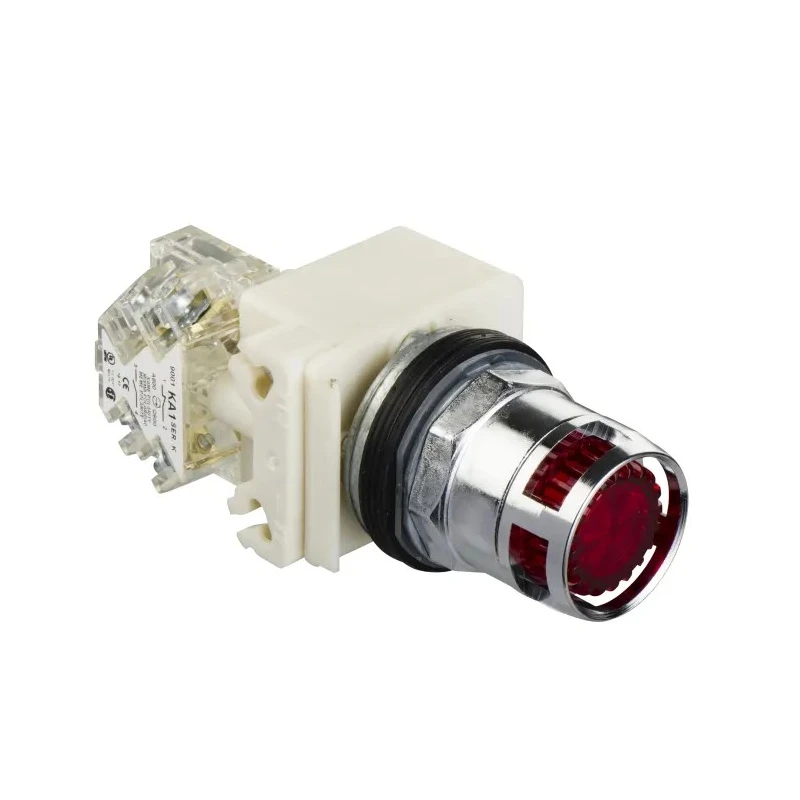

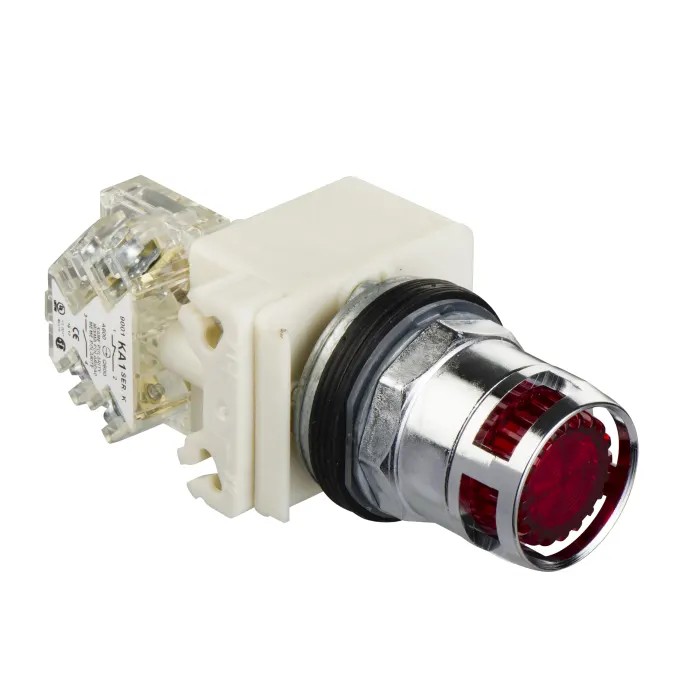

Schneider Electric Harmony 9001K Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm 9001K3L38LRRH13
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 42mm |
| Length | 106mm |
| Model | 9001K3L38LRRH13 |
| IP Rating | IP66 |
| Width | 54mm |
| Mount Type | Panel |
| Series | Harmony 9001K |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 CO |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 30 mm |
| Terminal type | Screw |
| LED Colour | Red |
| Switch Operation | Spring Return |
| Actuator Colour | Red |
| Contact DC Voltage | 125V |
| Actuator Style | Octagonal |
| Switch Contact Current | 550mA |
| Contact AC Voltage | 600V ac |
| Legend | Unmarked |
Key Features
- Illuminated push button with superbright red LED for clear indication.
- Spring return actuator ensures instant reset after activation.
- Single Pole Double Throw (SPDT) contact configuration for versatile switching.
- Compact panel mount design suitable for 30 mm cutouts.
- Robust IP66 rated enclosure for dust and water ingress protection.
- Rated for contact voltages up to 600 V AC and 125 V DC.
- Operating temperature range from -25°C to 70°C for varied environments.
- Suitable for industrial automation, electrical control panels, and machinery interfaces.
Product Description
Schneider Electric 9001K3L38LRRH13 is a high-quality illuminated push button switch from the Harmony 9001K series. Designed for panel mounting, it fits a 30 mm cutout and offers a reliable spring return mechanism, making it ideal for momentary control operations.
The switch features a red octagonal actuator with a superbright red LED illumination, ensuring clear visual feedback in control systems. It includes a SPDT (Single Pole Double Throw) contact configuration, providing flexible switching options for diverse industrial applications.
Constructed to meet stringent industrial standards including IEC 60947 and UL 508, this push button switch is IP66 rated, offering excellent protection against dust and water ingress. It operates reliably within a temperature range of -25°C to 70°C, suitable for outdoor and harsh environmental conditions.
The device is rated for contact current of 550 mA and can handle contact voltages of up to 600 V AC and 125 V DC, making it suitable for a wide array of electrical control and automation tasks. The screw terminal type ensures secure electrical connections within control panels.
This illuminated push button switch is widely used in industrial automation, electrical distribution panels, manufacturing equipment, and machinery control systems. Its ergonomic octagonal actuator and extended guard design provide safe and user-friendly operation.
Illuminated push button with superbright LED for clear indication. Spring return actuator provides instant reset after activation. Single Pole Double Throw (SPDT) contact configuration. Panel mount design fitting a 30 mm cutout.
Robust IP66 protection against dust and water. Wide temperature operating range from -25°C to 70°C. Contact voltage ratings of 600 V AC and 125 V DC. Compliance with IEC, UL, CSA, and JIS standards.
Set contains 1 illuminated push button switch, suitable for installation in industrial electrical panels and automation systems. Explore more Schneider Electric products and Push Button Switches in EnvMart’s comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching options in various applications.
It operates reliably within a temperature range of -25°C to 70°C, making it suitable for both indoor and outdoor environments.
The switch has an IP66 rating, providing excellent protection against dust and water ingress.
It uses a screw terminal type, ensuring secure electrical connections within control panels.
This model requires a panel cutout size of 30 mm for proper installation.
It can handle contact voltages of up to 600 V AC and 125 V DC, making it suitable for a wide range of electrical applications.
The actuator style is octagonal, designed for ergonomic and user-friendly operation.
It features a spring return operation, which provides an instant reset after activation.
The dimensions are 42 mm in height, 54 mm in width, and 106 mm in length.
The contact current rating for this model is 550 mA, suitable for various control tasks.
It complies with IEC 60947 and UL 508 standards, ensuring it meets stringent industrial requirements.
This illuminated push button switch is widely used in industrial automation, electrical distribution panels, and machinery control systems.
