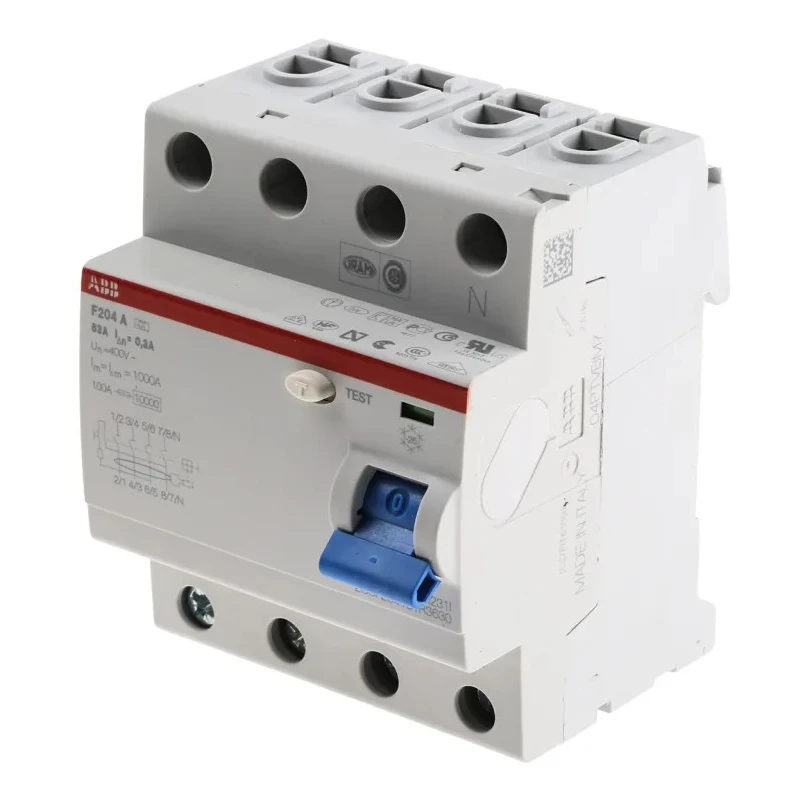

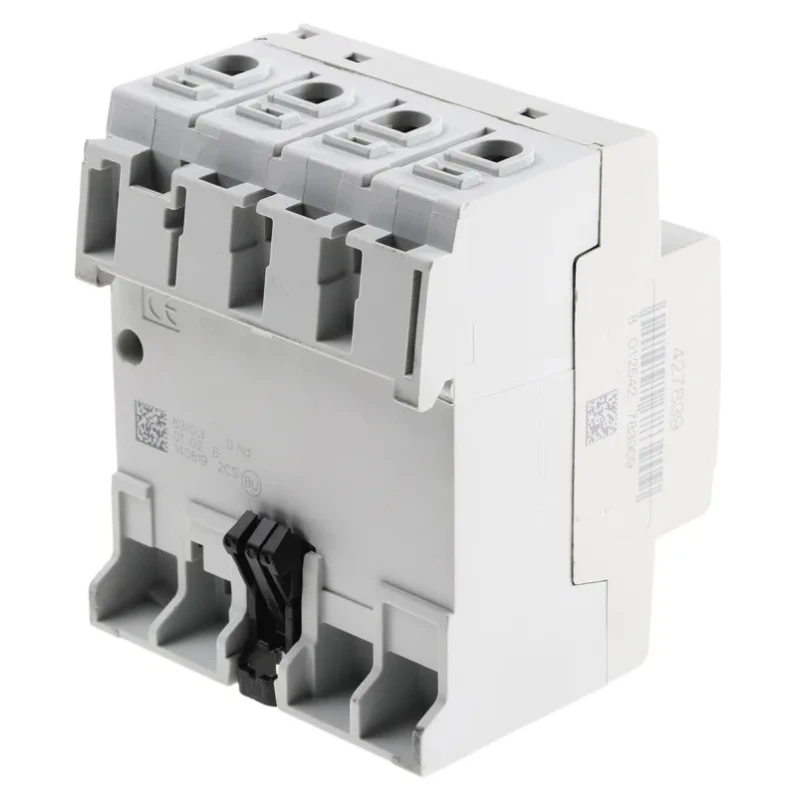

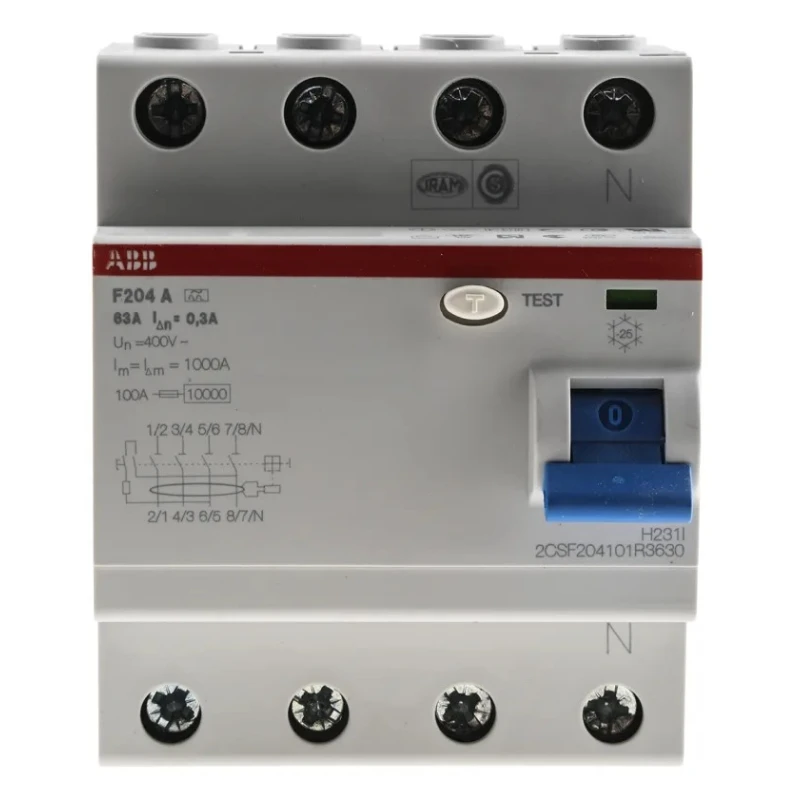

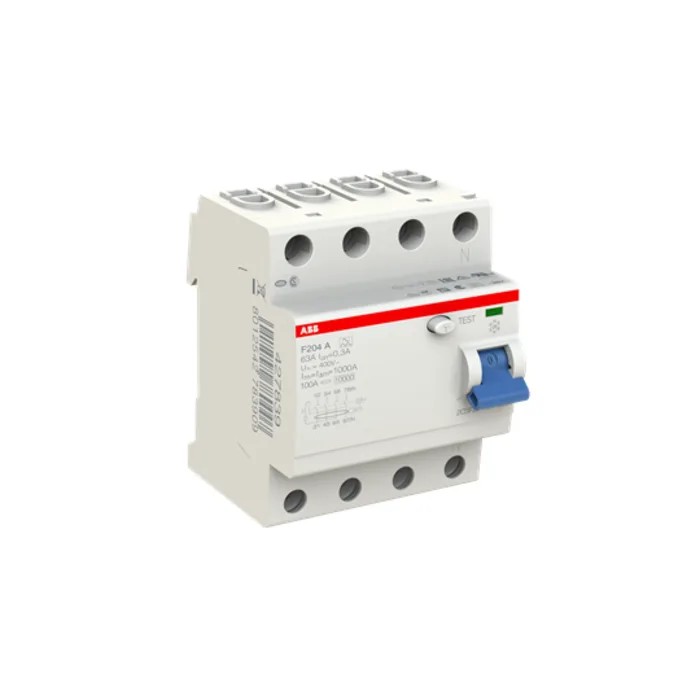

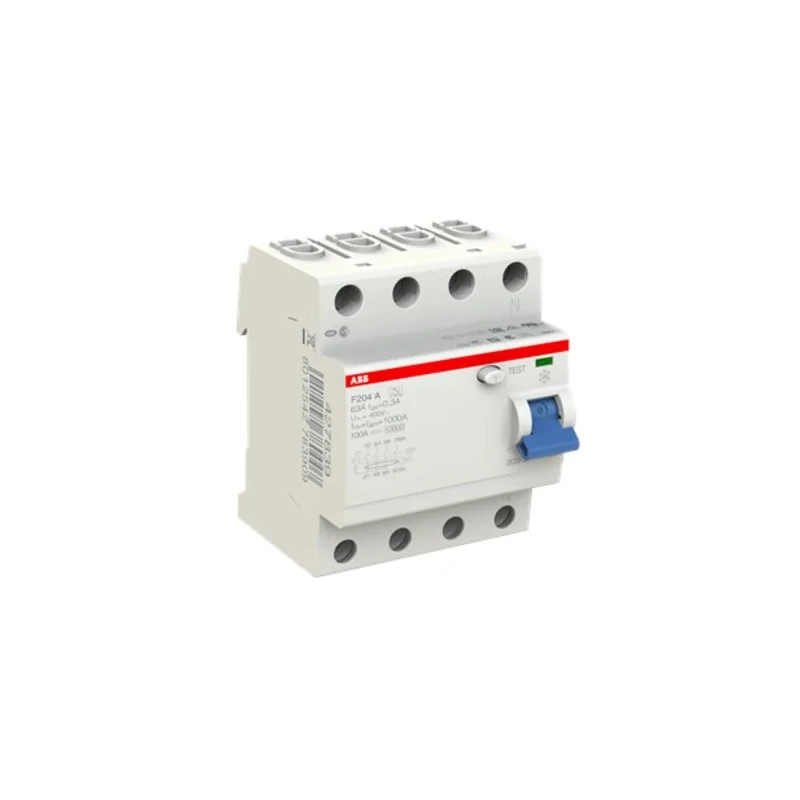

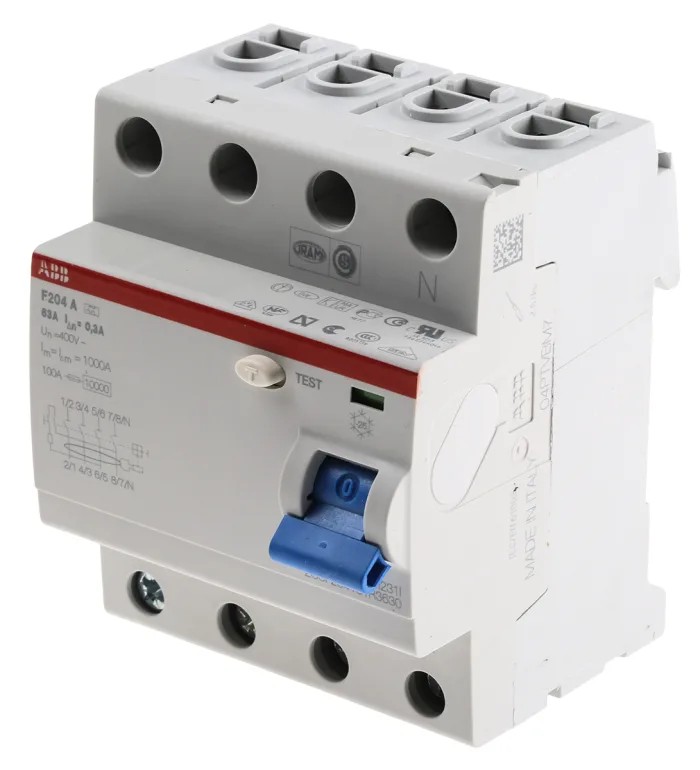

ABB Residual Current Circuit Breaker 63A 4-Pole 300 mA Type A 0.3A 400V AC F200 Series 2CSF204101R3630 - F204A-63/0.3

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Circuit Breaker 63A 4-Pole 300 mA Type A 0.3A 400V AC F200 Series 2CSF204101R3630 - F204A-63/0.3



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	RCCBs F200
Brand	ABB
Height	85mm
Model	2CSF204101R3630 - F204A-63/0.3
Depth	85mm
Width	70mm
Mount Type	DIN Rail
Current Rating	63A
Series	F200
Terminal type	Screw
Breaking Capacity	0.3A
Number of Poles	4
Standards/Approvals	RoHS, CE
Rated AC Voltage	400V ac
Tripping Characteristics	Type A
Reset Actuator Type	Toggle Switch
Trip Sensitivity	300mA
Break Time	Instantaneous
Earth Leakage Protection Type	Type A

Key Features

Designed for earth leakage protection with Type A tripping characteristics.
Compact dimensions of 70mm width, 85mm height, and 85mm depth suitable for DIN rail mounting.
Equipped with a toggle switch for easy reset and screw-type terminal connections.
Robust plastic housing ensures protection against impacts and contaminants.
Lightweight unit weighing approximately 360 grams for ease of installation.
Instantaneous break time with 0.3A breaking capacity for reliable electrical safety.
Complies with RoHS and CE standards.
Ideal for industrial electrical installations, domestic appliances, and lighting systems.

Product Description

ABB 2CSF204101R3630 - F204A-63/0.3 Residual Current Circuit Breaker is a high-quality 4-pole RCCB rated at 63A and 400V AC designed to provide earth leakage protection for electrical systems.

This unit features Type A tripping characteristics with a trip sensitivity of 300 mA to detect AC and pulsing DC faults, enhancing safety by instantly interrupting the circuit to prevent electrical hazards.

The compact dimensions of 70 mm width, 85 mm height, and 85 mm depth enable efficient use of space on distribution boards. Its modular design allows simple assembly in multi-component electrical installations.

The device mounts easily on a DIN rail with a convenient tool-free clip and employs screw-type terminals for secure wiring connections. Its toggle switch actuator allows quick resetting after trips.

Constructed with a hardwearing plastic housing, this RCCB is resilient to impact and contamination, ensuring durability in industrial and domestic environments. Weighing around 360 grams, it minimizes mechanical strain when mounted.

This residual current circuit breaker operates with an instantaneous break time and has a breaking capacity of 0.3A, suitable for applications requiring rapid response to leakage currents.

The product is compliant with RoHS and CE standards, ensuring adherence to international electrical safety and environmental regulations.

ABB's F200 series RCCBs are widely used in industrial electrical installations, residential appliances, and lighting systems where reliable earth leakage protection is essential to prevent electric shock and fire hazards.

Designed for earth leakage protection with Type A tripping characteristics. Compact with dimensions 70mm x 85mm x 85mm for space efficiency. Toggle switch for quick resetting after trips. Screw-type terminal connections ensure secure wiring.

Lightweight and durable plastic housing protects internal components. Instantaneous break time and 0.3A breaking capacity for fast response. Compliant with RoHS and CE standards for quality assurance. Suitable for industrial, domestic, and lighting electrical systems.

Explore the ABB F200 Series and other reliable Residual Current Circuit Breakers in the Circuit Breakers & Fuse category on EnvMart for your electrical safety needs.
