Turck Block Inductive Proximity Sensor PNP Q14 30V 200mA 10 mm Detection Range BI10U-Q14-AP6X2
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Turck |
| Length | 55.5mm |
| Model | BI10U-Q14-AP6X2 |
| Depth | 14mm |
| IP Rating | IP67 |
| Width | 30mm |
| Mount Type | Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | PNP |
| Series | Q14 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 250Hz |
| Standards/Approvals | Meets NEMA 1, 13 and IEC IP 67 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Plastic |
| Maximum Detection | 10mm |
Key Features
- Rectangular block PBT housing with flush mount type enhances installation flexibility and durability.

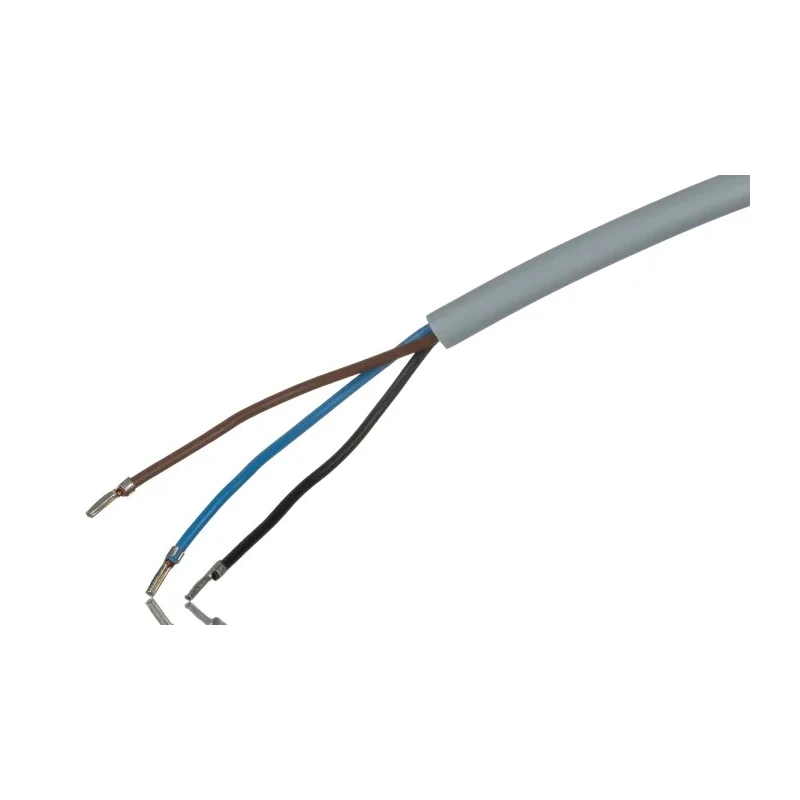

- Pre-cabled terminal type with 2m PVC cable for ease of connectivity.
- Operates in temperature range from -30°C to 85°C suitable for harsh industrial environments.
- IP67 rated for dust-tight and immersion protection ensuring reliable operation in humid conditions.
- Maximum switching frequency of 250 Hz enables fast response in automated processes.
- Output type PNP with a switching current of 200 mA for standard control interfaces.
- Unshielded sensor suitable for detecting metal objects up to 10 mm distance.
- Complies with NEMA 1, 13 and IEC IP 67 standards for robust industrial use.
Product Description

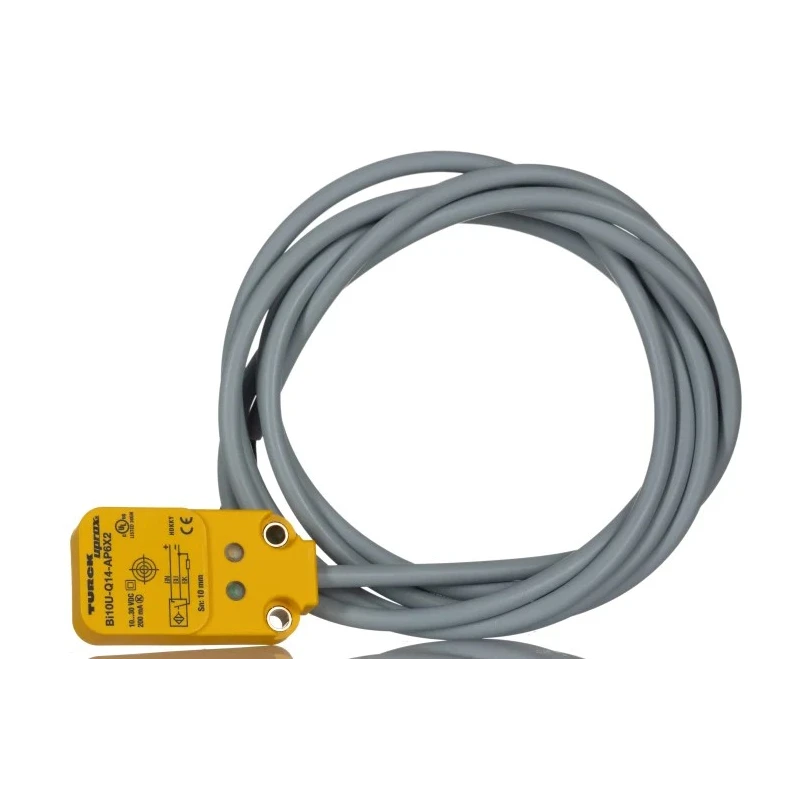

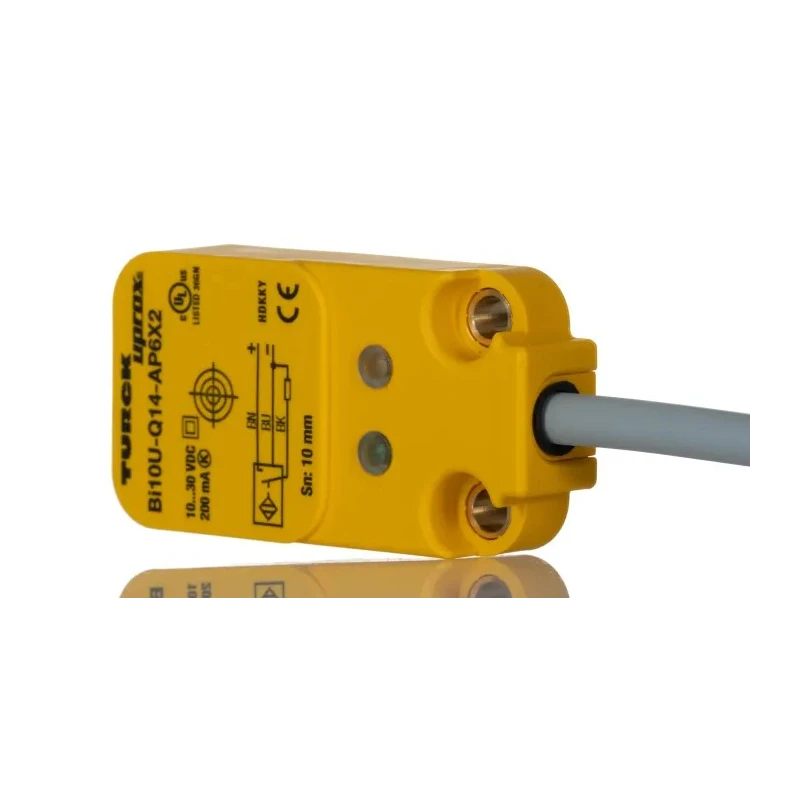

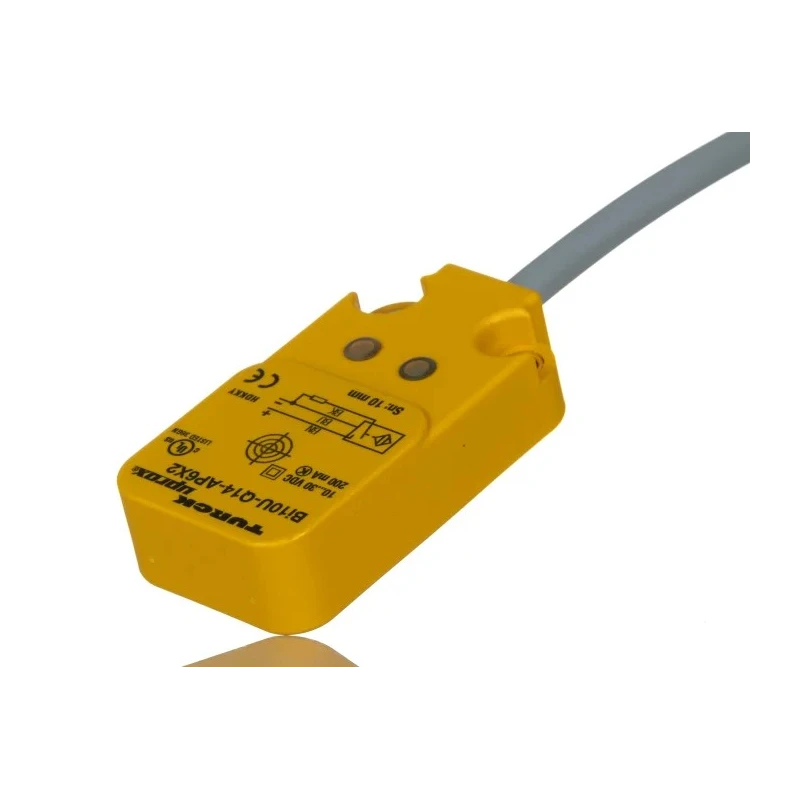

Turck BI10U-Q14-AP6X2 block Inductive Proximity Sensor features a Polybutylene Terephthalate (PBT) housing and a 2m PVC prewired cable, designed for durable and reliable position detection of metal components such as aluminium, brass, iron, or copper within a non-contact range of 10 mm. The sensor operates with a 30 V dc supply voltage and supports a maximum switching current of 200 mA.
With an extended operating temperature range from -30°C to +85°C, this sensor performs efficiently in demanding industrial environments, including humid and vibration-prone areas. Its IP67 rating ensures the device is dust-tight and can withstand temporary immersion in water, making it compatible for use in harsh conditions.

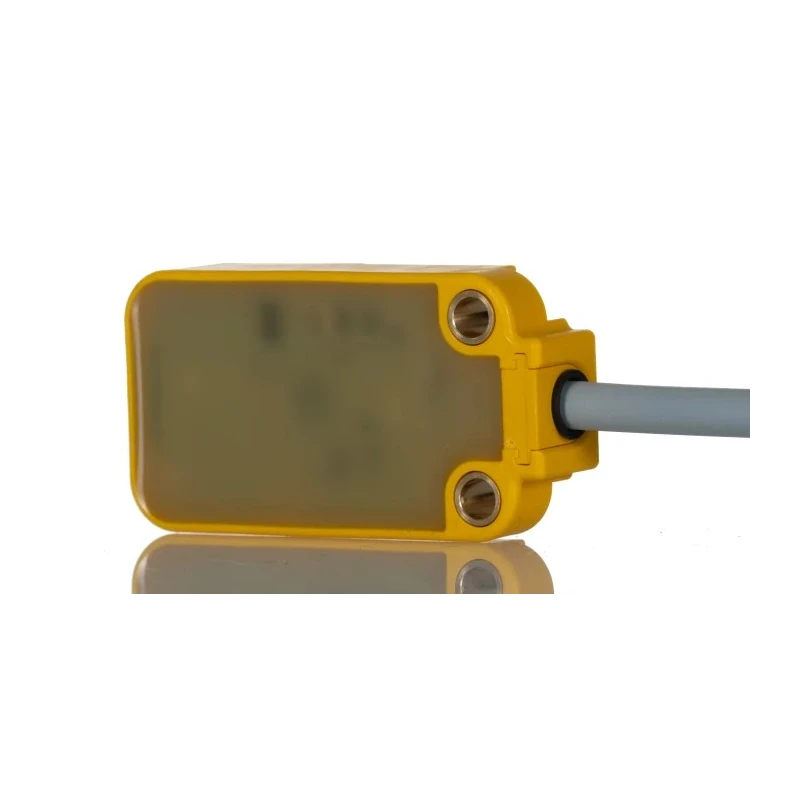

The BI10U-Q14-AP6X2 model offers flush mounting and a compact rectangular block style with dimensions of 55.5 mm length, 30 mm width, and 14 mm depth, allowing for space-saving installation. The unshielded design facilitates side sensing to reduce housing depth while maintaining high sensing reliability.
Industrial applications include robotics automation, industrial process control systems, transportation industry positioning, and security systems monitoring. The sensor's status LEDs provide clear visual operation feedback, including power indication and short circuit warnings.
This Turck proximity sensor provides protection against reverse polarity, overload, and short circuits, ensuring long service life. It meets standards such as NEMA 1 and 13, and IEC IP67 for robustness and safety compliance.
Rectangular block PBT housing with flush mount type for stable installation. Pre-cabled 2m PVC cable ensures easy and reliable electrical connection. Wide temperature tolerance from -30°C to +85°C for demanding environments.
IP67 ingress protection rating for dust and water resistance. 250 Hz maximum switching frequency for responsive detection. PNP output with 200 mA switching current ideal for standard control circuits. Unshielded design allows reliable detection of metals within 10mm.
Complies with NEMA 1, 13 and IEC IP67 standards. Suitable for robotics, process control, transportation, and security applications. Choose from the extensive Turck sensor range at EnvMart for high-quality, reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a detection range of up to 10 mm for detecting metal objects.
The maximum switching frequency is 250 Hz, allowing for fast response in automated processes.
The sensor has a length of 55.5 mm, a width of 30 mm, and a depth of 14 mm.
It operates efficiently within a temperature range of -30°C to +85°C, suitable for demanding environments.
This sensor features a PNP output type with a maximum switching current of 200 mA.
It is designed to detect metals such as aluminium, brass, iron, or copper within its sensing range.
It has an IP67 rating, making it dust-tight and capable of withstanding temporary immersion in water.
The sensor features a rectangular block housing made of Polybutylene Terephthalate (PBT), designed for flush mounting.
The maximum supply voltage for the BI10U-Q14-AP6X2 is 30V DC.
It complies with NEMA 1, 13 and IEC IP67 standards for robust industrial use.
It comes with a pre-cabled terminal type featuring a 2m PVC cable for easy connectivity.
It is suitable for applications in robotics automation, industrial process control, transportation positioning, and security systems monitoring.
