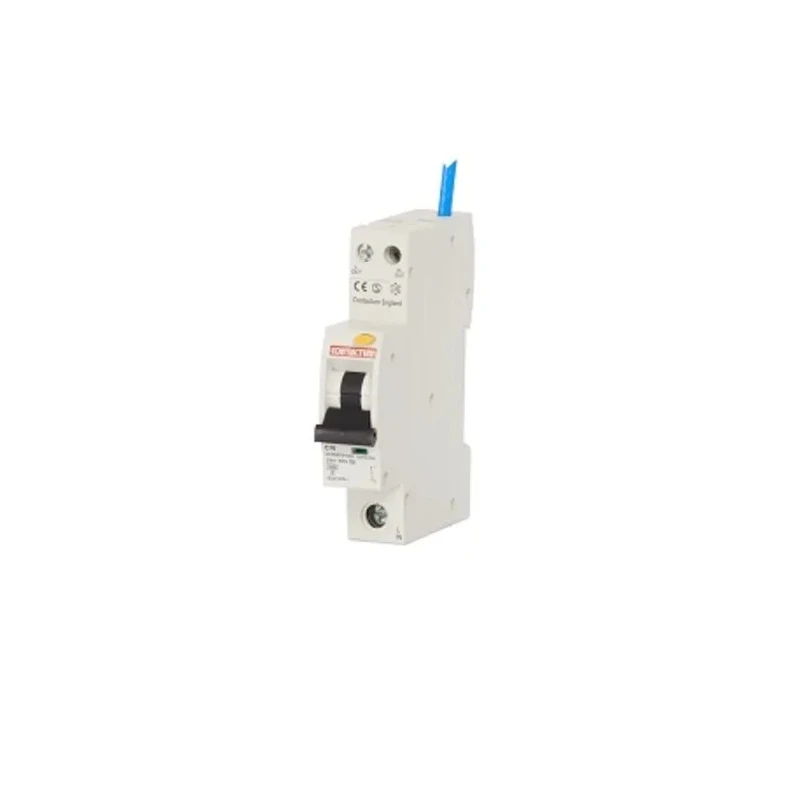

Contactum Residual Current Circuit Breaker with Overload Protection 16A 230V AC Type C Thermal Magnetic DIN Rail CCPBR1016AC

Contactum CCPBR1016AC Residual Current Circuit Breaker with Overload Protection is designed to provide comprehensive electrical safety by combining residual current detection and overload protection in a compact 1-pole device. It supports a rated current of 16A and operates at typical AC voltages between 220-250V, making it ideal for general-purpose electrical circuits.

This RCBO features a Type C tripping characteristic alongside a thermal magnetic mechanism, ensuring prompt disconnection in the event of short circuits or persistent overloads, thus protecting wiring and connected equipment effectively. Its trip sensitivity of 30 mA is suitable for preventing electric shock hazards and minimizing leakage currents.

The device mounts easily onto standard DIN rails via a lever reset actuator and screw terminals, with physical dimensions carefully minimized (90 mm height, 75 mm depth, 19 mm width) to optimize panel space usage. The white enclosure includes an ABC indicator that enhances user awareness of its status.

Manufactured in China, the RCBO conforms to international safety and environmental standards, including IEC, CE, RoHS, and BS EN 61009, ensuring reliability and compliance in various industrial, commercial, and residential applications.

The product operates effectively within a temperature range of -5 to 40°C, suitable for diverse ambient conditions. Its breaking capacity of 10kA allows it to safely interrupt high fault currents, protecting electrical infrastructure and personnel.

Equipped with Type C tripping for overload protection combining thermal and magnetic trip mechanisms. DIN Rail mounting system with screw-type terminals ensures firm and reliable installation. Rated for 230V AC operation across a 50-60Hz frequency range matching standard power supplies.

Compact and modular design enables integration into dense electrical distribution boards. Earth leakage protection Type A maximizes operator safety against leakage currents. Compliance with IEC, CE, RoHS, and BS EN 61009 guarantees product quality and safety.

Operating temperature range suitable for industrial, laboratory, and commercial environments. White color casing with ABC indicator for clear visual status and operational feedback.
