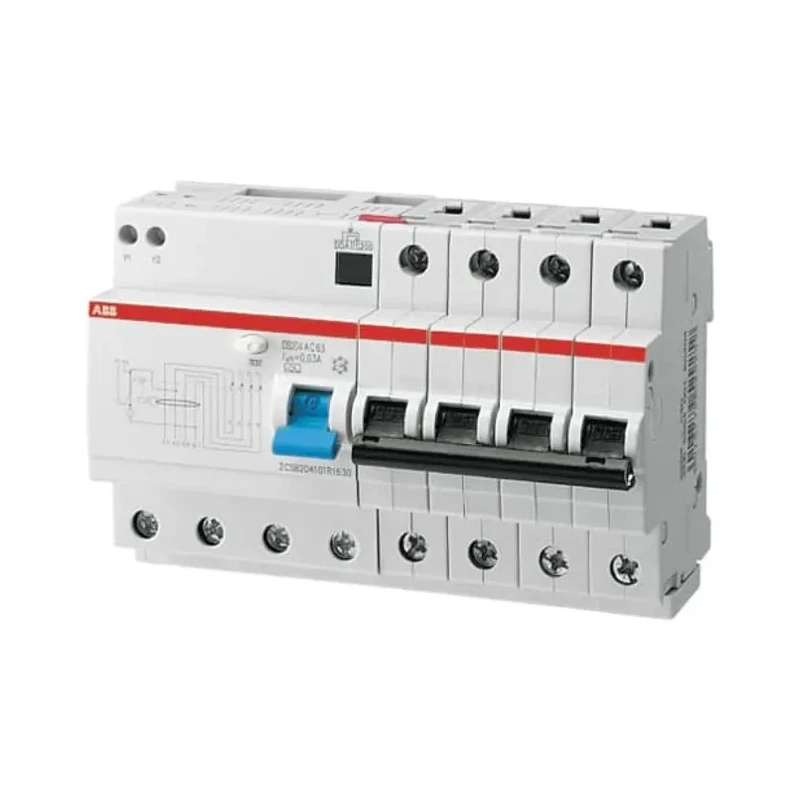

ABB Residual Current Circuit Breaker with Overload Protection, 13A Current Rating, 4-Pole, 30 mA Trip 2CSR254101R1135



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	DS200
Brand	ABB
Height	93mm
Model	2CSR254101R1135
Depth	69mm
Width	105mm
Standards	IEC/EN 60947-2
Current Rating	13A
Series	DS200
Terminal type	Neutral Terminal
Breaking Capacity	10kA
Number of Poles	4
Standards/Approvals	UL/CSA, IEC/EN 61009-1, IEC/EN 60947-2
Rated AC Voltage	400V ac
Tripping Characteristics	Type B
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Earth Leakage Protection Type	Type A
Operating Characteristic	Instantaneous

Key Features

Designed for safety against overload and short circuits.
Incorporates earth leakage protection Type A.
Suitable for residential and industrial use.
Operating voltage of 400V AC with a breaking capacity of 10 kA.
Compact dimensions of 105mm width, 93mm height, and 69mm depth.
Reset actuator operated via lever mechanism for easy control.
Complies with IEC/EN 61009-1, IEC/EN 60947-2, and UL/CSA standards.
Type B tripping characteristics ensures precise protection response.

Product Description

ABB 2CSR254101R1135 Residual Current Circuit Breaker with Overload Protection from the DS200 series is engineered to protect electrical circuits against overload, short-circuit currents, and earth faults with 30 mA trip sensitivity, enhancing safety in residential, commercial, and industrial electrical installations.

This 4-pole device operates at a rated current of 13A and rated AC voltage of 400V, ensuring robust protection with a breaking capacity of 10 kA. It features Type A earth leakage protection, effectively detecting alternating and pulsating direct fault currents.

The compact design measures 105mm in width, 93mm in height, and 69mm in depth, making it suitable for integration into a variety of electrical distribution panels. The reset actuator is lever operated to facilitate quick manual resetting after tripping.

Compliance with international standards IEC/EN 61009-1, IEC/EN 60947-2, and UL/CSA certifies its reliability and suitability for global market applications. The tripping characteristic is Type B, providing instantaneous response suited for protecting sensitive equipment.

Overload and short-circuit current protection. Earth leakage protection Type A for enhanced safety. Rated current of 13A with 4 poles. Breaking capacity of 10 kA ensuring high fault current interruption. Reset actuator lever allows easy manual control.

Compact dimensions support versatile panel mounting. Certified to IEC/EN and UL/CSA standards ensuring reliability. Suitable for residential, industrial, and commercial applications. Originating from Italy, this ABB Residual Current Circuit Breaker is built for durable performance and safety compliance.
