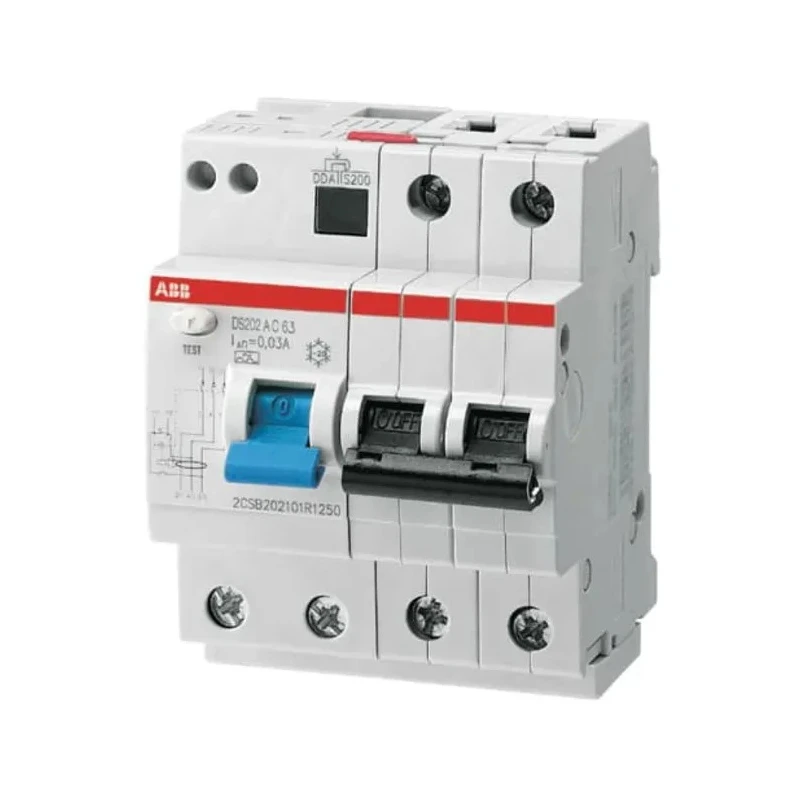

ABB Residual Current Circuit Breaker with Overload Protection 6A Current Rating 2-Pole Type K DS200 Series 2CSR252101R1067



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Brand	ABB
Height	93mm
Model	2CSR252101R1067
Depth	69mm
Width	70mm
Mount Type	DIN Rail
Standards	IEC/EN 60947-2
Current Rating	6A
Series	DS200
Ambient air temperature	Operation -25 ... +55 °C
Breaking Capacity	6kA
Number of Poles	2
Standards/Approvals	IEC/EN 60947-2, IEC/EN 61009-1
Rated AC Voltage	230V ac
Tripping Characteristics	Type K
Tripping Mechanism	Thermal Magnetic
Operating Characteristic	Instantaneous

Key Features

Designed for DIN rail mounting in electrical panels.
Type K tripping characteristics ensure precise short-circuit protection.
Breaking capacity rated at 6kA for safe interruption of fault currents.
Thermal magnetic tripping mechanism for combined overload and short-circuit protection.
Complies with IEC/EN 60947-2 and IEC/EN 61009-1 standards.
Rated for 230V AC supply voltage.
Ambient operating temperature range from -25 to +55 °C.

Product Description

ABB 2CSR252101R1067 Residual Current Circuit Breaker with Overload Protection is engineered to safeguard electrical installations by protecting against overload currents, short-circuit faults, and earth leakage currents. Featuring a 6 ampere current rating and dual-pole design, this device is suitable for residential, commercial, and light industrial applications.

This model belongs to the DS200 series and includes a Type K tripping characteristic that offers instantaneous response for fault current interruptions. The thermal magnetic tripping mechanism ensures dependable protection against both prolonged overload and sudden short circuits. It is designed for standard DIN rail mounting, allowing easy installation and integration into electrical distribution boards.

The breaker is rated for a 230V AC alternating current supply and features a breaking capacity of 6kA, enabling it to safely disconnect fault currents without damage to the device or connected equipment. Its robust construction and compliance with IEC/EN 60947-2 and IEC/EN 61009-1 standards ensure high reliability and safety.

Compact dimensions with a height of 93mm, width of 70mm, and depth of 69mm allow for efficient space usage in panel boards. It operates effectively within an ambient air temperature range from -25 to +55 degrees Celsius, with storage temperature tolerance from -40 to +70 degrees Celsius, making it suitable for various environmental conditions.

This product provides protection against indirect electrical contacts and offers additional protection against direct contact faults, enhancing overall electrical safety. Designed for DIN rail mounting in electrical distribution panels.

Thermal magnetic tripping mechanism for effective overload and short-circuit protection. 6kA rated breaking capacity for reliable fault current interruption. Conforms to IEC/EN 60947-2 and IEC/EN 61009-1 standards for safety and performance.

Type K tripping characteristic provides instantaneous fault response. Suitable for operation in ambient temperatures from -25 to +55 °C. Compact size facilitates installation in limited spaces.

This ABB Residual Current Circuit Breaker is ideal for use in industrial, commercial, and residential electrical safety applications where protection from overload and earth leakage currents is critical. For additional selections, browse the Electronics & Electricals category on EnvMart.
