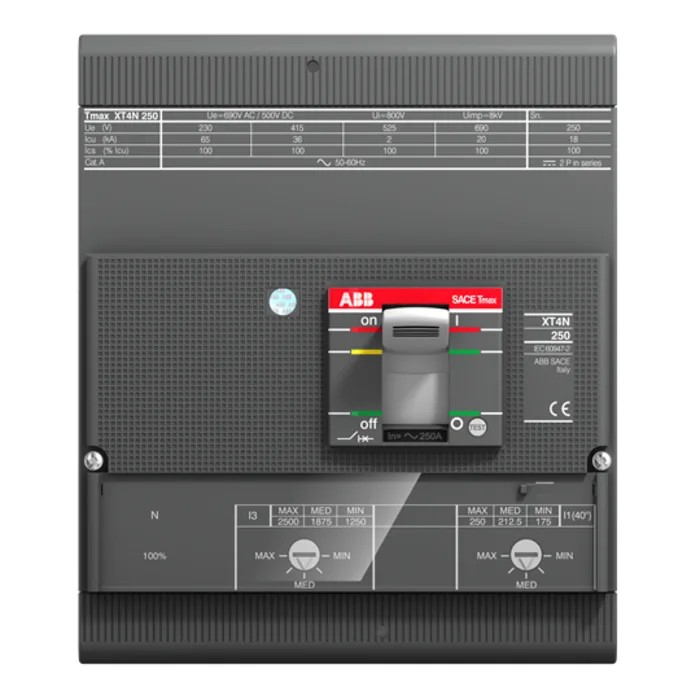

ABB Tmax XT Molded Case Circuit Breaker 4-Pole 20A 690V AC 500V DC Thermal Magnetic Lever 1SDA068094R1 XT4N 160 TMD 20A FF

Free Delivery in India | Lowest Global Shipping Charges

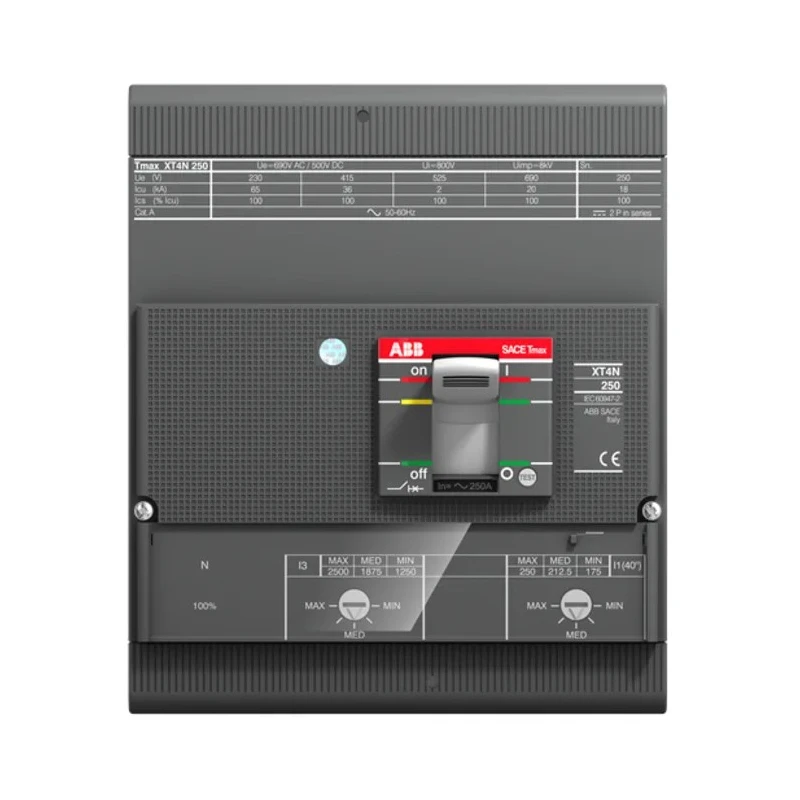

ABB Tmax XT Molded Case Circuit Breaker 4-Pole 20A 690V AC 500V DC Thermal Magnetic Lever 1SDA068094R1 XT4N 160 TMD 20A FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	160mm
Model	1SDA068094R1 XT4N 160 TMD 20A FF
Depth	82.5mm
Width	140mm
Mount Type	Fixed
Current Rating	20A
Series	Tmax XT
Terminal type	Fixed
Breaking Capacity	65kA
Number of Poles	4
Standards/Approvals	CE, IEC, RoHS
Rated AC Voltage	690V ac
Rated DC Voltage	500V dc
Better World Claim	Designed for Disassembly
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Lever
Rated current (In)	20 A In
Rated frequency (f)	50/60 Hz
Rated voltage (Ur)	690 V
Rated impulse withstand voltage (Uimp)	8 kV

Key Features

Operates at rated AC voltage of 690V and DC voltage of 500V.
Equipped with thermal magnetic tripping mechanism for reliable protection.
Features front fixed terminals and lever reset actuator for ease of use.
Compact dimensions with 160mm height, 140mm width, and 82.5mm depth.
Conforms to CE, IEC, and RoHS standards ensuring quality and safety.
Rated impulse withstand voltage of 8 kV for enhanced durability.
Designed as a Better World product with disassembly considerations for sustainability.
Suitable for industrial, commercial, HVAC, and electrical automation applications.

Product Description

ABB 1SDA068094R1 XT4N 160 TMD 20A FF Molded Case Circuit Breaker is a high-performance 4-pole circuit breaker with a current rating of 20 amperes. It operates efficiently at a rated AC voltage of 690 volts and a DC voltage of 500 volts, offering robust protection for electrical systems.

This circuit breaker features a thermal magnetic tripping mechanism that provides reliable overload and short-circuit protection. The fixed mounting and front terminal design facilitate secure and stable installation in electrical panels.

Designed for ease of operation, it includes a lever-type reset actuator allowing quick manual reset after tripping events. The breaker dimensions are compact and standardized with a height of 160 mm, width of 140 mm, and a depth of 82.5 mm, allowing versatile installations in various configurations.

Conforming to international standards such as CE, IEC, and RoHS ensures safety, environmental compliance, and adherence to quality benchmarks. The rated impulse withstand voltage of 8 kV enhances the circuit breaker's ability to withstand voltage spikes and surges.

Registered as a Better World product, this breaker is thoughtfully designed for disassembly and recycling, supporting sustainability initiatives in industrial environments. Operates at rated AC voltage of 690V and DC voltage of 500V.

Thermal magnetic tripping mechanism provides sensitive protection. Fixed mounting and front terminal type ensure secure connectivity. Compact size with 160 mm height, 140 mm width, and 82.5 mm depth. Complies with CE, IEC, and RoHS standards.

Rated impulse withstand voltage of 8 kV for enhanced durability. Designed for sustainability with Better World disassembly claim. Suitable for use in industrial, commercial, construction, and automation systems. This ABB Molded Case Circuit Breaker belongs to the Tmax XT range, a trusted line of breakers known for advanced protection and reliability in electrical distribution systems.

Explore more ABB electrical components and circuit breakers at EnvMart for robust industrial and commercial solutions.
