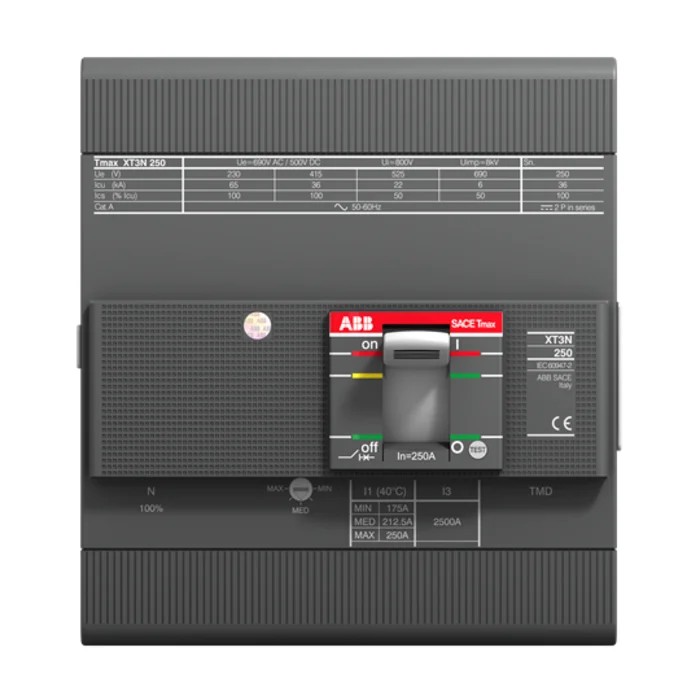

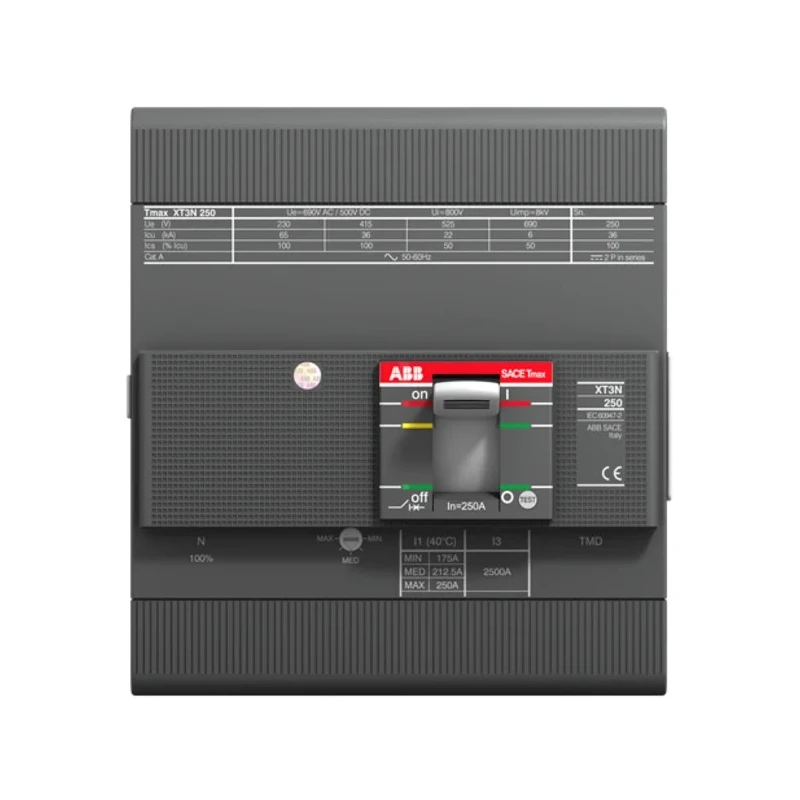

ABB Tmax XT Molded Case Circuit Breaker 4-Pole 250A Breaking Capacity 85 kA Fixed 1SDA068228R1 XT3S 250 TMD 250A 3P+N FF
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Tmax XT |
| Brand | ABB |
| Height | 150mm |
| Model | 1SDA068228R1 XT3S 250 TMD 250A 3P+N FF |
| Depth | 70mm |
| Width | 140mm |
| Mount Type | Fixed |
| Current Rating | 250A |
| Series | Tmax XT |
| Terminal type | Fixed |
| Breaking Capacity | 85kA |
| Number of Poles | 4 |
| Standards/Approvals | IEC, CE, RoHS |
| Rated AC Voltage | 690V ac |
| Rated DC Voltage | 500V dc |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Lever |
| Rated current (In) | 250 A In |
| Rated frequency (f) | 50/60 Hz |
| Rated voltage (Ur) | 690 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
Key Features
- Designed for fixed mounting with front terminal type.
- Operates at rated AC voltage of 690V and DC voltage of 500V.
- Features a thermal magnetic tripping mechanism for reliable protection.
- Equipped with a lever reset actuator for ease of operation.
- Bears IEC, CE, and RoHS certifications ensuring quality and compliance.
- Compact dimensions of 150mm height, 140mm width, and 70mm depth suitable for various installations.
- Rated frequency ranges from 50 to 60 Hz for versatile applications.
- Constructed to meet high rated impulse withstand voltage of 8 kV for enhanced durability.
Product Description
The ABB 1SDA068228R1 XT3S 250 TMD 250A 3P+N FF Molded Case Circuit Breaker from the Tmax XT range is engineered to provide robust protection for electrical circuits in industrial and commercial settings. Featuring a 4-pole design with fixed mounting and front terminals, this breaker is rated for a continuous current of 250A and offers a high breaking capacity of 85 kA, ensuring safe interruption of fault currents.
Operating at rated AC voltages up to 690V and DC voltages up to 500V, the device supports applications across various electrical systems. The thermal magnetic tripping mechanism affords reliable protection against overloads and short circuits, while the lever-type reset actuator enhances operational convenience.
With dimensions of 150mm height, 140mm width, and 70mm depth, it suits compact panels and distribution boards. The breaker complies with essential industry standards including IEC, CE, and RoHS, reflecting ABB's commitment to quality and environmental responsibility.
Designed in Italy, this Better World product is made for disassembly, aligning with sustainability goals. It carries a rated frequency of 50/60 Hz and a rated impulse withstand voltage of 8 kV, denoting resilience under transient conditions.
This Molded Case Circuit Breaker is ideal for industrial automation, electrical distribution, manufacturing facilities, HVAC systems, and other applications requiring dependable current interruption and circuit safety.
Fixed mounting with front terminal type enhances installation stability. Thermal magnetic tripping mechanism ensures effective overload and short circuit protection. Compact size fits a variety of electrical enclosure configurations.
Complies with IEC, CE, and RoHS standards for safety and environment. Designed for disassembly contributing to sustainability efforts. Suitable for industrial, commercial, and automation electrical protection. Explore more high-quality ABB circuit breakers and electrical components on EnvMart to meet your system requirements with confidence.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this molded case circuit breaker is 85 kA, ensuring safe interruption of fault currents.
It operates at a rated AC voltage of 690V and a rated DC voltage of 500V, making it suitable for various electrical systems.
This model has a continuous current rating of 250A, designed for robust electrical protection.
It features a thermal magnetic tripping mechanism, providing reliable protection against overloads and short circuits.
The circuit breaker has compact dimensions of 150mm in height, 140mm in width, and 70mm in depth, suitable for various installations.
It complies with IEC, CE, and RoHS standards, reflecting its quality and environmental compliance.
The rated frequency for this model ranges from 50 to 60 Hz, accommodating a variety of applications.
This model is designed for fixed mounting with front terminals, enhancing installation stability.
It has a rated impulse withstand voltage of 8 kV, indicating resilience under transient conditions.
It is equipped with a lever reset actuator, which enhances operational convenience during reset operations.
This molded case circuit breaker is manufactured in Italy, ensuring adherence to quality standards.
It is suitable for industrial automation, electrical distribution, manufacturing facilities, and HVAC systems, providing dependable current interruption and circuit safety.
