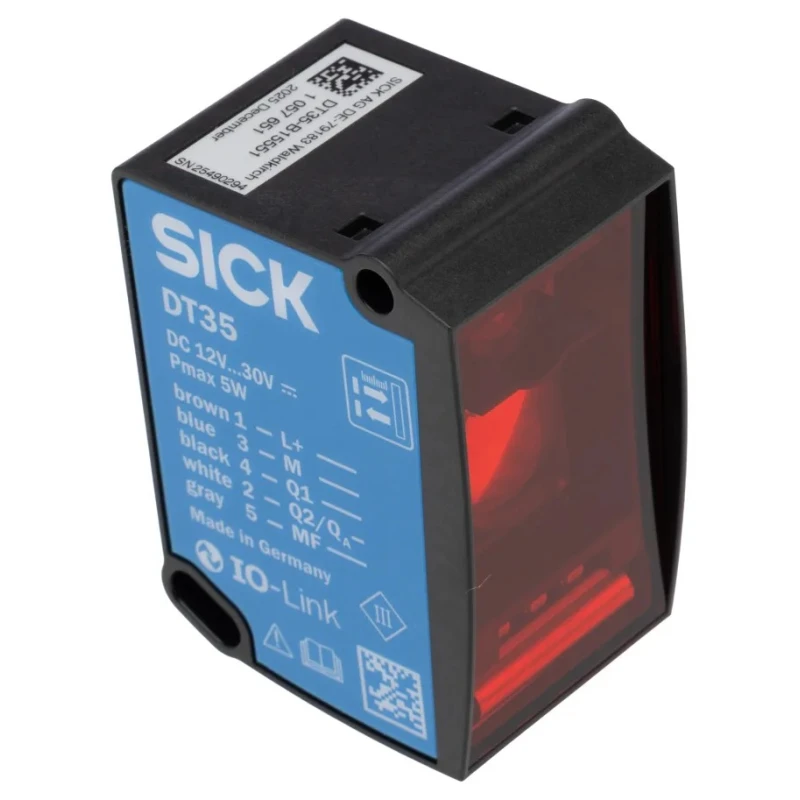

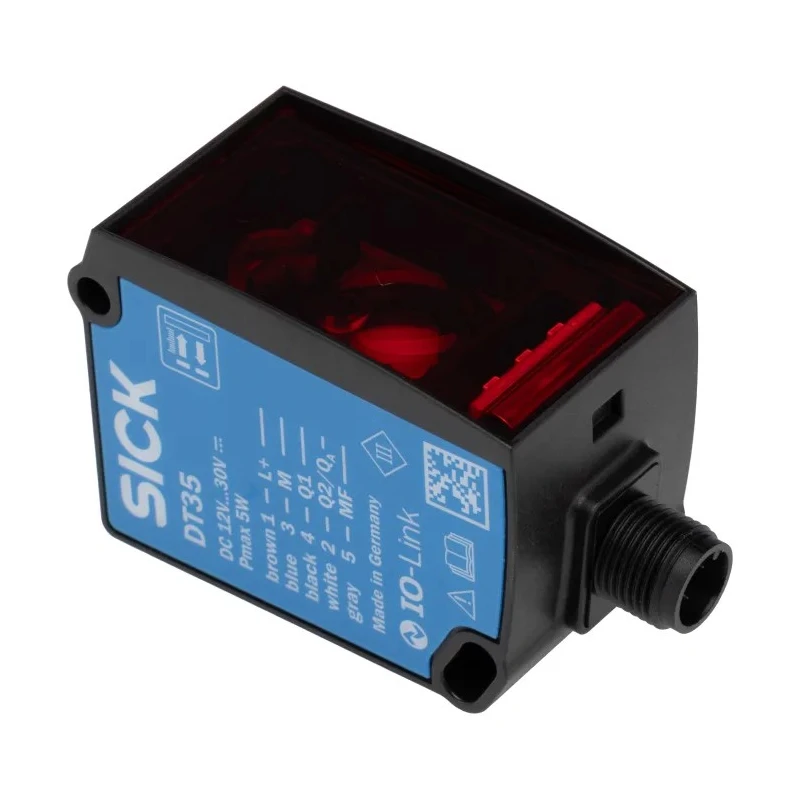

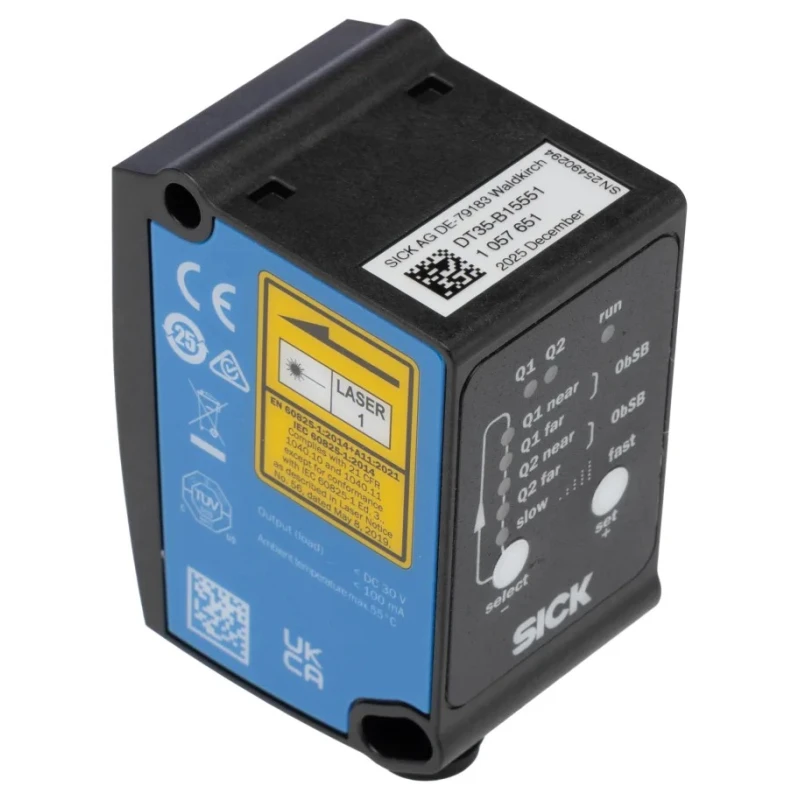

SICK Industrial Distance Sensor, Block Style, Analogue PNP/NPN NO/NC Output, 0.05 mm to 12 m Range, 30 V DC DT35-B15551
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 4.5, 12.5, 24.5, 48.5, 192ms |
| Light Source | Red Laser |
| Detection range | 0.05 mm → 12 m |
| Model | DT35-B15551 |
| IP Rating | IP67, IP65 |
| Mount Type | Panel |
| Housing Material | ABS |
| Output type | Analogue, PNP/NPN NO/NC |
| Series | Dx35 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 30°C |
| Maximum Current | 100mA |
| DetectIon Type | Distance |
| Terminal type | 5-Pin M12 |
| Interface Type | IO-Link V1.1 |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | cULus, EAC, CE |
| Materials Detected | Natural Object |
| Sensor Style | Block |
Key Features
- High-precision distance measurement with red laser light source.
- Robust ABS housing with IP67 and IP65 ingress protection ratings.
- Flexible IO-Link V1.1 interface for seamless industrial integration.
- Fast response time as low as 4.5 milliseconds for dynamic operations.
- Wide operating temperature range suitable for harsh environments.
- Panel mount design with standard 5-pin M12 connector.
- Supports natural object detection with selectable output logic.
- Complies with laser class 1 safety at 658 nm wavelength.
Product Description
The SICK DT35-B15551 distance sensor is an industrial-grade block sensor designed for accurate and reliable distance measurement applications. Featuring a visible red laser light source with a 658 nm wavelength, it offers a detection range from 0.05 mm up to 12 m, making it ideal for precise position monitoring and level measurement.
Constructed with durable ABS housing, the sensor is rated IP67 and IP65 for robust protection against dust and water ingress, suitable for demanding industrial environments including automation, manufacturing lines, and material handling systems.
Equipped with a 5-pin M12 connector and IO-Link V1.1 communication protocol, the DT35-B15551 supports flexible wiring options and easy integration into control systems. Outputs include analogue signals with selectable 4mA - 20mA or 0V - 10V ranges, and push-pull PNP/NPN configurations with normally open or normally closed logic, catering to diverse automation setups.
The sensor ensures fast response times ranging from 4.5 ms to 192 ms, enabling high-speed detection for pick-and-place automation and object presence monitoring. The operating temperature range from - 30°C to +55°C accommodates a wide spectrum of industrial climates while maintaining performance.
Applications include conveyor line position monitoring, level measurement of reflective bulk materials, distance feedback in robotics, and presence detection with background suppression. Complying with IEC/EN 60825-1, it meets laser safety class 1 standards, ensuring safe operation.
High-precision red laser distance sensor with up to 12 m range. Robust ABS housing with IP67 and IP65 rated protection. Flexible analogue and digital push-pull output types including IO-Link interface. Fast response times down to 4.5 milliseconds for dynamic sensing.
Wide operating temperature from - 30°C to +55°C for harsh industrial use. Standard 5-pin M12 panel mount connector for easy installation. Laser safety class 1 compliance at 658 nm wavelength. Versatile applications in industrial automation and material handling.
Explore similar high-performance industrial sensors in the Electronics & Electricals Automation & Control Gear Sensors category at EnvMart, your trusted industrial catalog partner.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is from 0.05 mm to 12 m, allowing for precise distance measurement in various applications.
It supports analogue outputs as well as push-pull PNP/NPN configurations with normally open or normally closed logic, providing flexibility for different automation setups.
The response time can be as low as 4.5 milliseconds, making it suitable for dynamic operations such as pick-and-place automation.
The sensor is rated IP67 and IP65, providing robust protection against dust and water ingress for demanding industrial environments.
It operates effectively within a temperature range of -30°C to +55°C, accommodating various industrial climates.
This unit features a standard 5-pin M12 connector, facilitating easy installation and integration into control systems.
It is designed to detect natural objects, making it suitable for applications like position monitoring and level measurement.
The maximum current output is 100 mA, which supports its various output configurations.
It complies with IEC/EN 60825-1 standards, ensuring it meets laser safety class 1 requirements.
The housing is made of ABS, providing durability for industrial applications.
It supports the IO-Link V1.1 communication protocol, allowing for flexible integration into automation systems.
Typical applications include conveyor line position monitoring, level measurement of reflective bulk materials, and presence detection in robotics.
