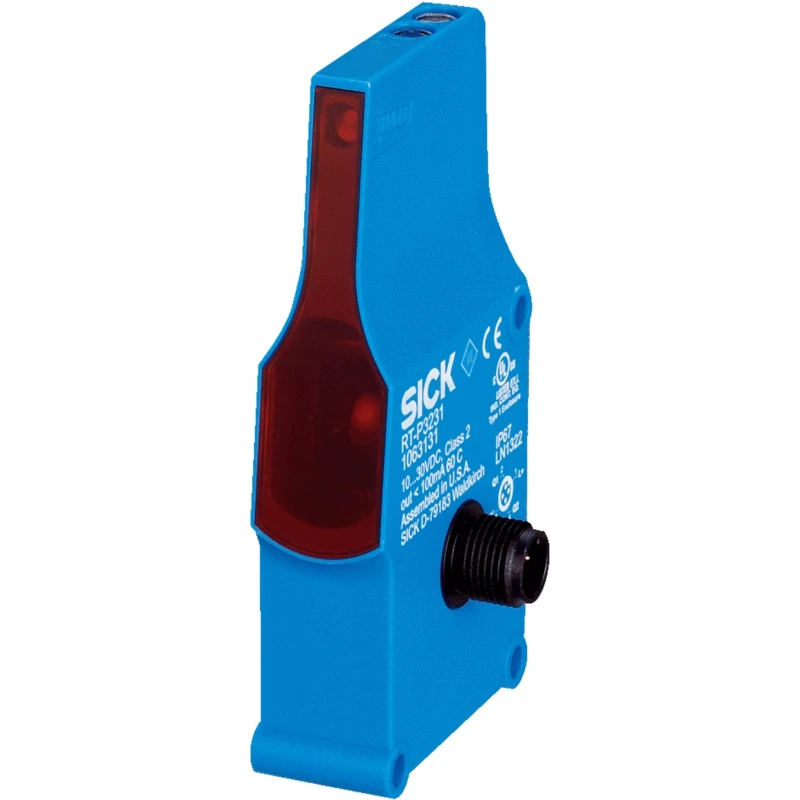

SICK Background Suppression Photoelectric Sensor Block Sensor, 60 mm to 900 mm Detection Range, PNP Output, IP67 RT-P3223

SICK RT-P3223 Background Suppression Photoelectric Sensor is a highly reliable block sensor designed to detect objects within a range of 60 mm to 900 mm with a PNP output type. It is engineered for industrial automation needs, providing precision and durability with its IP67-rated plastic housing.

This sensor is suitable for a wide range of industrial applications including zero pressure accumulation on conveyor belts, automated load transfer and picking, automated wheel and tire separation, and controlled load transfer to automated guided vehicle systems.

The RT-P3223 sensor provides three mounting options: mounting between rollers (R/IR), on the side frame (ZLM), or above the belt (WLR), offering flexible installation suited to varied conveyor arrangements. Its response time of 2 ms ensures rapid sensing for process optimization.

Designed with robust materials and compliance to CE and UL standards, this sensor supports a maximum operating voltage of 30 V DC and current up to 100 mA. The LED light source ensures reliable detection with minimal maintenance.

SICK’s ZoneControl technology embedded in this sensor enables up to 50 units to be connected in series, allowing precise control of product flow without the need for PLCs or programming. This modular approach simplifies installation, expansion, and maintenance.

The sensor features a block sensor style designed for background suppression applications. Equipped with a 4-pin connector terminal for secure and easy installation. IP67 rated housing ensures dust and waterproof operation for industrial environments.

Operates within temperature range of -40°C to 60°C for versatile use. Response time of 2 ms supports fast and accurate detection. Has a maximum current of 100 mA and maximum DC voltage of 30 V DC. Utilizes LED light source for consistent sensing performance.

Compliant with CE and UL certifications for safety and quality assurance. Designed with plastic housing material for durability and lightweight handling. Suitable for ZoneControl series to manage zero pressure accumulation conveyor applications without a PLC.

This sensor is made in the United States and is ideal for industrial, manufacturing, automation, conveyor control, and material handling applications. Its high protection rating and flexible mounting options make it a versatile component for controlling automated processes efficiently.
