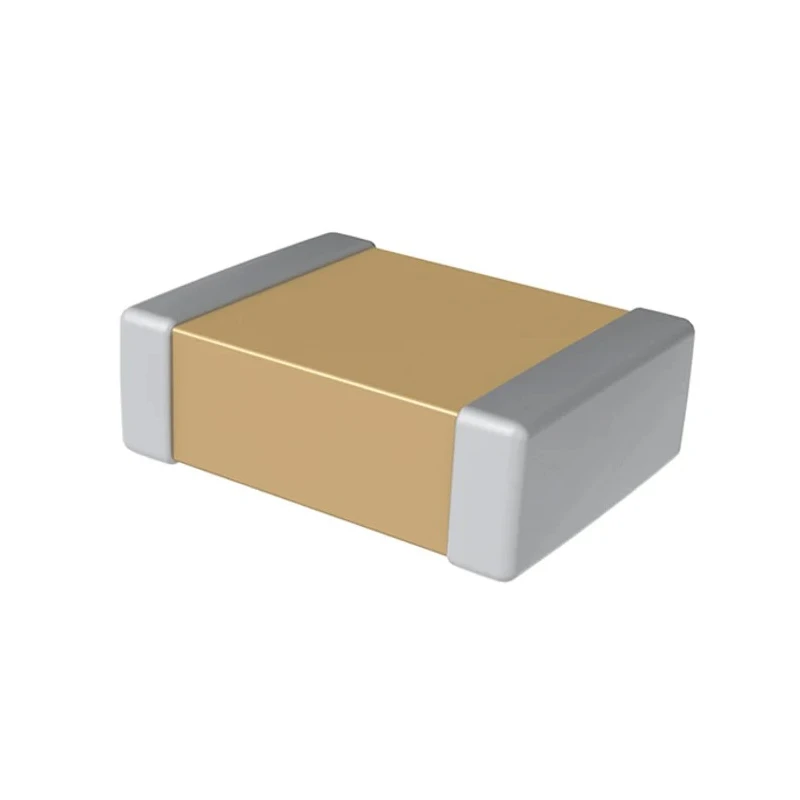

KEMET 22 nF Multilayer Ceramic Capacitor 1kV DC 5% Tolerance Surface Mount 1210 Package C1210X223JDGACAUTO
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 1kV dc |
| Brand | KEMET |
| Height | 0.6mm |
| Length | 3.3mm |
| Model | C1210X223JDGACAUTO |
| Packaging | Tape & Reel |
| Width | 2.6mm |
| Mount Type | Surface |
| Construction | Stacked |
| Series | C1210 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | 5 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1210 |
| Dielectric | C0G |
| Automotive Standard | AEC-Q200 |
Key Features
- This capacitor features a C0G dielectric ensuring minimal capacitance variation over temperature.
- Its construction is stacked ceramic in a standard 1210 surface mount package.
- Operating voltage rating is 1kV DC with an automotive-grade AEC-Q200 qualification.
- The capacitor supports a temperature range from -55°C to 125°C suitable for demanding applications.
- Features tape and reel packaging for automated assembly processes.
- Exhibits low equivalent series resistance (ESR) making it ideal for high frequency filtering.
- Negligible capacitance shift occurs with voltage and temperature changes, ensuring stable operation.
- Flexible termination design addresses common failure mode of flex cracks in MLCCs.
Product Description
KEMET C1210X223JDGACAUTO 22 nF Multilayer Ceramic Capacitor is a surface mount device in a 1210 package, designed for high voltage (1kV DC) and automotive applications. It utilizes a C0G dielectric and stacked construction to ensure reliability and minimal capacitance variation across a wide temperature range.
Manufactured to meet AEC-Q200 automotive standards, this capacitor operates from -55°C up to 125°C, making it suitable for harsh environments typically encountered in automotive and industrial electronics.
The capacitor features flexible termination technology to mitigate flex cracking, the primary failure mode in multilayer ceramic capacitors, resulting in enhanced durability and extended service life.
Its low equivalent series resistance (ESR) at high frequencies and stable capacitance under voltage and temperature stress make it ideal for use in snubber circuits, EMI filters, switching power supplies, and lighting ballasts.
This device is supplied in tape and reel packaging, facilitating automated PCB assembly. Dimensions are 3.3mm length, 2.6mm width, and 0.6mm height, complying with the 1210 package outline. Termination type is solder, ensuring robust electrical and mechanical connections.
Standards compliance includes AEC-Q200, EIA 481, EIA 556, EIA 624, IPC-7351, and J-STD-020. Country of origin is Mexico, underscoring manufacturing quality.
This multilayer ceramic capacitor is widely used in electronics, automotive, industrial, and power management applications to ensure stable capacitance and reliable operation under demanding conditions.
Discover the extensive range of KEMET capacitors and components at EnvMart for your industrial and electronics manufacturing needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this capacitor is 1kV DC.
This model has a capacitance value of 22 nF.
It operates within a temperature range of -55°C to 125°C.
It utilizes a C0G dielectric, which ensures minimal capacitance variation over temperature.
The dimensions of this capacitor are 3.3mm in length, 2.6mm in width, and 0.6mm in height.
The termination type is solder, which ensures robust electrical and mechanical connections.
It is supplied in tape and reel packaging, facilitating automated assembly processes.
Yes, it meets the AEC-Q200 automotive standard, ensuring its suitability for automotive applications.
The capacitor features a stacked construction, which contributes to its reliability.
The country of origin for this capacitor is Mexico.
It exhibits low equivalent series resistance (ESR), making it ideal for high frequency filtering applications.
