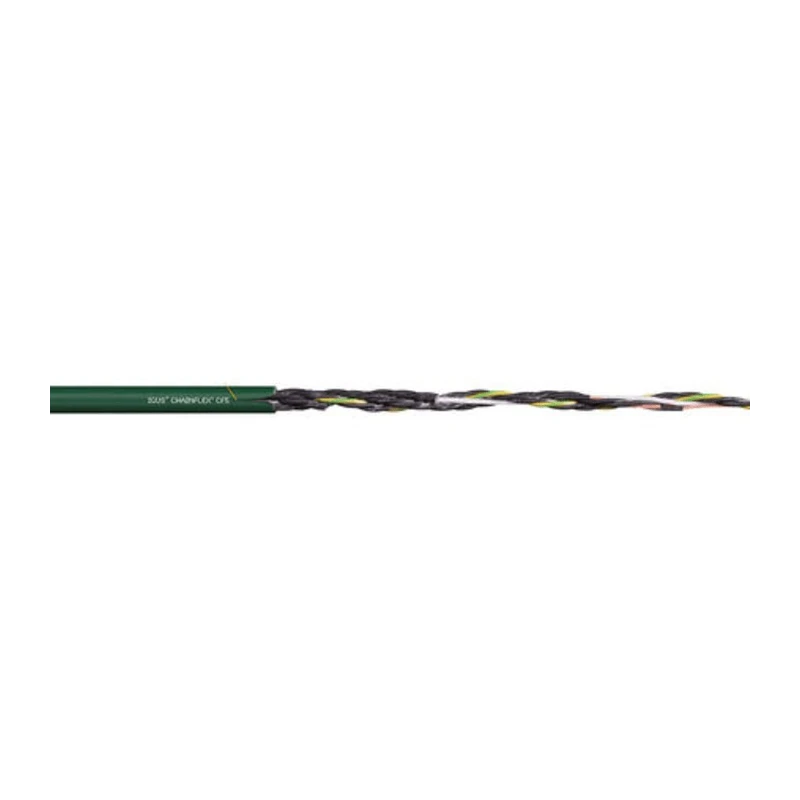

Igus Chainflex CF5 Control Cable 25 Cores 0.5mm² 20 AWG Unscreened 20 m Green Polyvinyl Chloride Sheath CF5.05.25
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Igus |
| Model | CF5.05.25 |
| Cable Length | 20m |
| Series | chainflex CF5 |
| Outside diameter | 17mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 25 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | EN, CE |
| Jacket Colour | Green |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 0.5mm² |
| • Conductor markings | black conductors, numbered in white, plus a green/yellow conductor |
Key Features
- The cable features stranded copper conductors for flexibility and durability.
- Constructed with a green polyvinyl chloride jacket providing flame retardant properties.
- Engineered for permanent support in high-speed flex movements within cable-holder chains.
- Has a cable length of 20 meters with an outside diameter of 17 mm.
- Operates safely up to 300V with temperature range from -5°C to 70°C.
- Meets EN and CE standards ensuring compliance to European requirements.
- Suitable for industrial automation, control gear, and electrical power applications.
Product Description
Igus CF5.05.25 Control Cable is a high-quality control cable featuring 25 flexible stranded copper cores each of 0.5mm² cross-section (20 AWG), unscreened, and sheathed in durable green polyvinyl chloride known for flame retardancy. This cable measures 20 meters in length and has an outside diameter of 17 mm, designed for use within cable-holder chains requiring permanent support for high-speed, repetitive flexing.
Its construction includes conductors gathered into harnesses assembled around a pull-resistant central core with very short strand pitch reducing torsion during operation. Conductor markings include black cores numbered in white, plus a green/yellow protective conductor.
This cable supports an operating voltage of up to 300V and functions reliably within a temperature range of -5°C minimum and 70°C maximum, making it suitable for demanding industrial environments. It is armoured for added durability and safety, though unscreened to permit use in specific control applications.
The cable complies with EN and CE standards and carries no hazardous area certification. Its flame retardant behaviour adds a safety margin in electrical installations where fire risk is a concern.
This product is ideally suited for applications in industrial automation, electrical power distribution, robotics, and manufacturing control systems. The cable's flexibility and mechanical design optimize its use in environments involving moving parts and continuous bending.
The cable has 25 copper cores, stranded for flexibility. Green polyvinyl chloride jacket provides insulation and flame retardancy. Engineered for use in cable-holder chains for permanent, high speed operation. Rated for 300V voltage and temperature range of -5°C to 70°C.
Conductor identification with numbered black cores and green/yellow conductor. Constructed with armouring to resist mechanical stress. Certified to EN and CE standards for industrial applications. Manufactured in Germany ensuring high product quality.
Explore our full range of Control Cables at EnvMart for reliable electrical and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length of this model is 20 meters.
It can operate reliably at a maximum temperature of 70°C.
This control cable features 25 cores.
The outside diameter of this model is 17 mm.
The conductors are made of stranded copper, which provides flexibility.
It supports an operating voltage of up to 300V.
The minimum operating temperature is -5°C.
The jacket is constructed from green polyvinyl chloride (PVC).
Yes, it complies with EN and CE standards.
It has flame retardant properties, adding safety in electrical installations.
It is suitable for industrial automation, electrical power distribution, and robotics.
The conductors are black and numbered in white, with a green/yellow protective conductor.
