Igus chainflex CF240.PUR Data Cable 7 Cores 0.34mm² 22 AWG Screened Thermoplastic Elastomer Sheath 50 m CF240.PUR.03.07 (50m)

Free Delivery in India | Lowest Global Shipping Charges

Igus chainflex CF240.PUR Data Cable 7 Cores 0.34mm² 22 AWG Screened Thermoplastic Elastomer Sheath 50 m CF240.PUR.03.07 (50m)

Name: Igus chainflex CF240.PUR Data Cable 7 Cores 0.34mm² 22 AWG Screened Thermoplastic Elastomer Sheath 50 m CF240.PUR.03.07 (50m)
Brand: IGUS
SKU: 283096
Price: 11.4 USD
Availability: InStock



Category Data Cable Brand IGUS Condition New

Specifications

Country of Origin	Germany
Brand	Igus
Model	CF240.PUR.03.07 (50m)
Cable Length	50m
Series	chainflex CF240.PUR
Maximum Operating Temperature	80°C
Number Of Cores	7
Conductor Material	Copper
Jacket Material	Thermoplastic Elastomer
Standards/Approvals	CE, EN
Jacket Colour	Grey
American Wire Gauge	22AWG
Screened/Unscreened	Screened
Conductor Type	Stranded
Cable CSA	0.34mm²

Key Features

Contains 7 stranded copper cores with 0.34mm² cross-sectional area each.
Constructed with a thermoplastic elastomer jacket that is grey colored for industrial identification.

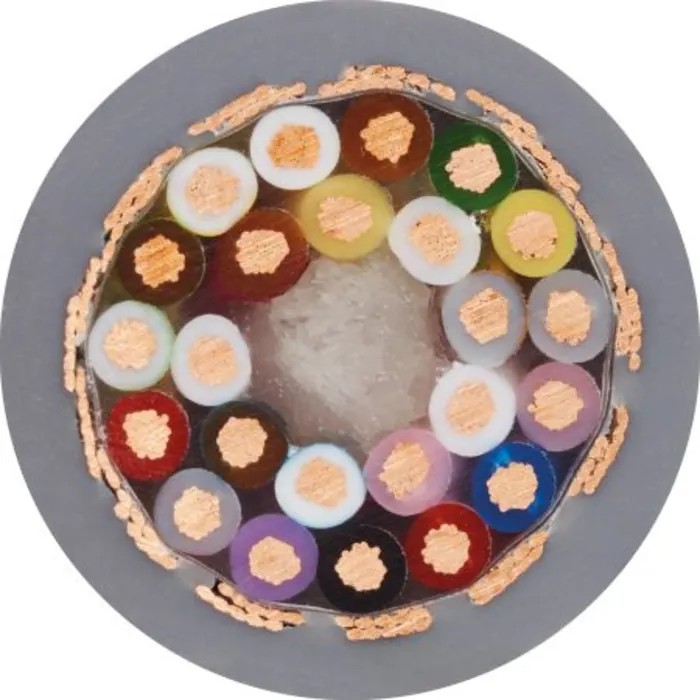

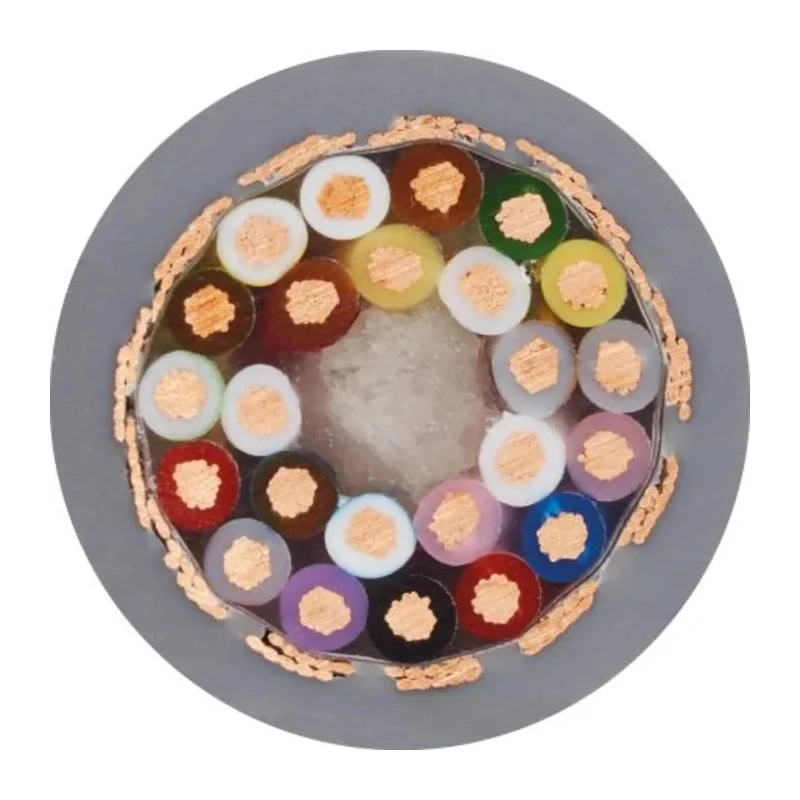

Screened design with a low angled braided screen for protection against EMI in dynamic applications.
Supports continuous flexing in e-chain applications with a small bend radius and extended service life.
Oil resistant Class 4, flame retardant, halogen-free, and silicone-free materials ensure durability in harsh environments.
Complies with multiple international standards including UL/CSA, NFPA 79-2018, RoHS II, and DNV/GL approvals.
Designed and manufactured in Germany with a 36-month chainflex guarantee based on extensive lab testing.

Product Description

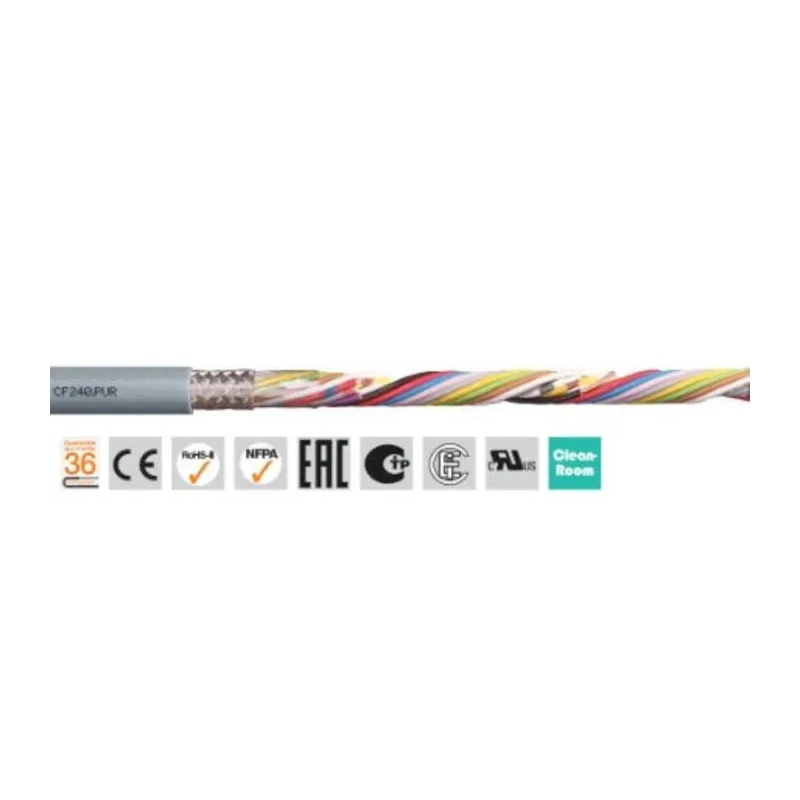

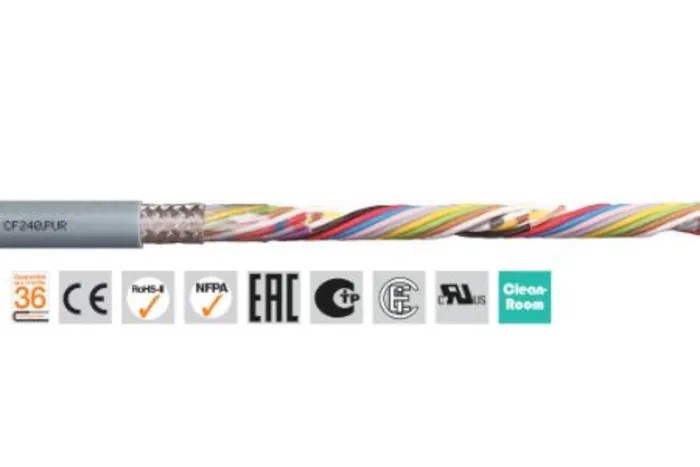

Igus CF240.PUR.03.07 (50m) is an industrial-grade chainflex Data Cable consisting of 7 cores of 0.34mm² (22 AWG) stranded copper conductors, enclosed within a grey thermoplastic elastomer (TPE) sheath. This screened cable offers optimized protection against electromagnetic interference, making it ideal for demanding automation and control applications in manufacturing, machine tooling, packaging, refrigeration, and warehousing industries.

The cable's TPE jacket provides exceptional abrasion resistance and is engineered to withstand chemical and oil exposure, classified as Class 4 oil resistant. The patented bundle design allows a small bend radius, supporting installation in e-chain cable carriers with minimal space requirements and extending cable lifespan even under continuous flexing conditions.

This 50 meter cable operates safely up to 80°C with voltage ratings of 300/500 V for control cable applications. It meets CE and EN standards, is flame retardant (IEC 60332-1-2, CEI 20-35, FT1, VW1), halogen-free, and silicone-free, ensuring compliance with international safety and environmental directives such as RoHS II and NFPA 79-2018.

Additional approvals include UL/CSA style 10493 and 20233, DNV/GL certification, and NEK 606 MUD resistance status 2009. The cable is suitable for indoor and outdoor use with medium UV resistance and supports long travel lengths up to 400m in e-chain applications. Its durable construction minimizes downtime and maintenance requirements in industrial environments.

The product is manufactured in Germany under Igus' chainflex guarantee, validated by extensive laboratory testing of over 600 simultaneous tests to provide a 36-month warranty for reliability and performance.

Contains 7 stranded copper cores with 0.34mm² sectional area each. Thermoplastic elastomer grey jacket offering high abrasion and chemical resistance. Screened construction with low angled braided screen for EMI protection.

Small bend radius and flexible design ideal for installation in e-chain carriers. Rated 300/500 V, suitable for control cable applications up to 80°C. Flame retardant, halogen-free, silicone-free compliant to multiple international standards.

UL/CSA, DNV/GL approvals, and NFPA compliant for safety and reliability. 36-month chainflex guarantee backed by rigorous laboratory testing. Explore our wide range of industrial cables and data transmission solutions on EnvMart for reliable performance in electrical, automation, manufacturing, and HVAC applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating temperature of this data cable is 80°C.

This model contains 7 stranded copper cores.

Each conductor in this cable has a cross-sectional area of 0.34mm², equivalent to 22 AWG.

The jacket of this cable is made from thermoplastic elastomer, which provides high abrasion and chemical resistance.

Yes, this data cable is suitable for both indoor and outdoor use, with medium UV resistance.

This cable supports voltage ratings of 300/500 V for control cable applications.

It features a screened construction with a low angled braided screen to protect against electromagnetic interference (EMI).

This cable complies with multiple international standards, including CE, EN, UL/CSA, NFPA 79-2018, RoHS II, and DNV/GL approvals.

The length of this data cable is 50 meters.

The small bend radius allows for installation in e-chain cable carriers with minimal space requirements, extending the cable's lifespan under continuous flexing conditions.

Igus offers a 36-month chainflex guarantee for this cable, backed by extensive laboratory testing.

This data cable is designed for demanding automation and control applications in industries such as manufacturing, machine tooling, packaging, refrigeration, and warehousing.
