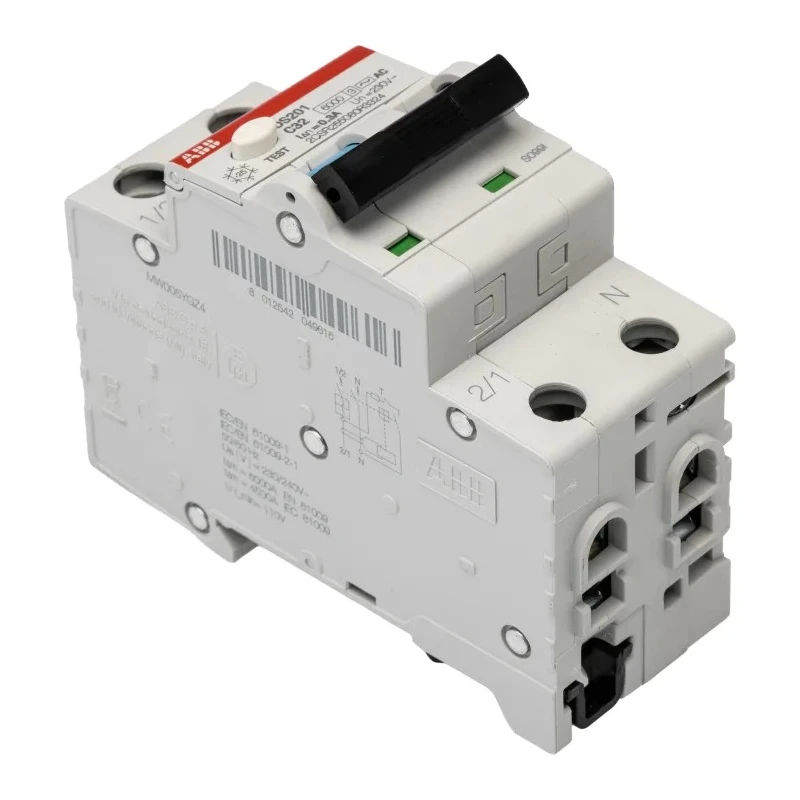

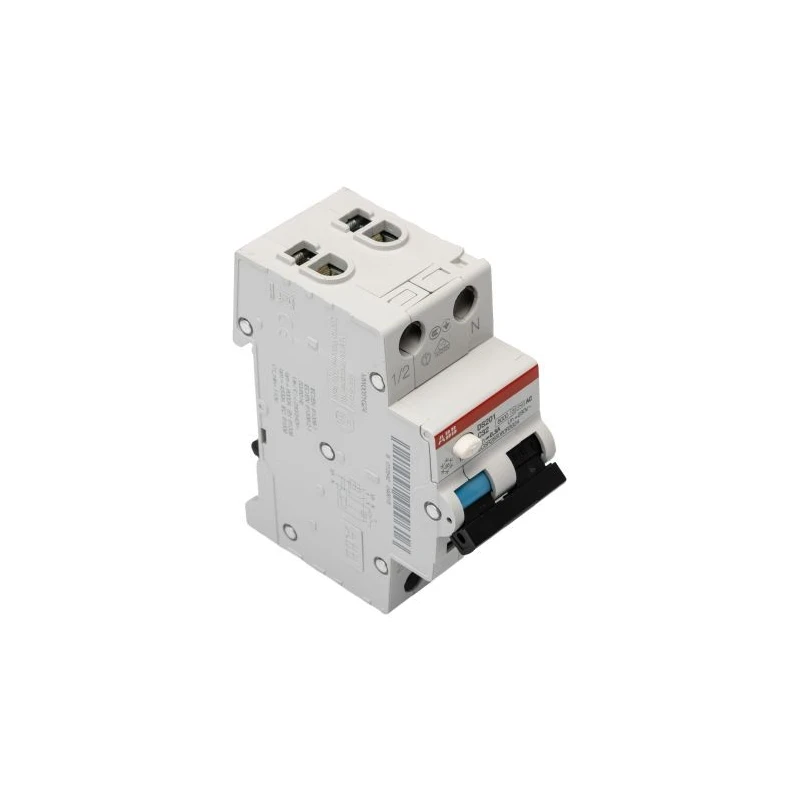

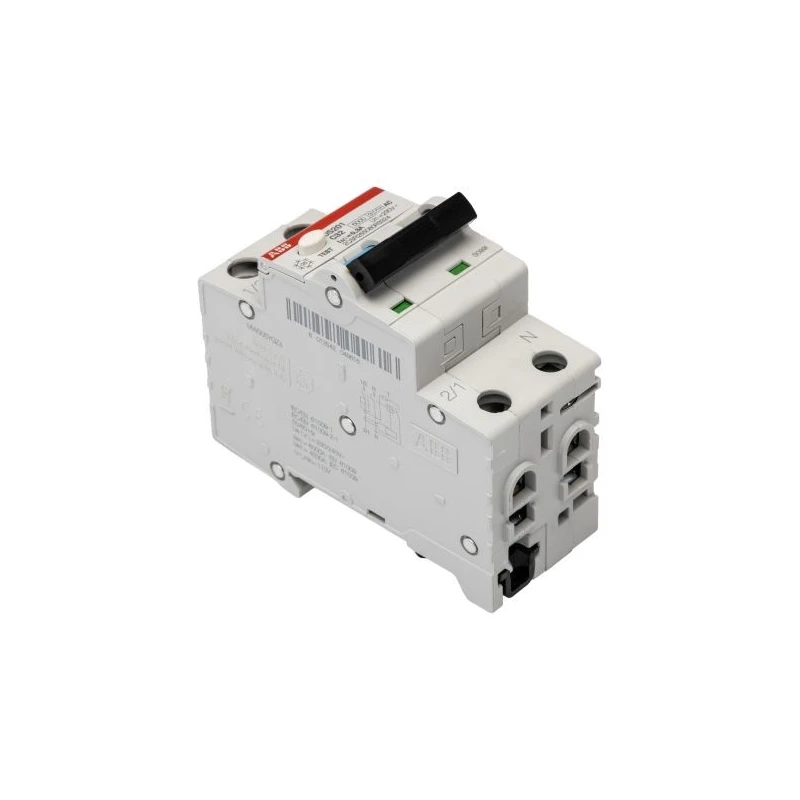

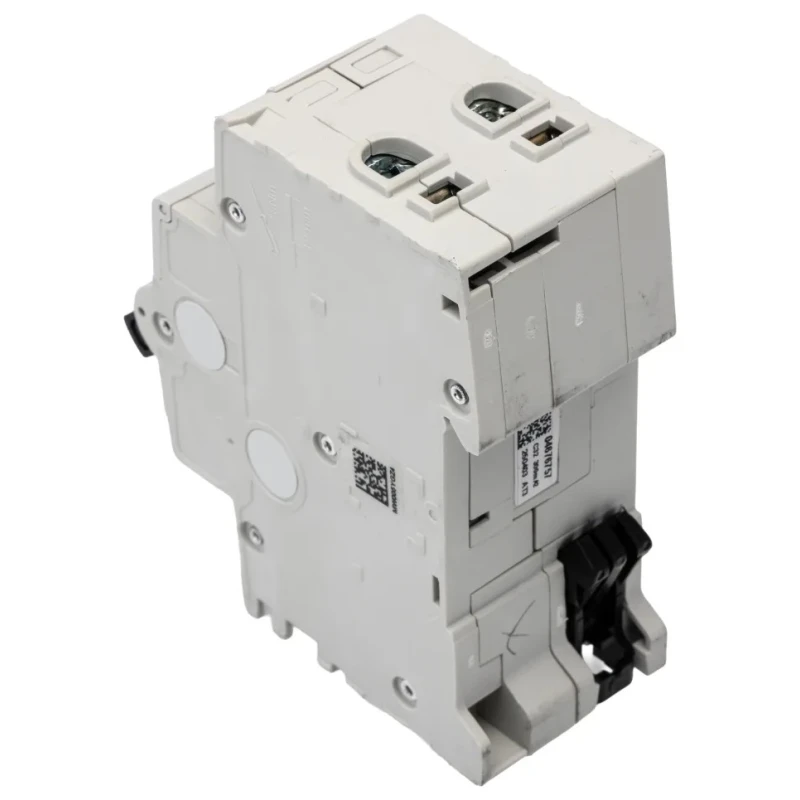

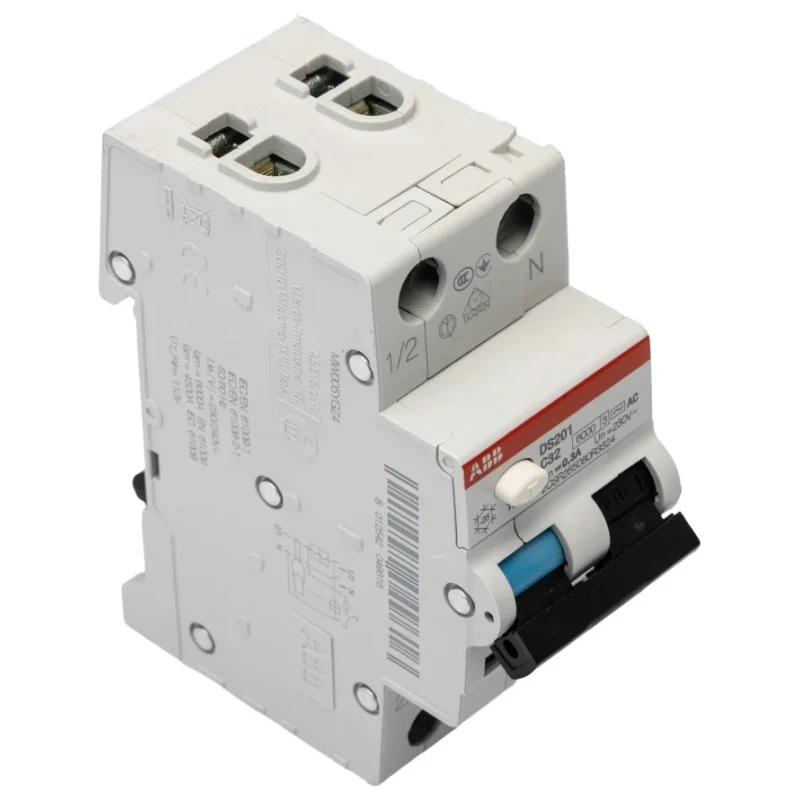

ABB Residual Current Circuit Breaker with Overload Protection 32A Current Rating 2-Pole 2CSR255080R3324 DS201 C32 AC300

ABB 2CSR255080R3324 DS201 C32 AC300 Residual Current Circuit Breaker with Overload Protection is engineered to safeguard single-phase electrical systems against overloads, short circuits, and earth faults. This device operates with a current rating of 32A and a trip sensitivity of 300mA, providing comprehensive protection for residential, commercial, and industrial applications requiring dependable circuit safety.

The RCBO features a two-pole configuration, enabling simultaneous interruption of both phase and neutral conductors, thus ensuring full circuit isolation. It employs thermal magnetic tripping mechanism with Type C characteristics, effectively balancing sensitivity and immunity to transient surges or inrush currents. The instantaneous breaking capacity of 10kA enhances safety by swiftly clearing severe fault conditions.

Its compact dimensions of 69mm width, 85mm height, and 69mm depth allow for efficient space utilization within control panels and quick installation on DIN rails. Screw terminals provide secure cable connections, and the toggle switch reset actuator offers easy manual reset capability, reducing downtime after trips.

The device conforms to IEC and RoHS standards, confirming its compliance with internationally recognized safety and environmental requirements. The earth leakage protection type AC safeguards users from electric shocks caused by leakage currents with effective trip sensitivity of 300mA, ideal for applications where enhanced protection is necessary.

Ideal for use in home electrical installations, automation systems, and commercial building wiring, this ABB Residual Current Circuit Breaker ensures reliable operation, safety, and compliance with electrical codes.

Protects against overloads, short circuits, and earth faults with reliable tripping mechanisms. Compact DIN rail mounting design for ease of installation and maintenance. Secure screw terminal connections prevent loose wiring risks.

Toggle switch reset actuator for quick restoration of circuit operation. Complies with IEC and RoHS standards assuring safety and environmental responsibility. Two-pole design supports comprehensive phase and neutral protection.

300mA trip sensitivity effectively prevents electric shock hazards. Suitable for residential, commercial, and light industrial electrical protection applications. Explore the full range of Residual Current Circuit Breakers and protections available at EnvMart for robust and compliant electrical safety solutions.
