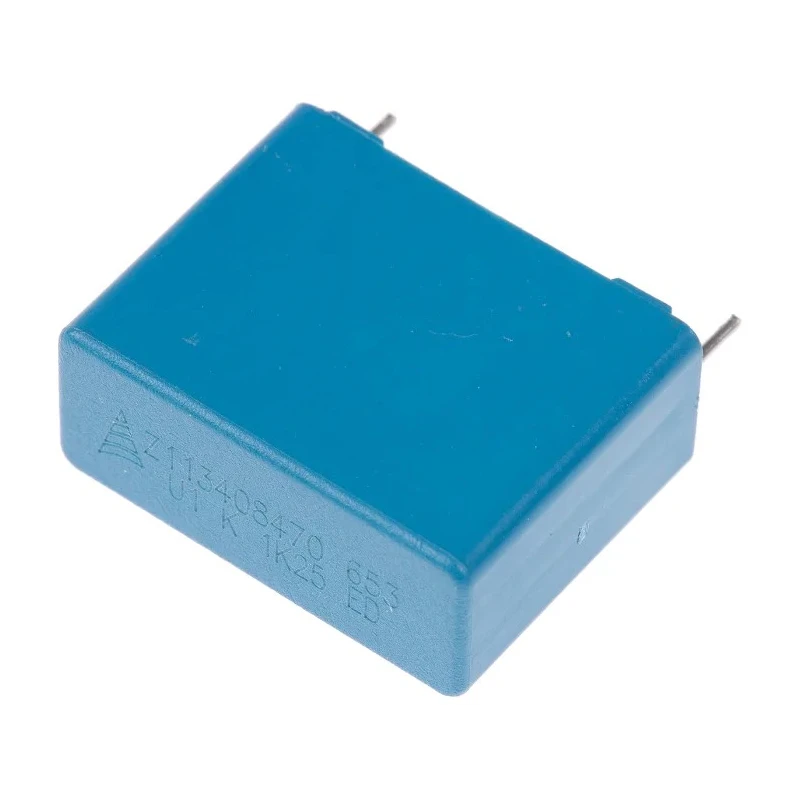

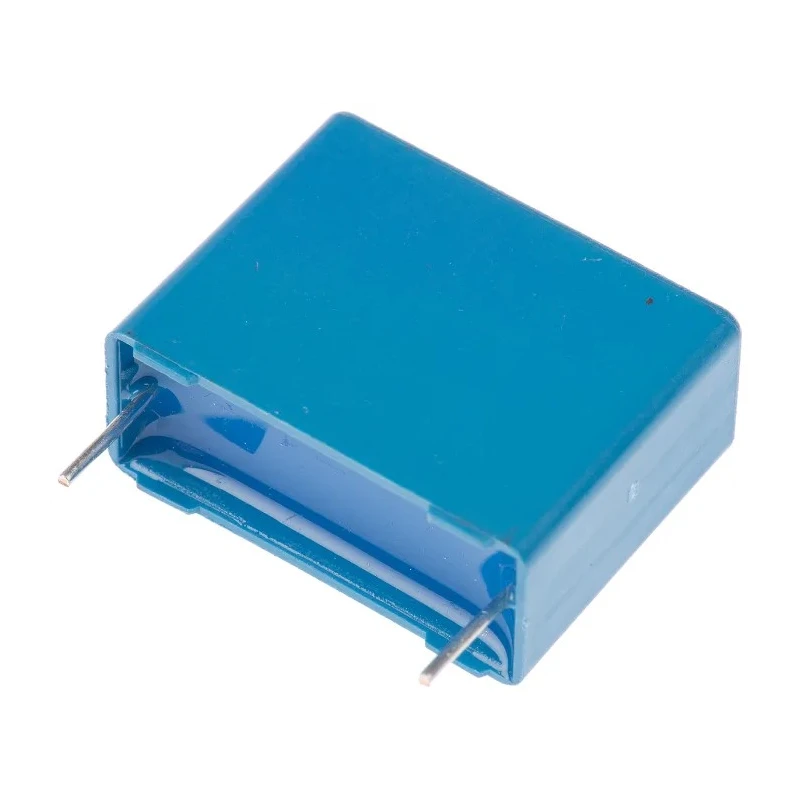

TDK Film Capacitor Through Hole Mount 100 nF Capacitance 500V AC 1.25 kV DC B32653A7104K000

TDK B32653A7104K000 is a high-quality Film Capacitor featuring a through-hole mount design, 100 nF capacitance, and rated for 500V AC and 1.25 kV DC voltages. This capacitor utilizes wound capacitor technology with an internal series connection to support voltages equal or greater than 1250 V DC while maintaining high pulse strength and contact reliability.

It is encapsulated in a flame-retardant plastic case complying with UL 94 V-0, with an epoxy resin seal that ensures durability and protection against environmental influences. The component maintains a maximum operating temperature of 100°C, suited for harsh electrical environments.

Typical applications for this capacitor include TV S-correction circuits, TV flyback and electronic ballast circuits, where stable, high-voltage and reliable capacitance is critical. The unit offers a lead pitch of 22.5 mm and pin diameter of 0.8 mm for secure through-hole PCB mounting. Dimensions are compact: 26.5 mm length, 11 mm width, and 20.5 mm height, which facilitates integration into dense electronic assemblies.

This capacitor meets the automotive standard AEC-Q200 Rev D for quality and reliability, making it suitable for automotive and industrial electronics. High pulse strength and reliable contact performance. Plastic casing with UL 94 V-0 flame retardant certification.

Epoxy resin seal for robust environmental protection. Wound capacitor technology for durable high voltage rating. Applications include TV, electronic ballast, and automotive systems. Compact form factor with precise lead pitch and pin dimensions.

Certified safety standards include UL and RoHS compliance.

Ideal for industrial, consumer electronics, automotive, and HVAC applications requiring reliable power conditioning and filtering. Explore related Film Capacitors at EnvMart to discover components optimized for your electronic designs.
