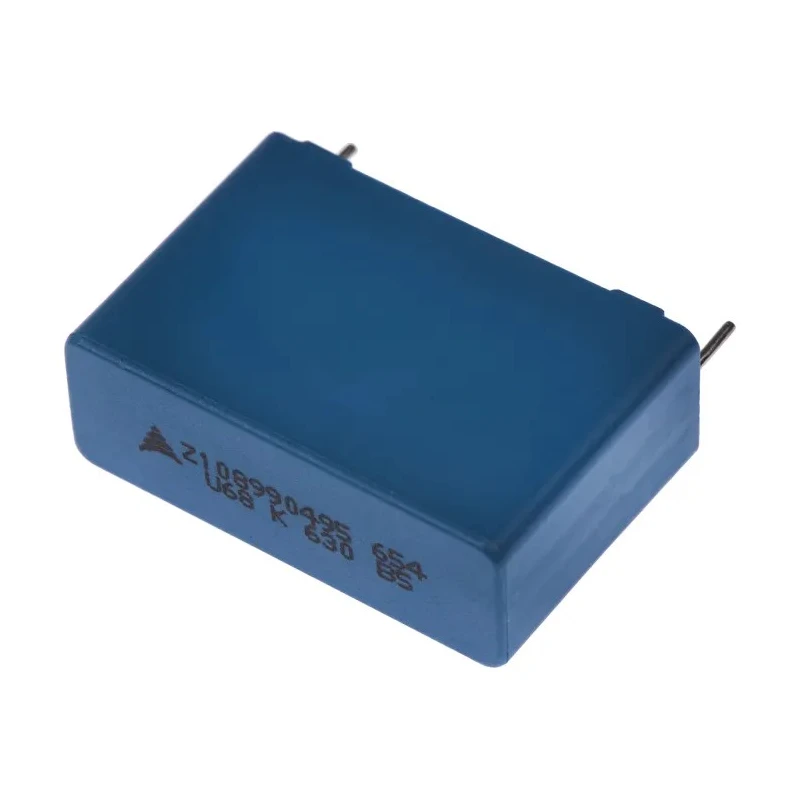

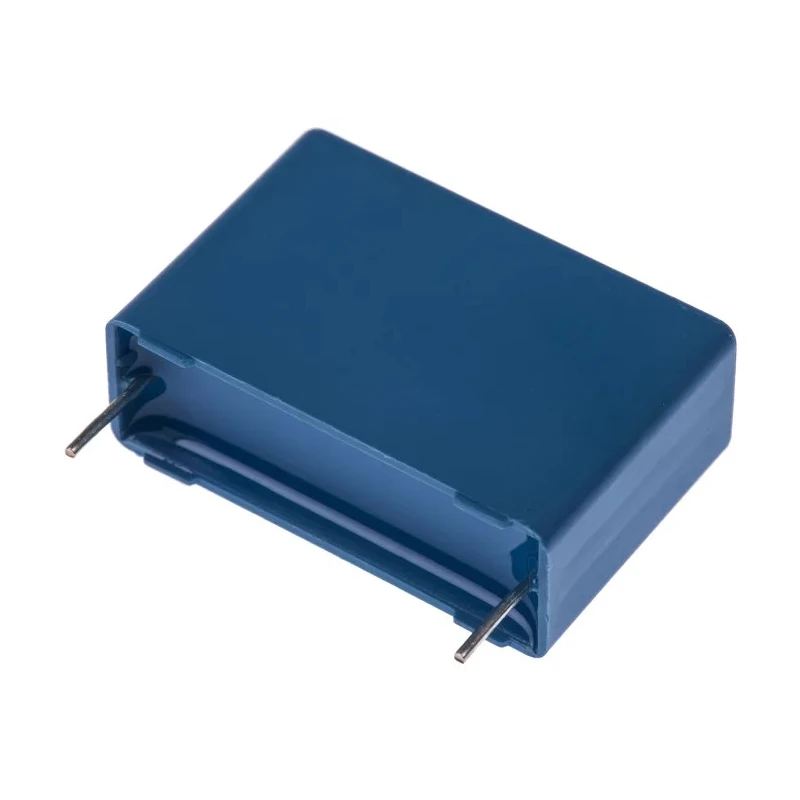

TDK Film Capacitor 680 nF 250V AC 630V DC Through Hole, 2 Pins, 27.5mm Lead Pitch, 100°C Maximum Operating B32654A6684K000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 680 nF 250V AC 630V DC Through Hole, 2 Pins, 27.5mm Lead Pitch, 100°C Maximum Operating B32654A6684K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	21mm
Length	31.5mm
Model	B32654A6684K000
Width	11mm
Mount Type	Through Hole
Series	B32652
Maximum Operating Temperature	100°C
Capacitance	680nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	250V ac
Rated DC Voltage	630V dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

Constructed using wound capacitor technology with internal series connection for voltages ≥1250 V DC.
Encapsulated in a flame retardant plastic case to UL 94 V-0 with epoxy resin sealing.
Features high pulse strength and high contact reliability.
Compact dimensions allow efficient PCB layout.
Typical applications include TV S-correction circuits, TV flyback units, and electronic ballast circuits.
Lead pitch is 27.5 mm with 2 pins and lead diameter of 0.8 mm.
Maximum operating temperature is 100°C suitable for automotive standards AEC-Q200 Rev D.
Reliable compliance with UL and RoHS standards.

Product Description

TDK B32654A6684K000 Film Capacitor is a high-quality passive electronic component designed for reliable performance in industrial, automotive, and consumer electronics applications. This capacitor has a capacitance of 680 nF, rated for 250V AC and 630V DC operation, making it suitable for a wide range of AC and DC circuits requiring stable capacitance.

The capacitor uses wound capacitor technology with an internal series connection providing a voltage rating of 1250V DC or higher. It is encapsulated within a flame retardant plastic case compliant with UL 94 V-0 standards with epoxy resin sealing, ensuring durability and safety in demanding environments.

This component is tailored for through-hole mounting with a 2-pin configuration and a lead pitch of 27.5 mm, facilitating easy installation on printed circuit boards. The lead diameter measures 0.8 mm, and the capacitor's compact size features dimensions of approximately 31.5 mm length, 21 mm height, and 11 mm width.

Designed to operate at temperatures up to 100°C, it meets the automotive standard AEC-Q200 Rev D, supporting usage in automotive electronics. It is also compliant with UL and RoHS standards, underscoring its quality and environmental safety.

Key features include high pulse strength and excellent contact reliability, suitable for applications such as TV S-correction, TV flyback circuits, and electronic ballast circuits. Its rugged plastic casing with epoxy sealing ensures protection against environmental factors and mechanical stress.

Constructed using wound capacitor technology with high voltage internal series connection. Encapsulated with flame retardant plastic to UL 94 V-0. Rated for 250V AC and 630V DC operation. Designed for through-hole mounting with 27.5 mm lead pitch.

High pulse strength and contact reliability. Automotive standard AEC-Q200 Rev D compliant with max 100°C operating temperature. Applications include TV S-correction, flyback circuits, and electronic ballasts. Compliant with UL and RoHS standards.

This film capacitor is an essential component for electronic engineers and technicians seeking reliable, durable capacitors for various electronics projects and industrial equipment manufacturing.
