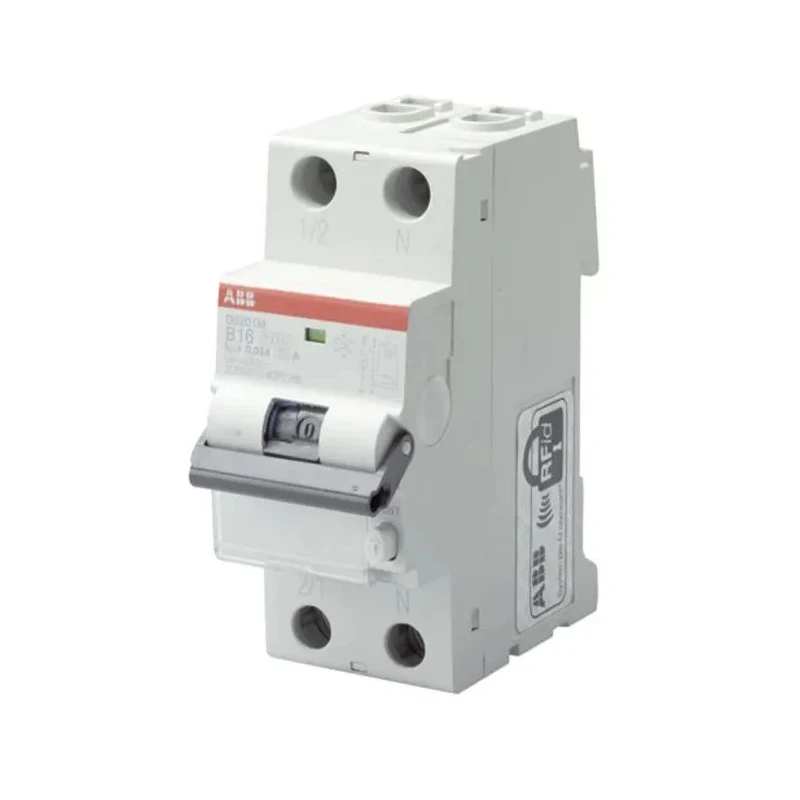

ABB Residual Current Circuit Breaker with Overload Protection 20A Current Rating 1-Pole 30 mA Trip 2CSR245041R1204



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	DS201
Brand	ABB
Height	85mm
Model	2CSR245041R1204
Depth	85mm
Width	69mm
Mount Type	DIN Rail
Current Rating	20A
Series	DS201
Breaking Capacity	4.5kA
Number of Poles	1
Rated AC Voltage	230V ac
Tripping Characteristics	Type C
Trip Sensitivity	30mA
Earth Leakage Protection Type	AC

Key Features

Designed for protection against overload and short-circuit currents.
Provides earth leakage protection with 30 mA trip sensitivity.
Type C tripping characteristic suitable for general applications.
Compact 1-pole device mounts easily on DIN rail.
Complies with IEC 61009-2-1 and EN 61009-2-1 standards.
Breaking capacity of 4.5 kA ensures effective fault interruption.
Suitable for installations requiring neutral on the left side.
Manufactured in Italy ensuring high quality and compliance.

Product Description

ABB 2CSR245041R1204 Residual Current Circuit Breaker with Overload Protection is a DS201 series device designed for protection of end user single-phase circuits against overload, short-circuit currents, and earth leakage.

This 1-pole plus neutral (1P+N) Residual Current Circuit Breaker combines current rating of 20A with sensitive earth leakage protection of 30 mA. Its trip characteristic is Type C, which is commonly used for general purpose electrical protection.

The device is compact, two modules wide, and mounts conveniently on DIN rails, allowing easy integration into distribution boards. It features a breaking capacity of 4.5 kA, capable of interrupting fault currents efficiently. Dimensions include 85 mm height, 85 mm depth, and 69 mm width, ensuring a space-saving installation footprint.

Manufactured in Italy, this RCBO meets rigorous IEC 61009-2-1 and EN 61009-2-1 standards, guaranteeing safety and performance for residential, commercial, and light industrial applications. The device supports earth leakage protection of AC type currents and is suitable where the neutral conductor is on the left.

Designed for protection against overload and short-circuit currents. Provides earth leakage protection with 30 mA trip sensitivity. Type C tripping characteristic suitable for various load types. Compact 1-pole device mounts easily on DIN rail systems.

Breaking capacity of 4.5 kA ensures safe disconnection in faults. Complies with international IEC and EN standards for circuit breakers. Dimensions: 85mm height, 85mm depth, and 69mm width. Ideal for residential and commercial electrical installations.

Manufactured in Italy adhering to stringent quality controls.

Ideal for electrical distribution safety in industrial, commercial, and residential environments, the ABB DS201 series RCBO is a reliable choice for circuit protection, earth leakage prevention, and overload control. Browse EnvMart for more ABB electrical safety devices and circuit protection solutions.
