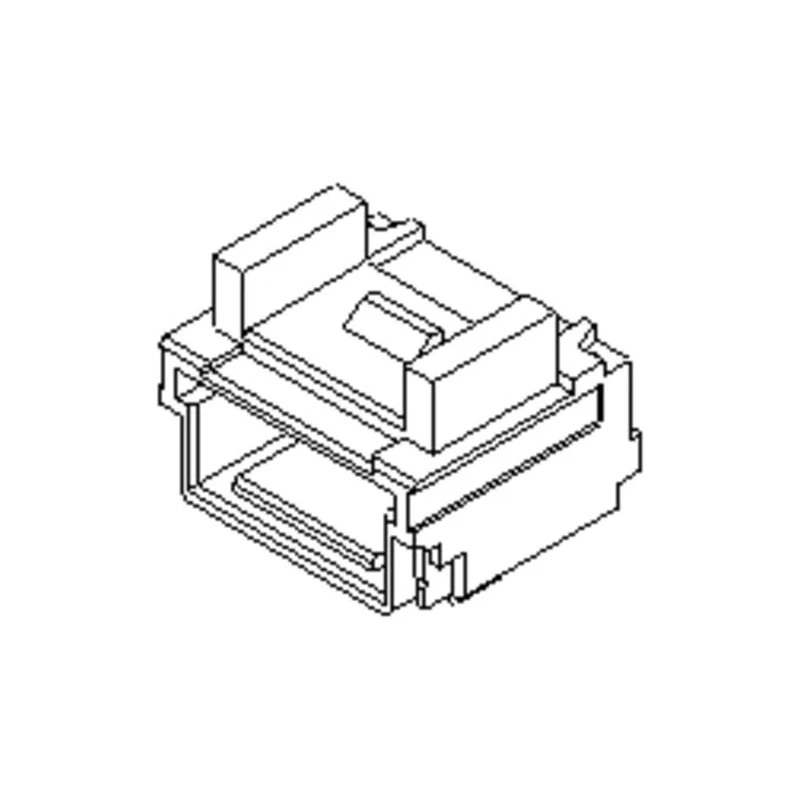

Molex 501953 Series Right Angle Surface PCB Socket, 3-Contact, 1 Row, 1 mm Pitch, 12A, 50V, Nylon Housing 501953-0307
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 12A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | 501953 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Header |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector System | Signal, Wire-to-Board |
Key Features
- Constructed with durable nylon housing ensuring mechanical strength.
- Supports a maximum current rating of 12A and voltage rating of 50V.
- Features bronze male contacts plated with tin for reliable conductivity.
- Designed for surface mount applications with right angle orientation.
- Operates reliably in temperatures from -40°C to 105°C.
- Connector system supports signal wire-to-board connections.
- Part of Molex 501953 series with an outer positive lock mechanism for secure mating.
- Compact 1.00 mm pitch suitable for high-density PCB layouts.
Product Description
Molex 501953-0307 right angle surface PCB socket is a precision engineered electronic component designed for professional and industrial applications requiring reliable wire-to-board signal connections. This PCB socket features a 3-contact single row configuration with a compact 1 mm pitch, ideal for tight spaced circuits.
The housing is made from robust nylon material that provides excellent mechanical strength and electrical insulation. It is surface mounted with a right angle orientation to facilitate optimal PCB layout designs where space efficiency is critical. The male contacts are crafted from high-quality bronze and plated with 1.01 μm of tin to ensure excellent conductivity and corrosion resistance.
This PCB socket supports a current rating of 12A and a voltage rating of 50V, making it suitable for moderate power signal applications. It is rated for operation within a temperature range from -40°C up to 105°C, ensuring dependable performance across varying environmental conditions.
Part of the Molex 501953 product series, this socket is equipped with an outer positive lock to secure the connection and prevent accidental disconnections during use. Manufactured in Japan under stringent quality controls, this product is well suited for electronic manufacturing, laboratory equipment, industrial automation, and other demanding electrical engineering uses.
Applications include signal transmission in telecommunications, computer equipment, instrumentation, and power supply units. Compatible with PCB assemblies requiring solder termination and wire-to-board interfacing.
Durable nylon housing for mechanical strength and insulation. Right angle orientation for space-saving PCB design. 3-contact single row configuration with 1 mm pitch. Bronze male contacts with 1.01 μm tin plating for conductivity.
Rated 12A current and 50V voltage for reliable signal transmission. Operating temperature range from -40°C to 105°C for wide adaptability. Features outer positive lock for secure electrical connection. Manufactured in Japan ensuring high quality standards.
Explore more reliable PCB Sockets and connectors at EnvMart for all your high-performance electronic component needs.
