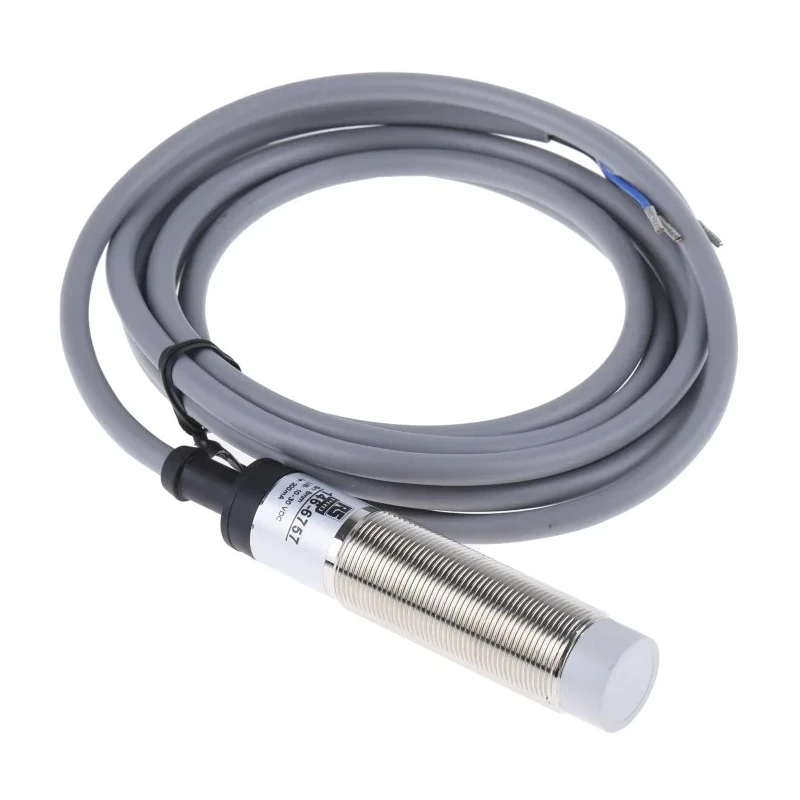

RS PRO Threaded Barrel Capacitive Proximity Sensor 8 mm Detection Range, M18 x 1 Thread, PNP Output 200mA 30V 146-6757
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Length | 70mm |
| Model | 146-6757 |
| IP Rating | IP67 |
| Mount Type | Non-Flush |
| Housing Material | Copper Nickel |
| Output type | PNP |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 50Hz |
| Standards/Approvals | CE, cUL |
| Maximum AC Voltage | 1000V ac |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metallic and Non-Metallic Objects |
| Maximum Detection | 8mm |
Key Features
- The sensor detects objects up to 8 mm range with capacitive sensing technology.
- It has robust copper nickel alloy housing for durability and corrosion resistance.
- Non-flush mounting type allows flexible installation in different applications.
- Supports a maximum supply voltage of 30 V DC and maximum AC voltage of 1000 V AC.
- Outputs a PNP signal with a switching current rating of 200 mA and frequency of up to 50 Hz.
- Pre-cabled type terminal simplifies connectivity and wiring tasks.
- Operates across a temperature range of -25°C to 70°C.
- Features reverse polarity and short circuit overload protection for enhanced safety.
Product Description
RS PRO 146-6757 Threaded Barrel Capacitive Proximity Sensor offers precise, non-contact detection for metallic and non-metallic objects with an 8 mm sensing range. Its robust M18 x 1 threaded barrel configuration and IP67 rated copper-nickel housing provide durable protection against dust and temporary water immersion, ideal for harsh industrial environments.
This sensor delivers a reliable PNP output signal, capable of handling 200 mA switching current and operating at frequencies up to 50 Hz. With a maximum supply voltage of 30 V DC and capable of withstanding 1000 V AC, it offers versatility for various automation and control applications.
The capacitive sensor technology allows detection of liquids and solids, useful in liquid level measurement, pressure sensing, and humidity monitoring. Its non-flush mount style and pre-cabled terminal type simplify installation and electrical connections.
Designed for industrial, manufacturing, and automation use, this sensor is built for longevity with reverse polarity and short circuit overload protection. The device meets CE and cUL safety standards, assuring compliance and reliability.
Operating temperatures from -25°C up to 70°C ensure performance in diverse working conditions. The 70 mm length makes it suitable for integration in tight or compact assemblies. The sensor detects objects up to 8 mm with capacitive sensing.
Durable copper nickel alloy housing resists corrosion. IP67 rated for dust and water protection. PNP output with 200 mA switching current. Pre-cabled terminal for easy connection. Non-flush mounting style for flexible installation.
Reverse polarity and short circuit overload protection. CE and cUL approved for safety compliance. Operating temperature range: -25°C to 70°C. Compact 70 mm length suitable for constrained spaces.
This RS PRO Capacitive Proximity Sensor is well-suited for automation, manufacturing machinery, control systems, and industrial process monitoring. Explore further sensor options on EnvMart to find complementary products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor has a detection range of up to 8 mm, allowing it to detect both metallic and non-metallic objects.
It provides a PNP output signal with a switching current rating of 200 mA.
The maximum supply voltage for this sensor is 30 V DC.
This sensor can detect both metallic and non-metallic objects, making it versatile for various applications.
It operates within a temperature range of -25°C to 70°C, suitable for diverse working conditions.
The sensor has a length of 70 mm and features a threaded barrel design with an M18 x 1 thread size.
Yes, it has an IP67 rating, providing protection against dust and temporary water immersion, making it suitable for outdoor applications.
It features a pre-cabled terminal type, which simplifies connectivity and wiring tasks during installation.
This model meets CE and cUL safety standards, ensuring compliance and reliability for industrial applications.
The sensor can withstand a maximum AC voltage of 1000 V AC, providing versatility for various applications.
It uses a non-flush mounting style, allowing for flexible installation in different applications.
It includes reverse polarity and short circuit overload protection for enhanced safety during operation.
