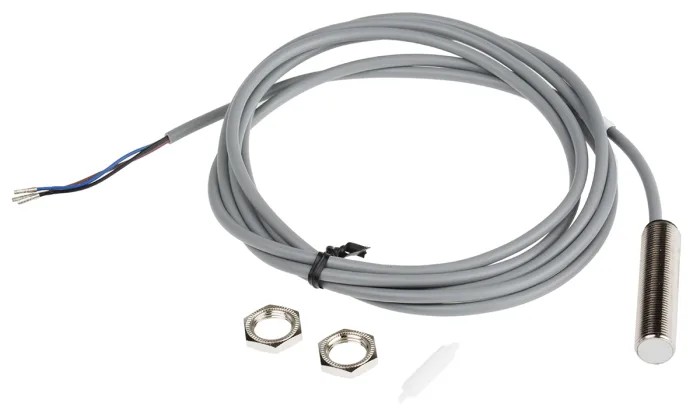

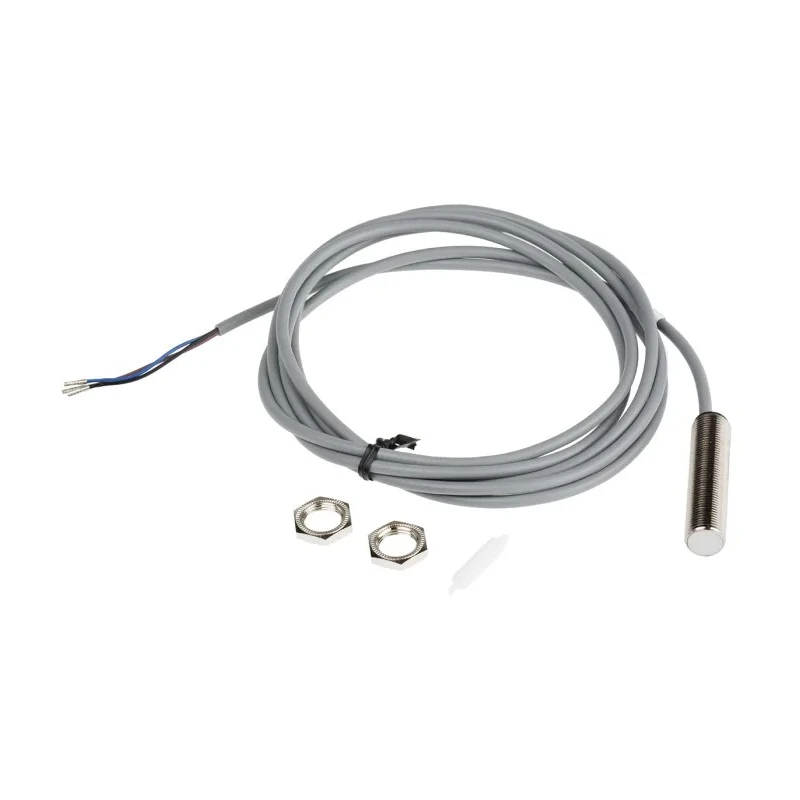

RS PRO Threaded Barrel Capacitive Proximity Sensor 2 mm, M12 x 1, PNP Output, 200mA, 30V DC, 1000V AC 146-6752

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Threaded Barrel Capacitive Proximity Sensor 2 mm, M12 x 1, PNP Output, 200mA, 30V DC, 1000V AC 146-6752

Name: RS PRO Threaded Barrel Capacitive Proximity Sensor 2 mm, M12 x 1, PNP Output, 200mA, 30V DC, 1000V AC 146-6752
Brand: RS PRO
SKU: 398171
Price: 115.63 USD
Availability: InStock



Category Capacitive Proximity Sensor Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Length	52mm
Model	146-6752
IP Rating	IP67
Mount Type	Flush
Housing Material	Copper Nickel
Output type	PNP
Maximum Operating Temperature	70°C
Thread Size	M12 x 1
Minimum Operating Temperature	-25°C
Switching Current	200mA
Terminal type	Pre-Cabled
Body Style	Threaded Barrel
Maximum dc Voltage	30V dc
Shielding	Shielded
Maximum Switching Frequency	50Hz
Standards/Approvals	CE
Maximum AC Voltage	1000V ac
Maximum Supply Voltage	30V
Materials Detected	Metallic and Non-Metallic Objects
Maximum Detection	2mm

Key Features

This sensor features a PNP output type with a maximum switching current of 200mA.
Maximum supply voltage is rated at 30V DC and maximum AC voltage at 1000V AC.
It has a rugged copper nickel housing with an IP67 rating for harsh environmental protection.
Designed for flush mount installation with a length of 52 mm and pre-cabled terminal type.
The sensor can detect both metallic and non-metallic objects through container walls.
Suitable for operating temperatures from -25°C to 70°C.
It offers shielded protection and a maximum switching frequency of 50Hz.
Complies with CE standards and is suitable for industrial automation and control applications.

Product Description

RS PRO 146-6752 is a Threaded Barrel Capacitive Proximity Sensor featuring M12 x 1 thread size with a length of 52 mm. It provides reliable detection of metallic and non-metallic materials with a maximum sensing distance of 2 mm. This sensor uses PNP output with a 200mA maximum switching current and operates with a maximum supply voltage of 30V DC and withstands up to 1000V AC voltage.

Housed in durable copper nickel material, the sensor offers excellent protection with an IP67 rating, making it suitable for use in demanding industrial environments. Its flush mount design and pre-cabled terminals simplify installation.

Operating temperature ranges from -25°C to 70°C ensure versatility in various applications including automation, storage, and livestock breeding industries. The sensor features shielded construction and complies with CE standards ensuring quality and reliability.

This capacitive proximity sensor is ideal for detecting objects inside containers through non-metal walls and can be widely used in factory automation, material handling, and fluid level detection.

This sensor features a PNP output type with a maximum switching current of 200mA. Maximum supply voltage is rated at 30V DC and maximum AC voltage at 1000V AC. It has a rugged copper nickel housing with an IP67 rating for harsh environmental protection.

Designed for flush mount installation with a length of 52 mm and pre-cabled terminal type. The sensor can detect both metallic and non-metallic objects through container walls. Suitable for operating temperatures from -25°C to 70°C.

It offers shielded protection and a maximum switching frequency of 50Hz. Complies with CE standards and is suitable for industrial automation and control applications. Explore the complete RS PRO Capacitive Proximity Sensor range and other sensor solutions at EnvMart for all your industrial automation needs.
