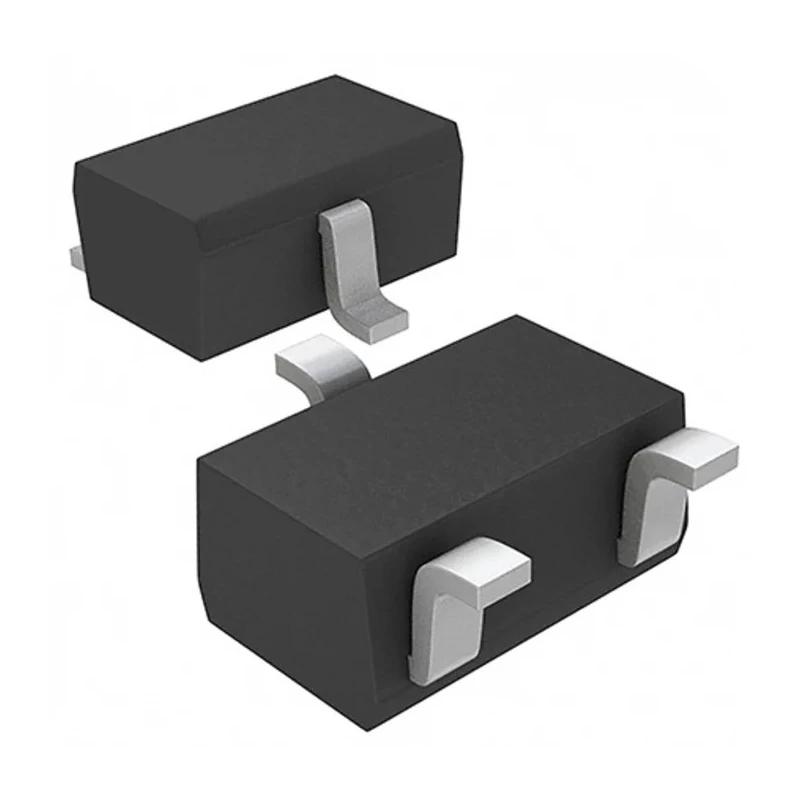

DiodesZetex Through Hole Hall Effect Sensor Unipolar 3-Pin SOT-23W 3 V to 28 V AH3362Q-SA-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Response time | 3.75μs |
| Height | 1mm |
| Length | 3mm |
| Model | AH3362Q-SA-7 |
| Technology | Chopper Stabilised |
| Sensor Type | Hall Effect Sensors |
| Width | 1.4mm |
| Mount Type | Through Hole |
| Series | AH3362Q |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23W |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, Pb-Free |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 28V |
| Minimum Supply Voltage | 3V |
| Supply Current | 4mA |
| Magnetic Type | Unipolar |
| Maximum Frequency Response | 800kHz |
Key Features
- Unipolar Hall Effect sensor designed for non-contact magnetic sensing applications.
- Compact through-hole mounting package SOT-23W with 3 pins for easy PCB assembly.
- Wide operating voltage range from 3 V minimum to 28 V maximum.
- High maximum frequency response of 800 kHz ensuring fast sensor output.
- Operating temperature range from -40°C to 150°C for robust industrial use.
- Supply current of 4 mA providing low power consumption.
- Response time of 3.75 microseconds supports rapid magnetic field detection.
- Compliance with RoHS and Pb-Free standards ensuring environmental safety.
Product Description
DiodesZetex AH3362Q-SA-7 Through Hole Hall Effect Sensor is a high-performance unipolar magnetic sensor packaged in a compact 3-pin SOT-23W through-hole mount. Designed with chopper stabilized technology, it provides reliable and stable linear output for position and proximity sensing within industrial, automotive, and electronic applications.
This sensor operates over a wide supply voltage range of 3 V to 28 V, making it versatile for low to high voltage circuits. It features a fast response time of 3.75 microseconds and a maximum frequency response of 800 kHz, allowing accurate detection of rapid magnetic field changes. The device maintains functionality from -40°C to 150°C, supporting harsh environmental conditions.
Compliant with RoHS and Pb-Free standards, the AH3362Q-SA-7 sensor ensures adherence to environmental and safety regulations. Its automotive standard AEC-Q100 certification further assures quality and reliability for automotive system integration.
The sensor’s compact dimensions of 3 mm length, 1.4 mm width, and 1 mm height, combined with a low supply current of 4 mA, contribute to minimal power consumption and easy PCB footprint in embedded designs.
Unipolar magnetic type for non-contact switching and proximity sensing. Chopper stabilized technology for low offset and high sensitivity. Through-hole SOT-23W package with a minimum pin count of 3. Wide temperature and voltage operating ranges suitable for board-level embedded applications.
Automotive certified for use in demanding vehicle electrical systems.
Typical use cases include industrial automation, motor control systems, position sensing, proximity detection, and automotive electronic modules. The AH3362Q-SA-7 offers reliable and precise magnetic sensing in a durable, compact form factor.
EnvMart offers this DiodesZetex Hall Effect Sensor model AH3362Q-SA-7 for engineers and professionals seeking trustworthy, high-quality sensor ICs for electronics design and systems integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a supply voltage range from 3 V to 28 V.
The maximum frequency response is 800 kHz, allowing for fast sensor output.
It has a response time of 3.75 microseconds, which supports rapid magnetic field detection.
The dimensions are 3 mm in length, 1.4 mm in width, and 1 mm in height.
The operating temperature range is from -40°C to 150°C, making it suitable for harsh environments.
It uses a through-hole mounting method, which is convenient for PCB assembly.
It is certified to the AEC-Q100 automotive standard, ensuring reliability for automotive systems.
The supply current is 4 mA, contributing to low power consumption.
It provides unipolar magnetic sensing for non-contact switching and proximity detection.
It complies with RoHS and Pb-Free standards, ensuring environmental safety.
This sensor utilizes chopper stabilized technology for low offset and high sensitivity.
It is suitable for industrial automation, motor control systems, position sensing, and automotive electronic modules.
