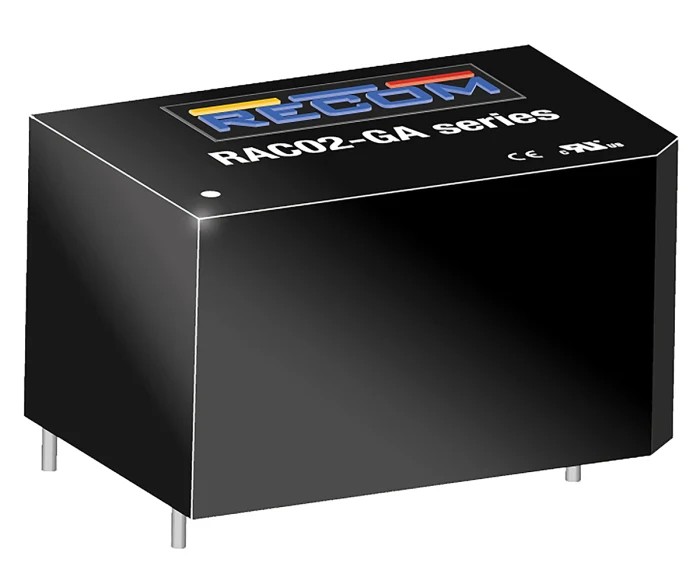

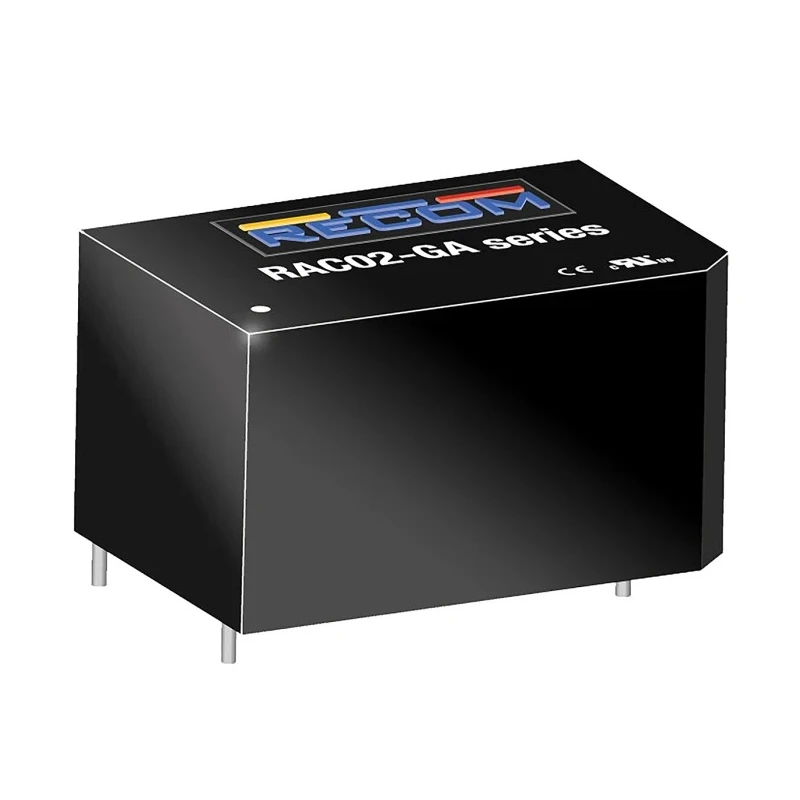

Recom 2W PCB Mount Encapsulated Single Output Regulated Switching Power Supply 12V DC 264V AC RAC02-12SGA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Recom |
| Power | 2W |
| Efficiency | 72% |
| Length | 33.7mm |
| Model | RAC02-12SGA |
| Depth | 19mm |
| Gross Weight | 12g |
| Width | 22.2mm |
| Mount Type | PCB |
| Series | RAC02-GA |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Standards/Approvals | EN 61000-4-3, CAN/CSA C22.2 No. 60950-1-07, EN 55022 Class A, EN 55024, EN 60950-1, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, RoHS, UL 60950-1 |
| Maximum Output Voltage | 12V dc |
| SMPS Output Current | 167mA |
| Minimum Input Voltage | 100V ac |
| Ultracompact low profile | H17xW22.2xD33.7 mm |
Key Features
- Compact encapsulated design with low profile dimensions H17xW22.2xD33.7 mm.
- Supports wide input voltage range from 100V to 264V AC.
- High efficiency of 72% with low 30mW standby power consumption.
- Operating temperature range from -25°C to 70°C with high operating temperature tolerance up to 85°C.
- Includes soft start and short circuit protection features.
- Meets multiple standards including EN 61000-4 series, EN 60950-1, UL 60950-1, and RoHS compliance.
- Isolation voltage rating of 3kVAC ensures safe operation in industrial environments.
- Output current of 167mA is optimized for low power electronics and microcontroller circuits.
Product Description
Recom RAC02-12SGA is a 2W PCB mount encapsulated single output regulated switching power supply designed for universal AC input voltage applications with output voltage of 12V DC. This power supply features a compact low profile form factor measuring just H17xW22.2xD33.7 mm, ideal for space-constrained industrial or electronic applications.
It supports a wide operating temperature range from -25°C to 70°C and can tolerate temperatures up to 85°C for reliable performance in demanding environments.
The high efficiency of 72% combined with low standby power consumption of 30 mW reduces energy losses, making it an energy-efficient solution for powering remote control receivers, clocks, microcontroller circuits, and other low power devices.
Protection features include a soft start to prevent inrush current and built-in short circuit protection for enhanced safety. The unit provides 3kVAC isolation which ensures electrical safety in industrial settings.
Recom RAC02-12SGA complies with a comprehensive set of international EMC and safety standards such as EN 61000-4-3, EN 55022 Class A, EN 60950-1, UL 60950-1 (pending), and RoHS directives, confirming its suitability for industrial, commercial, and laboratory use.
Compact and encapsulated PCB mounting design. Universal AC input voltage range up to 264V AC. High operating temperature tolerance up to 85°C. Soft start and short circuit protection included. 3kVAC isolation for safe operation.
Low standby power consumption for energy savings. Compliance with multiple safety and EMC standards. Ideal for powering low power electronic devices and microcontroller circuits. Lightweight and compact for easy system integration.
This power supply is suited for use in industrial machinery, electronic control panels, communication devices, laboratory instruments, and other applications requiring a reliable and efficient 12V DC power source.
Explore the broad range of switching power supplies available at EnvMart for diverse industrial and commercial power needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 12V DC.
It can handle a maximum input voltage of 264V AC.
The efficiency rating of this power supply is 72%.
The operating temperature range is from -25°C to 70°C, with a high tolerance up to 85°C.
The dimensions of this model are H17mm x W22.2mm x D33.7mm.
The output current is 167mA, optimized for low power electronics.
Yes, it includes soft start and short circuit protection features.
This model supports PCB mounting.
It complies with multiple standards including EN 61000-4-3, EN 60950-1, and RoHS.
The gross weight of this power supply is 12g.
It is suited for powering low power electronic devices, microcontroller circuits, and industrial machinery.
The isolation voltage rating is 3kVAC, ensuring safe operation in industrial environments.
